Sophos Central - SSO Configuration
This application has not been formally tested by Kelvin Zero Inc. It is provided solely as a reference guide. If you encounter any issues, kindly submit a ticket directly through the support desk.
This documentation provides a step-by-step guide to setting up Single Sign-On (SSO) for Sophos Central using Multi-Pass. SSO simplifies user authentication by allowing access to multiple applications with a single set of credentials. This integration enhances security and improves user experience across your organization.
To set up Multi-Pass with Sophos Central, ensure you meet the following requirements:
- Sophos Central admin rights
- MPAS Admin rights
- Make sure that all users intended to use SSO in Sophos Central are registered in your IdP and have the necessary permissions to access Sophos Central.
Important: Custom elements in URLs (like realm names) are case sensitive. Make sure to match the exact casing from your environment.
Sophos Central - SSO Configuration
Step 1 - Configure Sophos Central as the Service Provider (SP)
- Log into Sophos Central as a Super Admin.
- Navigate to General Settings > Verify Domains.

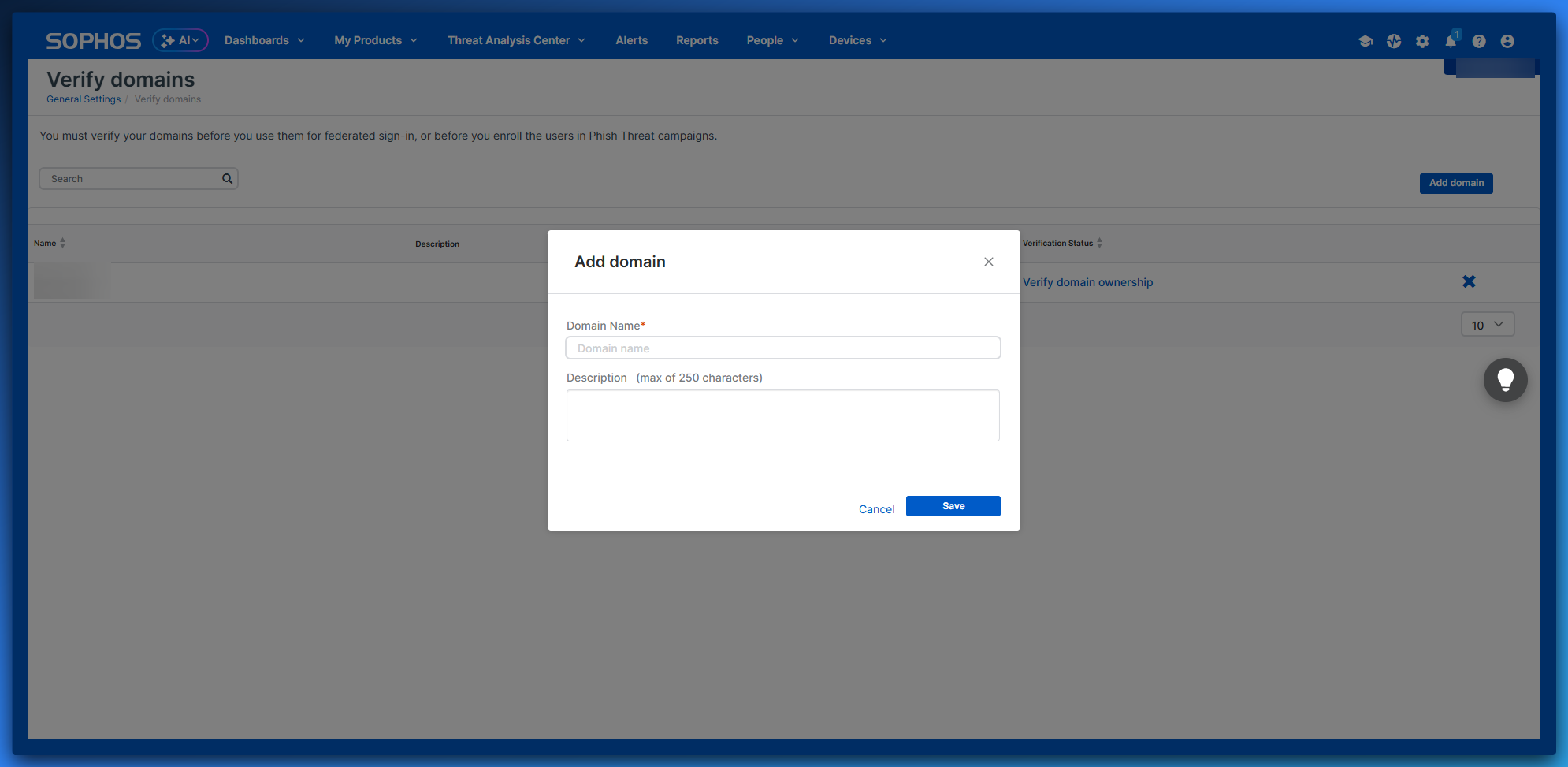

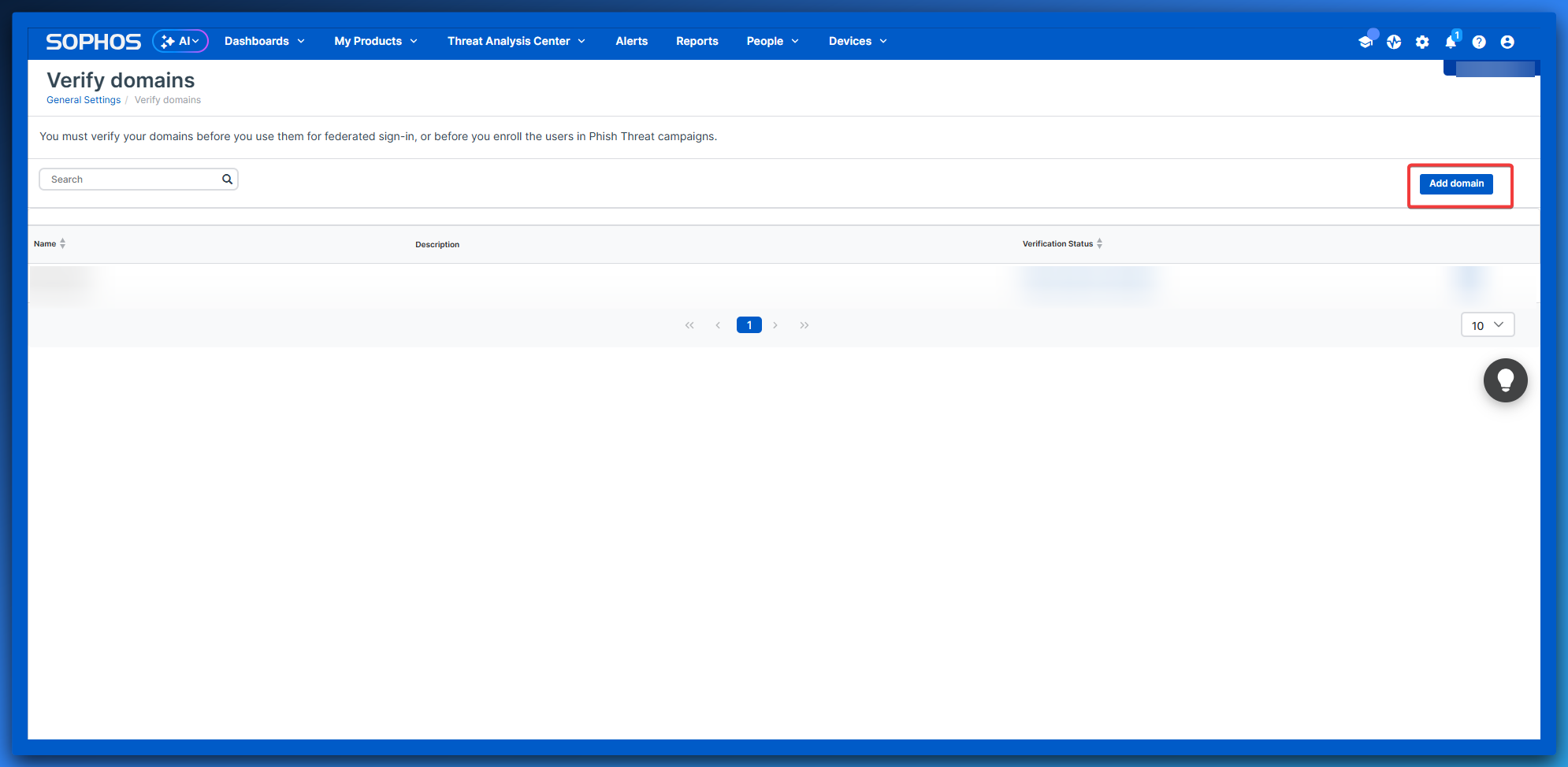

- In Federated Domains, click Add domain.
- Enter the correct domain and click Save.
- On the Verify Domain Ownership screen, select Copy beside the TXT Record.
- Log into your DNS Manager for the appropriate domain and create a TXT Record.
- Return to General Settings > Verify Domains.
- Under Verification Status, select Verify domain ownership.
- If successful, the domain will display as verified along with the last date of verification.
- Navigate back to General Settings > Federated Identity Providers.

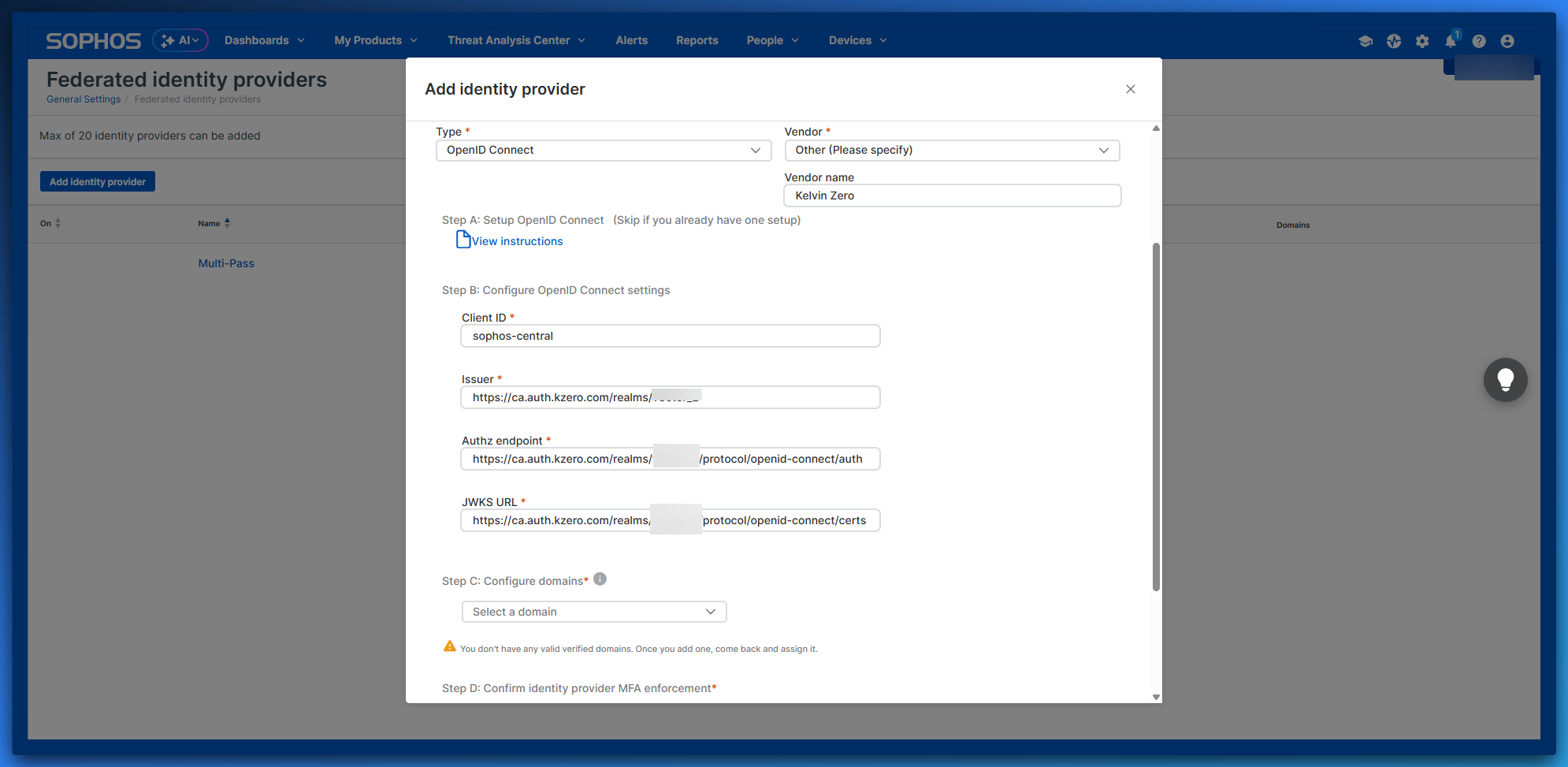

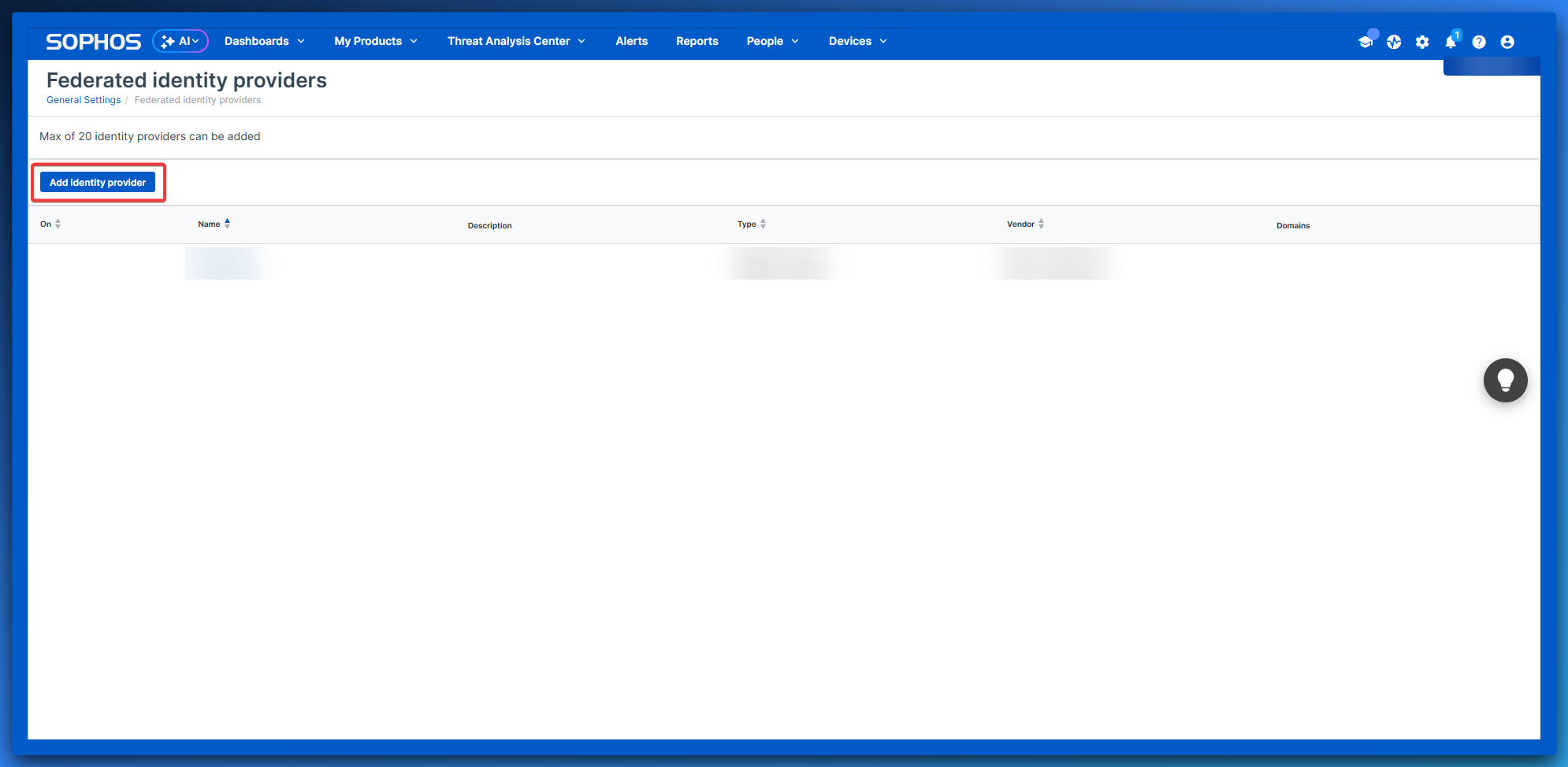

- Select Add Identity Provider and complete the fields below:
| Field | Value |
|---|---|
| Name | Multi-Pass |
| Type | OpenID Connect |
| Vendor | Other |
| Vendor Name | Multi-Pass |
| Client ID | sophos-central |
| Issuer | https://ca.auth.kzero.com/realms/<TENANT_NAME> |
| Authz endpoint | https://ca.auth.kzero.com/realms/<TENANT_NAME>/protocol/openid-connect/auth |
| JWKS URL | https://ca.auth.kzero.com/realms/<TENANT_NAME>/protocol/openid-connect/certs |
- Select your verified domain under Configure Domains.

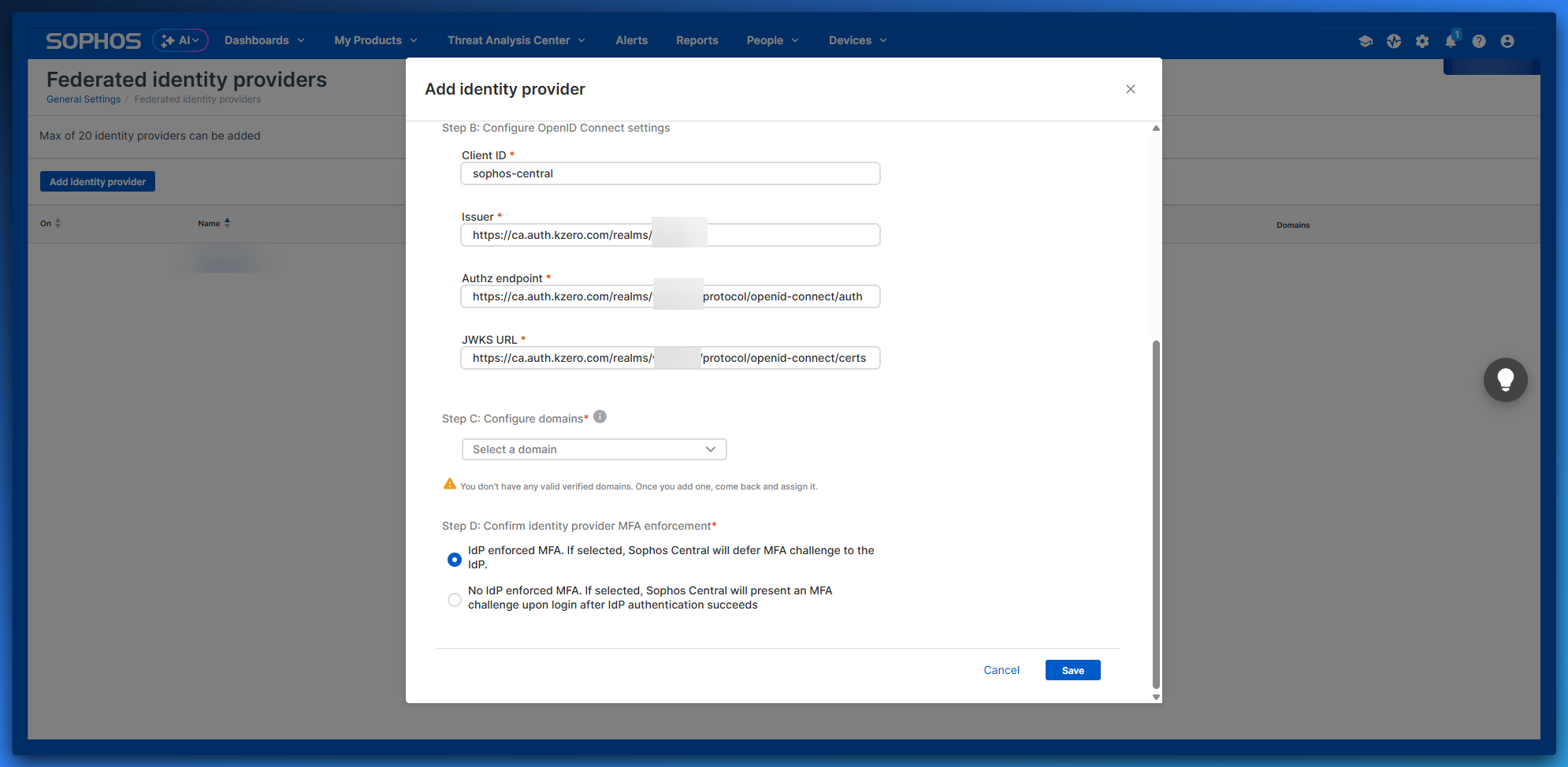

- Check IDP enforced MFA under Confirm Identity provider MFA enforcement.
- Click Save
Step 2 - Configure Multi-Pass as the Identity Provider (IdP)
- Open Multi-Pass Dashboard
- Select the correct tenant and go to Integrations, then click on Applications.

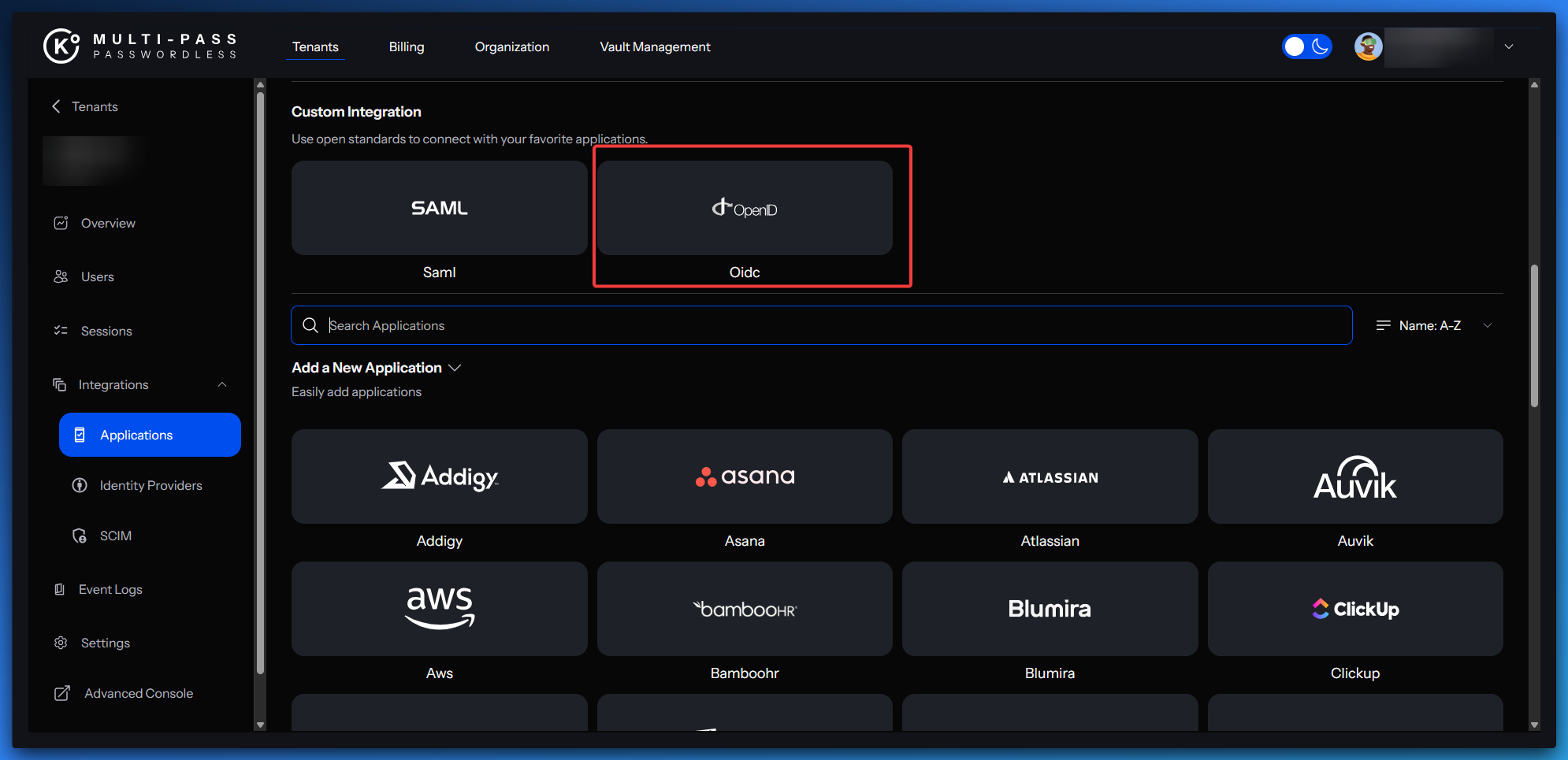

- Under the custom integration section, select OIDC.
- Complete the fields below:
| Field | Value |
|---|---|
| Client ID (=SP Entity ID) | sophos-central |
| Name | Sophos Central |
| Description | Sophos Central OIDC Integration |
| Client Authentication | ON |
| Home URL | https://central.sophos.com |
| Valid Redirect URIs | https://login.sophos.com/login/callback |
- Click Add Integration.

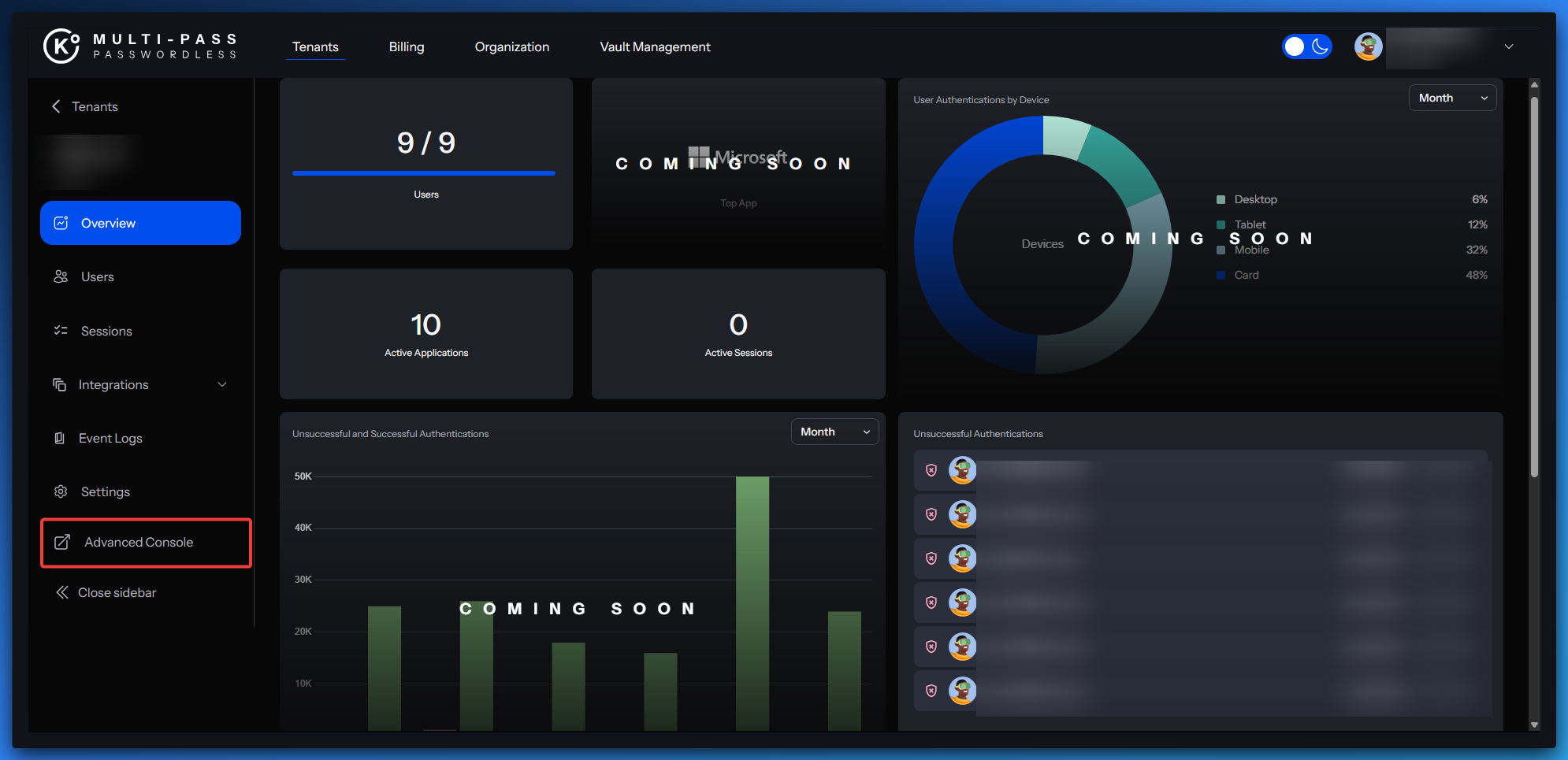

- Go to the Advanced Console by clicking on the right side of your screen.
- Click on Client and search for Sophos Central.
- Ensure all fields are populated as shown below:
General settings (Multi-Pass)
| Field | Value |
|---|---|
| Client ID | sophos-central |
| Name | Sophos Central |
| Description | Sophos Central SSO Integration |
| Always display in UI | ON |
Access settings (Multi-Pass)
| Field | Value |
|---|---|
| Root URL | https://central.sophos.com |
| Valid Redirect URIs (ACS) | https://central.sophos.com/* |
| Admin URL | https://central.sophos.com/ |
Capability Config
| Setting | Value |
|---|---|
| Client Authentication | ON |
| Authentication Flow | Standard & Implicit Flow |
