Mendix - SSO Configuration
This document has been tested and approved by Kelvin Zero Inc
This documentation provides a step-by-step guide to setting up Single Sign-On (SSO) for Mendix using Multi-Pass. SSO simplifies user authentication by allowing access to multiple applications with a single set of credentials. This integration enhances security and improves user experience across your organization.
To set up Multi-Pass with Mendix, ensure you meet the following requirements:
- Mendix admin rights
- MPAS Admin rights
- Make sure that all users intended to use SSO in Mendix are registered in your IdP and have the necessary permissions to access Mendix
Important: Custom elements in URLs (like realm names) are case sensitive. Make sure to match the exact casing from your environment.
- Mendix admin rights
- MPAS Admin rights
- Make sure that all users intended to use SSO in Mendix are registered in your IdP and have the necessary permissions to access Mendix
Important: Custom elements in URLs (like realm names) are case sensitive. Make sure to match the exact casing from your environment.
Mendix - SSO Configuration
Step 1 — Configure Multi-Pass as the Identity Provider (IdP)
- Open Multi-Pass Dashboard
- Select the correct tenant and go to Integrations, click on Applications

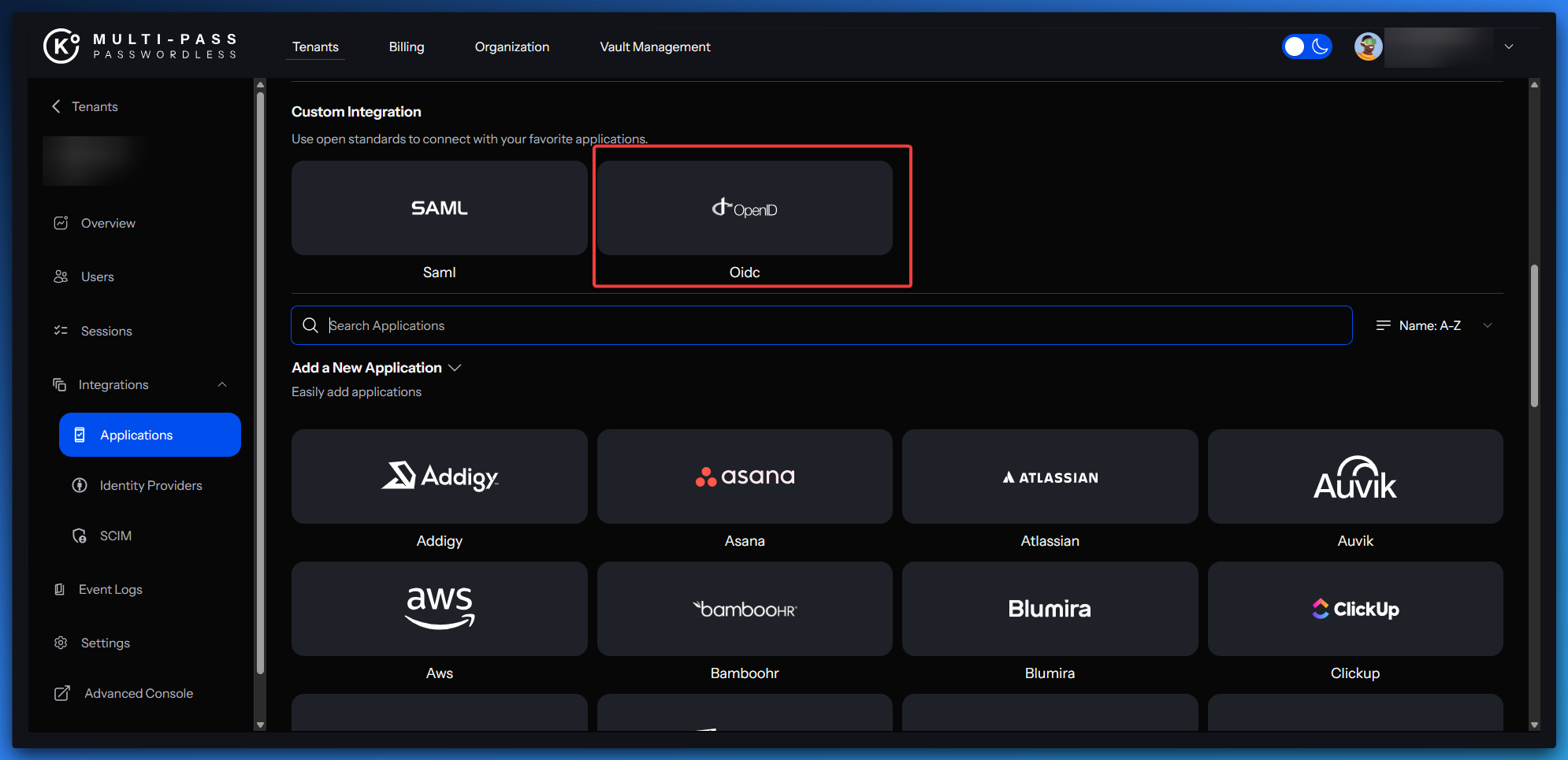

- Select in the custom integration section OIDC

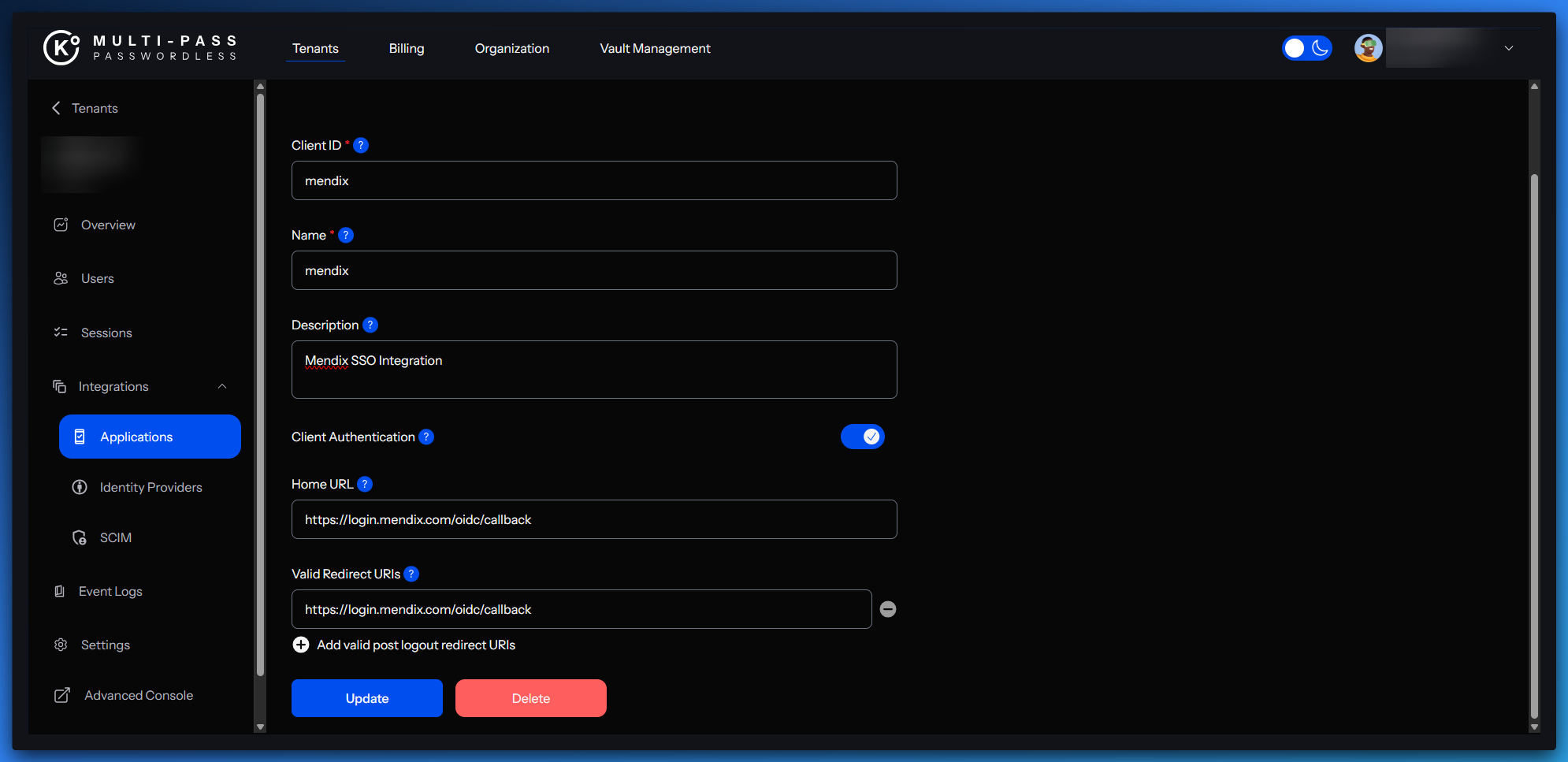

- Populate the fields based on the table below
| Field | Value |
|---|---|
| Client ID (=SP Entity ID) | mendix |
| Name | mendix |
| Description | Mendix OIDC Integration |
| Client Authentication | ON |
| Home URL | https://login.mendix.com |
| Valid Redirect URIs | https://login.mendix.com/oidc/callback |
- Select Add Integration

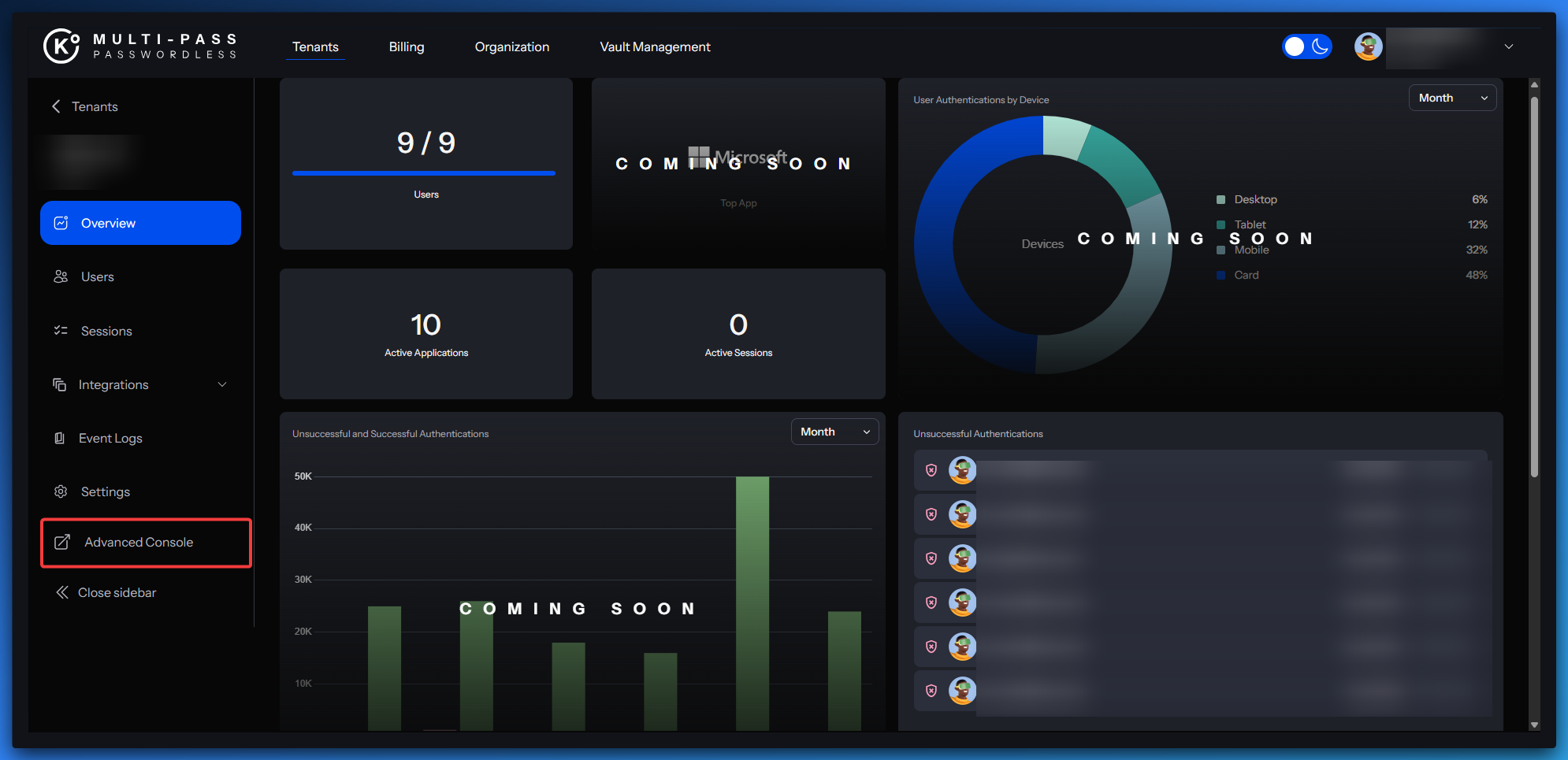

- Go to the advanced console by clicking on the right side of your screen
- Click on Client and search for Mendix
- Verify that the fields are populated as follows:
General settings (Multi-Pass)
| Field | Value |
|---|---|
| Client ID | mendix |
| Name | mendix |
| Description | Mendix SSO Integration |
| Always display in UI | OFF |
Access settings (Multi-Pass)
| Field | Value |
|---|---|
| Home URL | https://login.mendix.com |
| Valid Redirect URIs (ACS) | https://login.mendix.com/oidc/callback |
Capability Config
| Setting | Value |
|---|---|
| Client Authentication | ON |
| Authentication Flow | Standard Flow & Direct Access Grants |

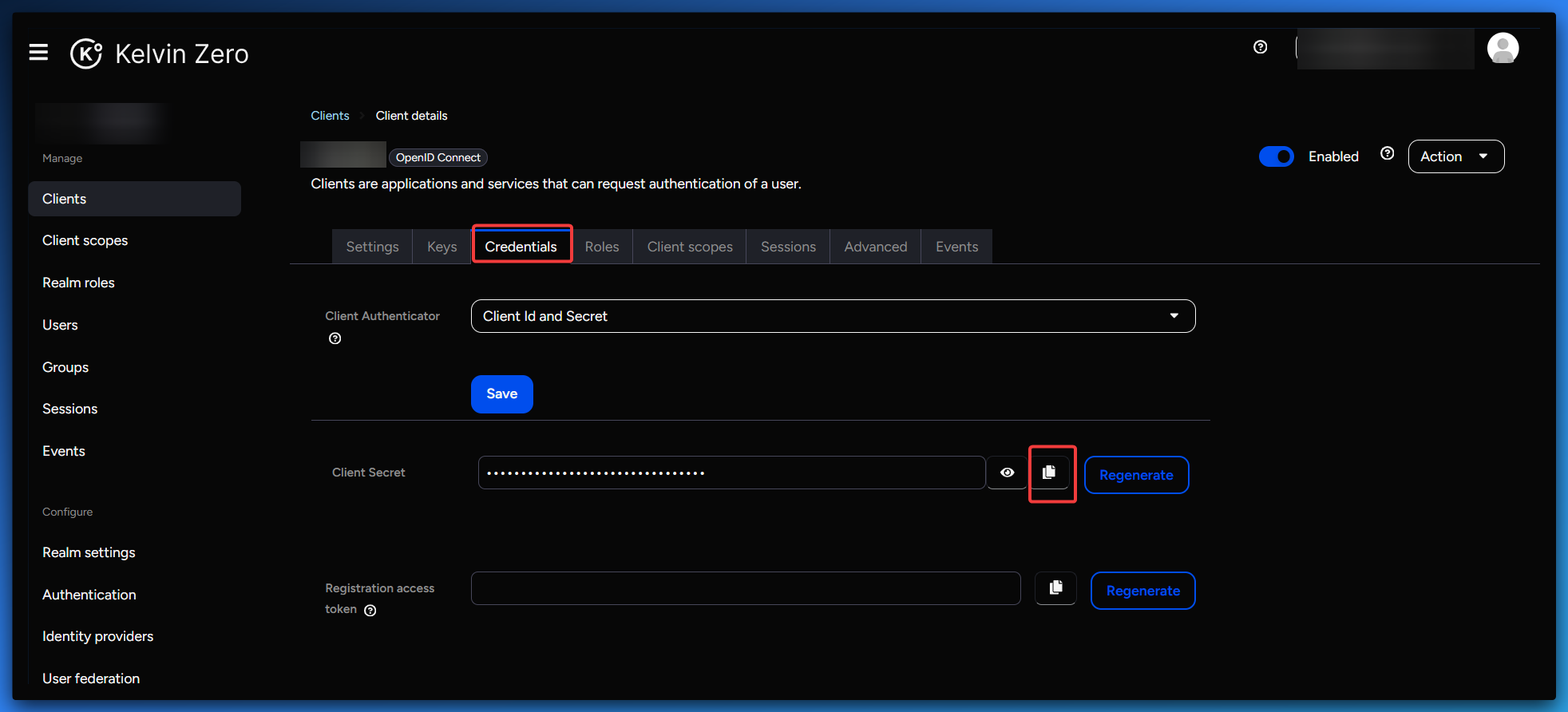

- Browse to the Credentials Tab and copy the Secret Key (to be used in Step 2)

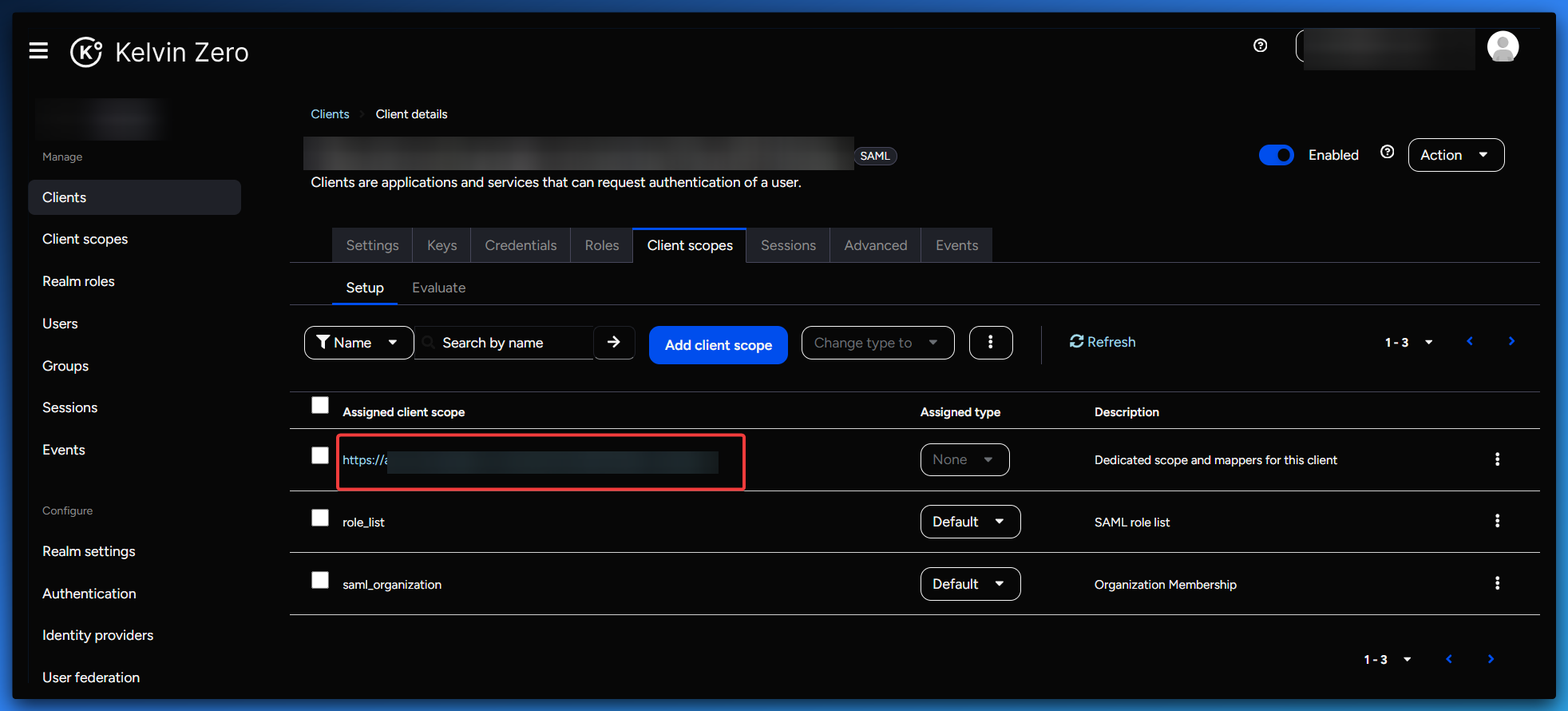

- Browse to the Client Scopes Tab and click on the first scope in the list
- Click Add Predefined Mapper and add the following mappers:
- given name
- username
- family name
Step 2 — Configure Mendix as the Service Provider (SP)
- Log into Mendix as an Administrator
- Navigate to the Mendix Control Center

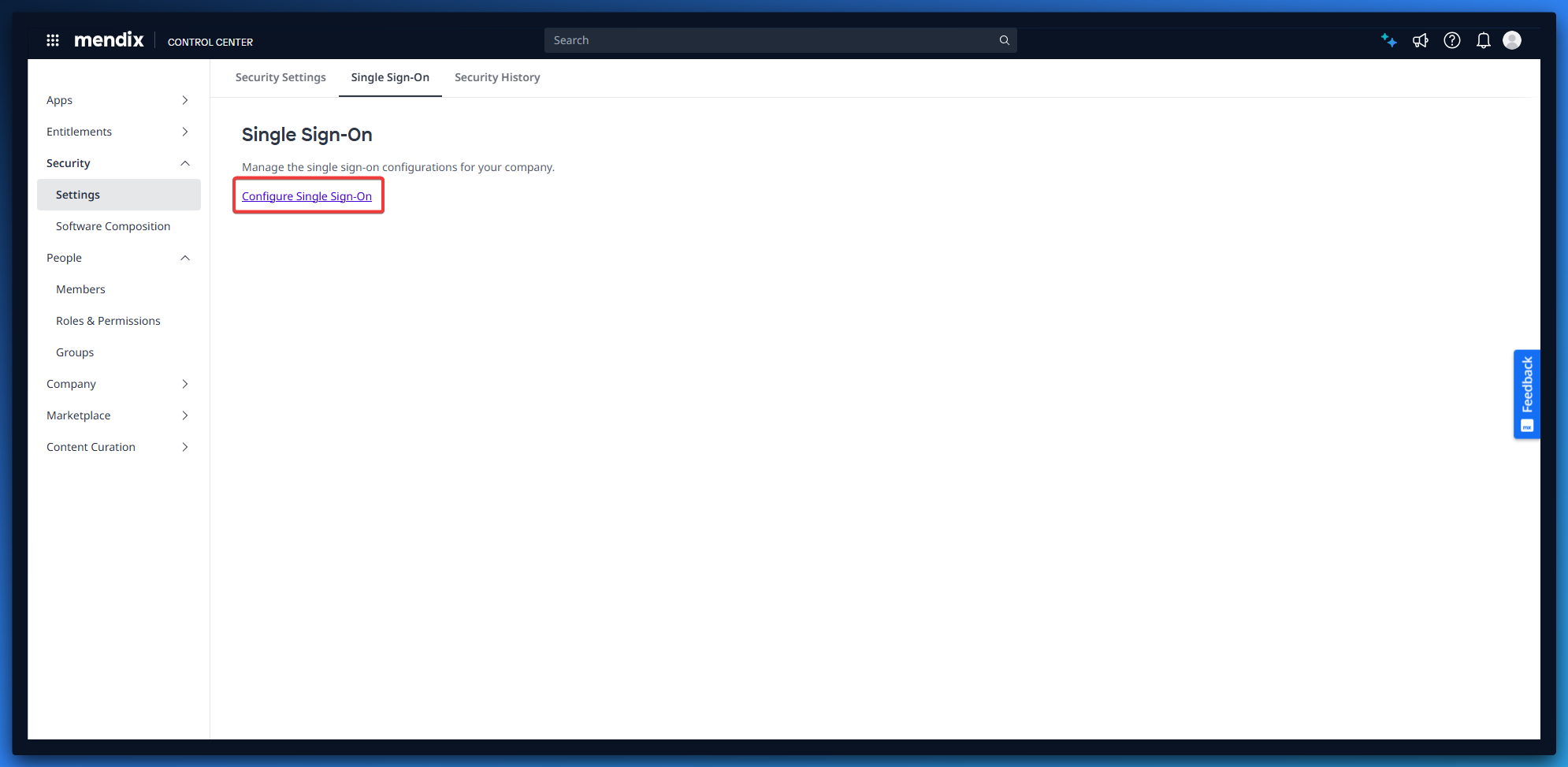

- Browse to Security > Settings > Single Sign-On
- Select Configure Single Sign-On

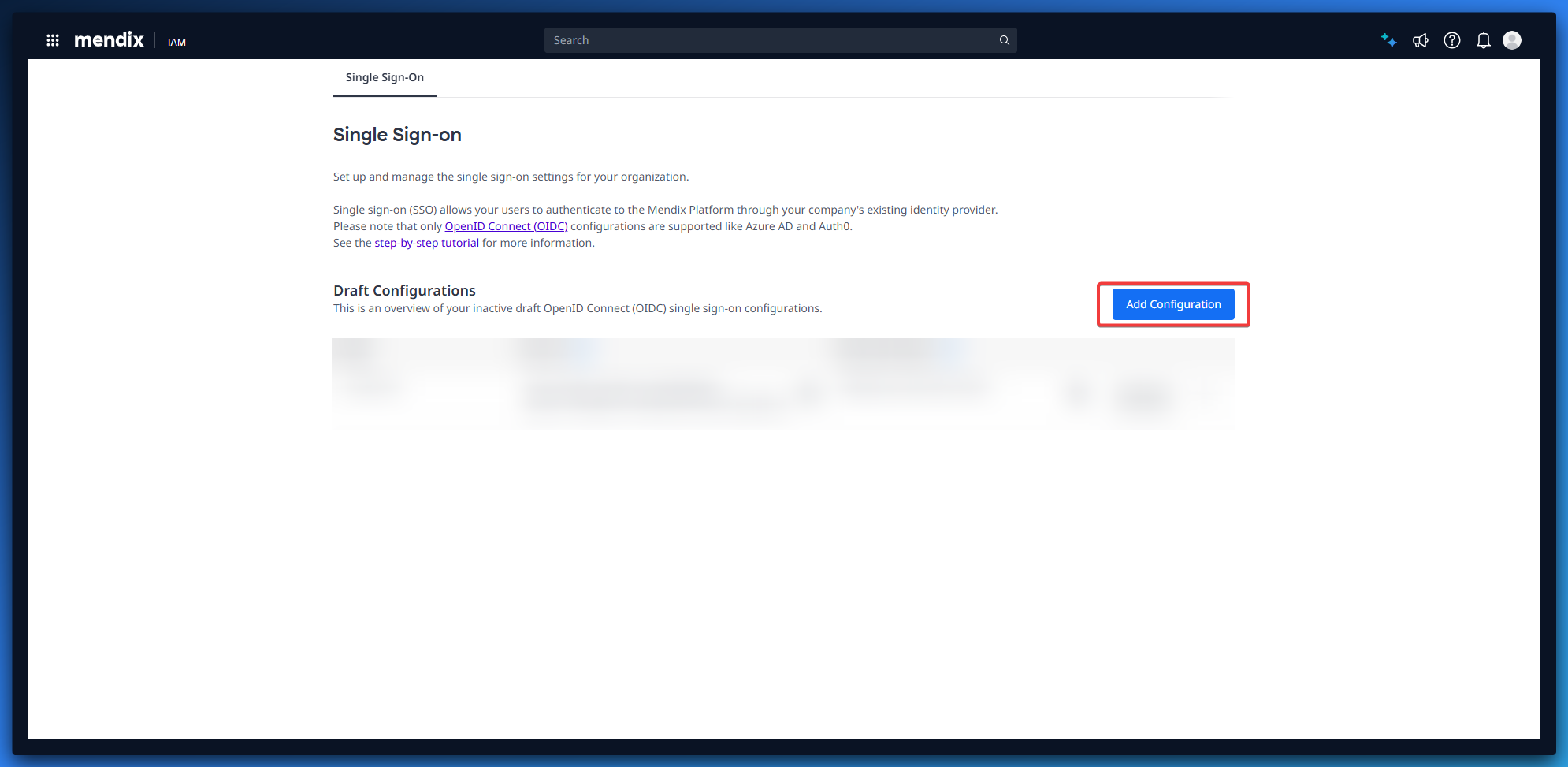

- Select Add Configuration
- Continue on the prompt About enabling Single Sign-On (BYO-IDP)

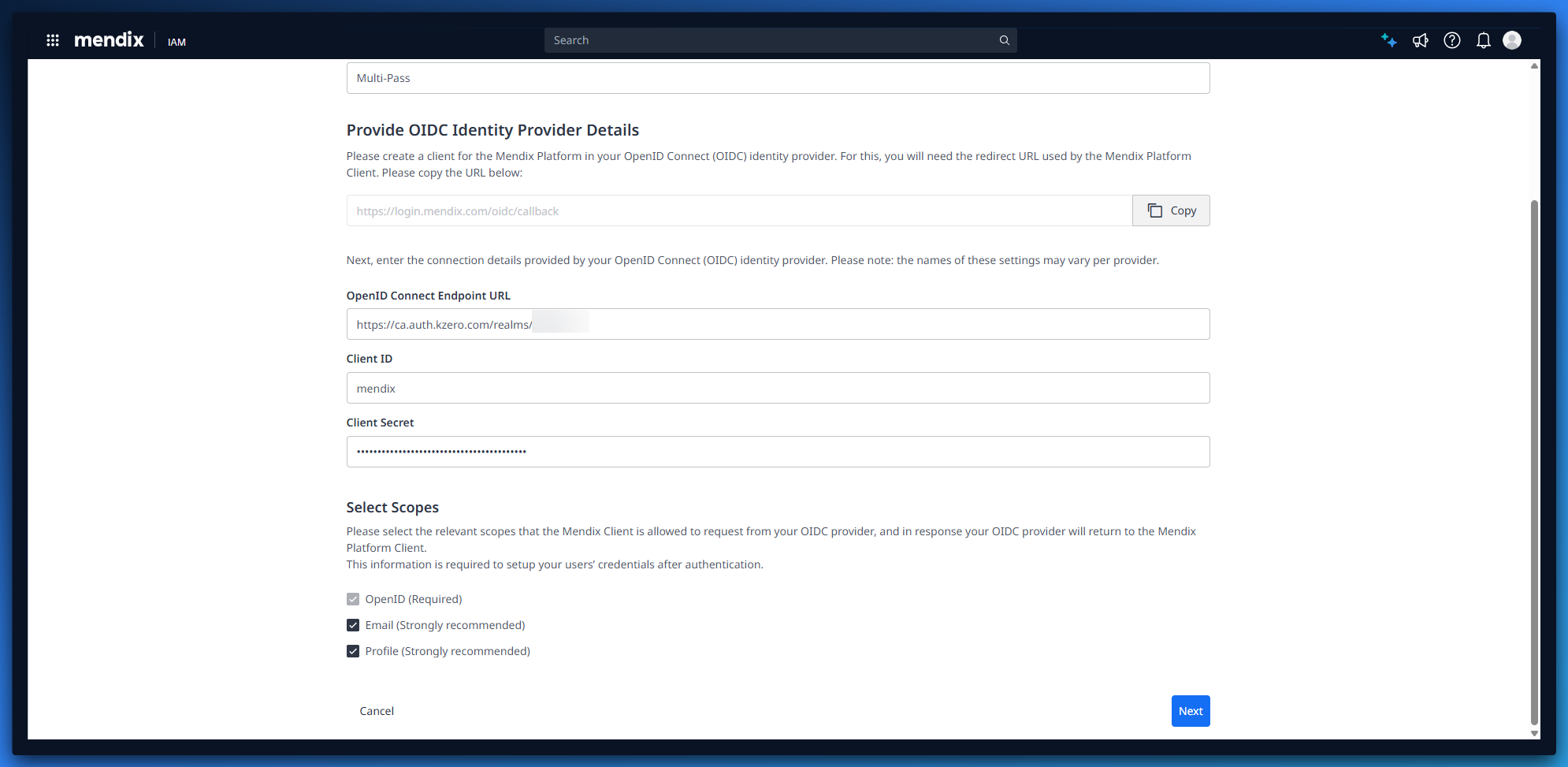

- Populate the fields based on the table below
| Field | Value |
|---|---|
| Configuration Name | Multi-Pass |
| OpenID Connect Endpoint URL | https://ca.auth.kzero.com/realms/<TENANT_NAME> |
| Client ID | mendix |
| Client Secret | Obtained in Step 1 |
- Ensure OpenID, Email, and Profile scopes are enabled
- Click Next

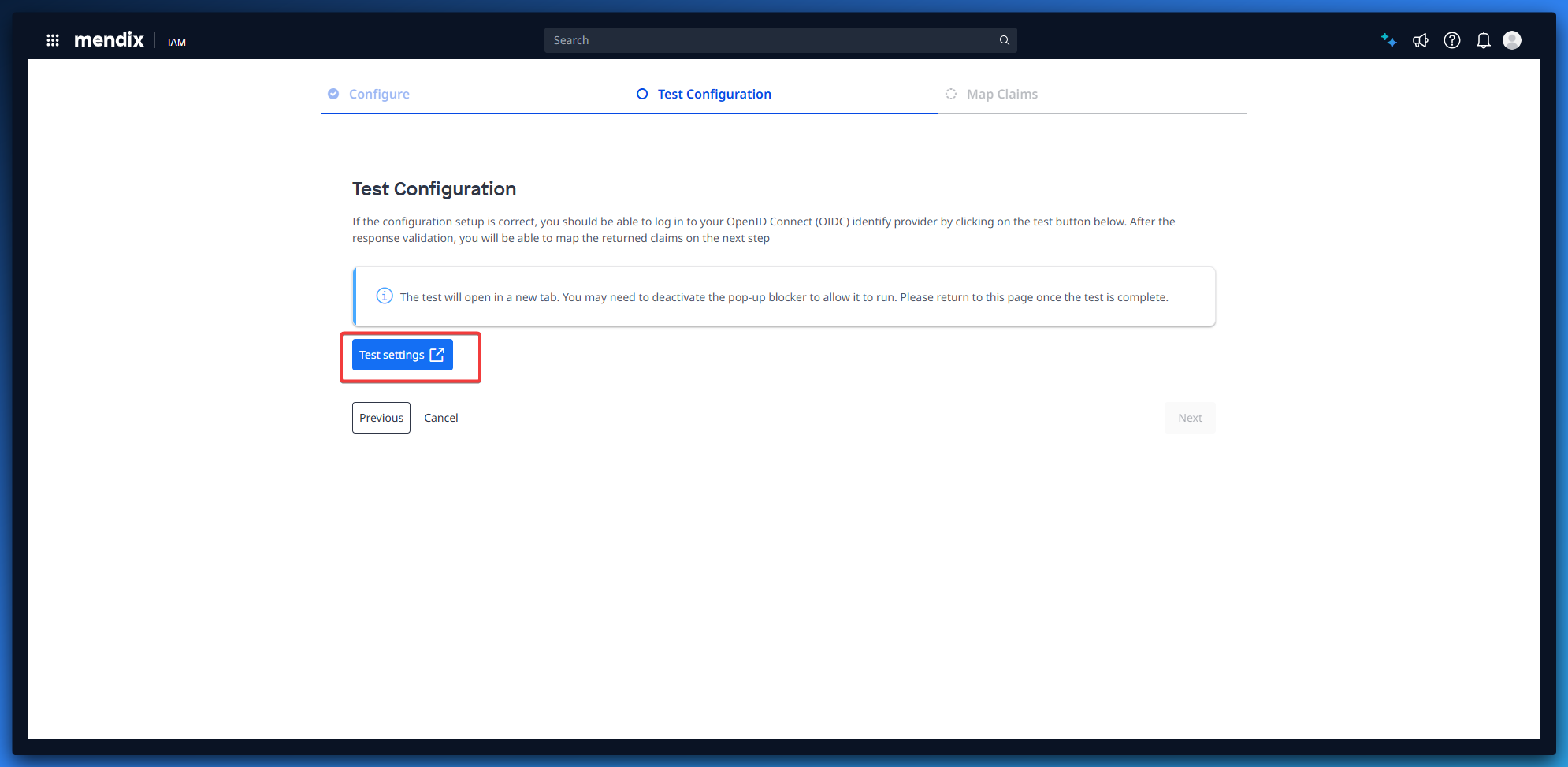

- Click Test Settings (a new window will confirm success)
- Complete the Map Claims screen based on the table below
Map Claims
| Field | Value |
|---|---|
| Foreign ID | sid |
| Username | preferred_username |
| First Name | |
| Last Name |
- Click Next

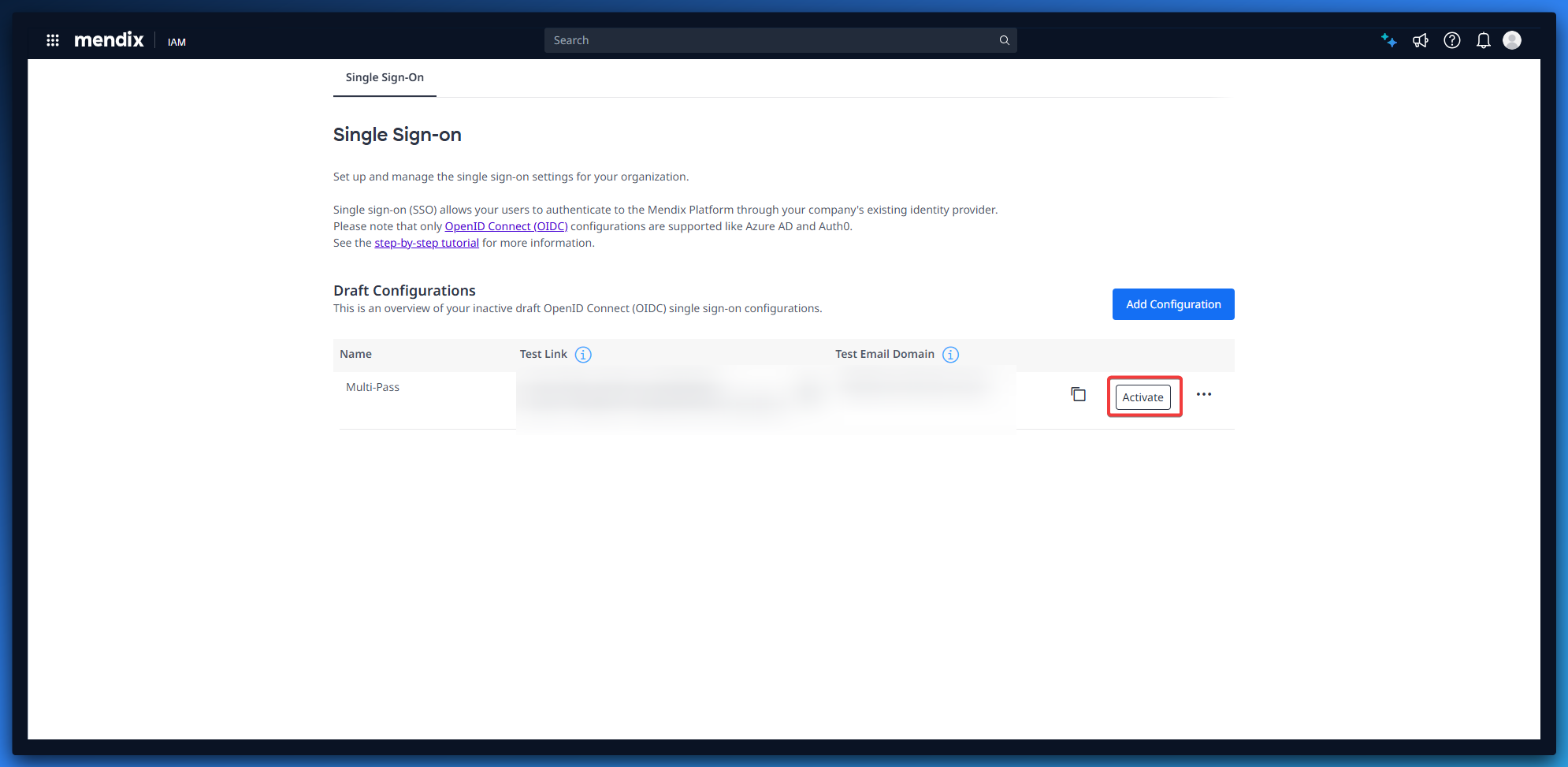

- Click Activate
