Outsystems (Apps) - SSO Configuration
This application has not been formally tested by Kelvin Zero Inc. It is provided solely as a reference guide. If you encounter any issues, kindly submit a ticket directly through the support desk.
This documentation provides a step-by-step guide to setting up Single Sign-On (SSO) for Outsystems using Multi-Pass. SSO simplifies user authentication by allowing access to multiple applications with a single set of credentials. This integration enhances security and improves user experience across your organization.
To set up Multi-Pass with Outsystems, ensure you meet the following requirements:
- Outsystems administrator access
- MPAS Admin rights
- All users intended to use SSO in Outsystems must be registered in your IdP and have the necessary permissions.
Important: Custom elements in URLs (like tenant names) are case sensitive. Match the exact casing from your environment.
- Outsystems administrator access
- MPAS Admin rights
- All users intended to use SSO in Outsystems must be registered in your IdP and have the necessary permissions.
Important: Custom elements in URLs (like tenant names) are case sensitive. Match the exact casing from your environment.
Important: This is only for custom apps that you create in Outsystem. Not the admin login to get to Outsystem
Outsystems (Apps) - SSO Configuration
Step 1 - Start the Configuration of Multi-Pass as the Identity Provider (IdP)
- Open Multi-Pass Dashboard
- Select the correct tenant and go to Integrations, then click on Applications.

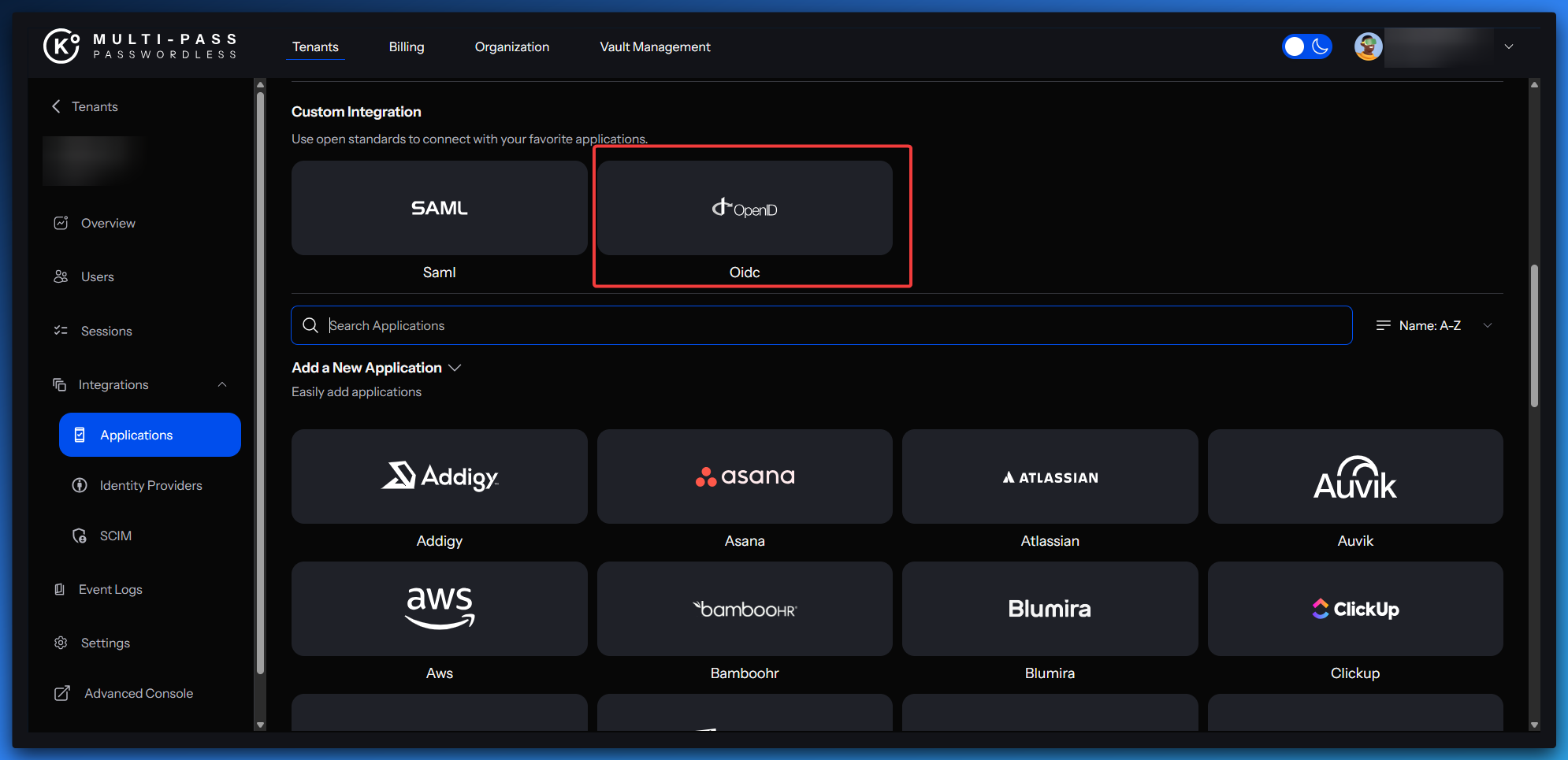

- Select OIDC under the custom integration section.

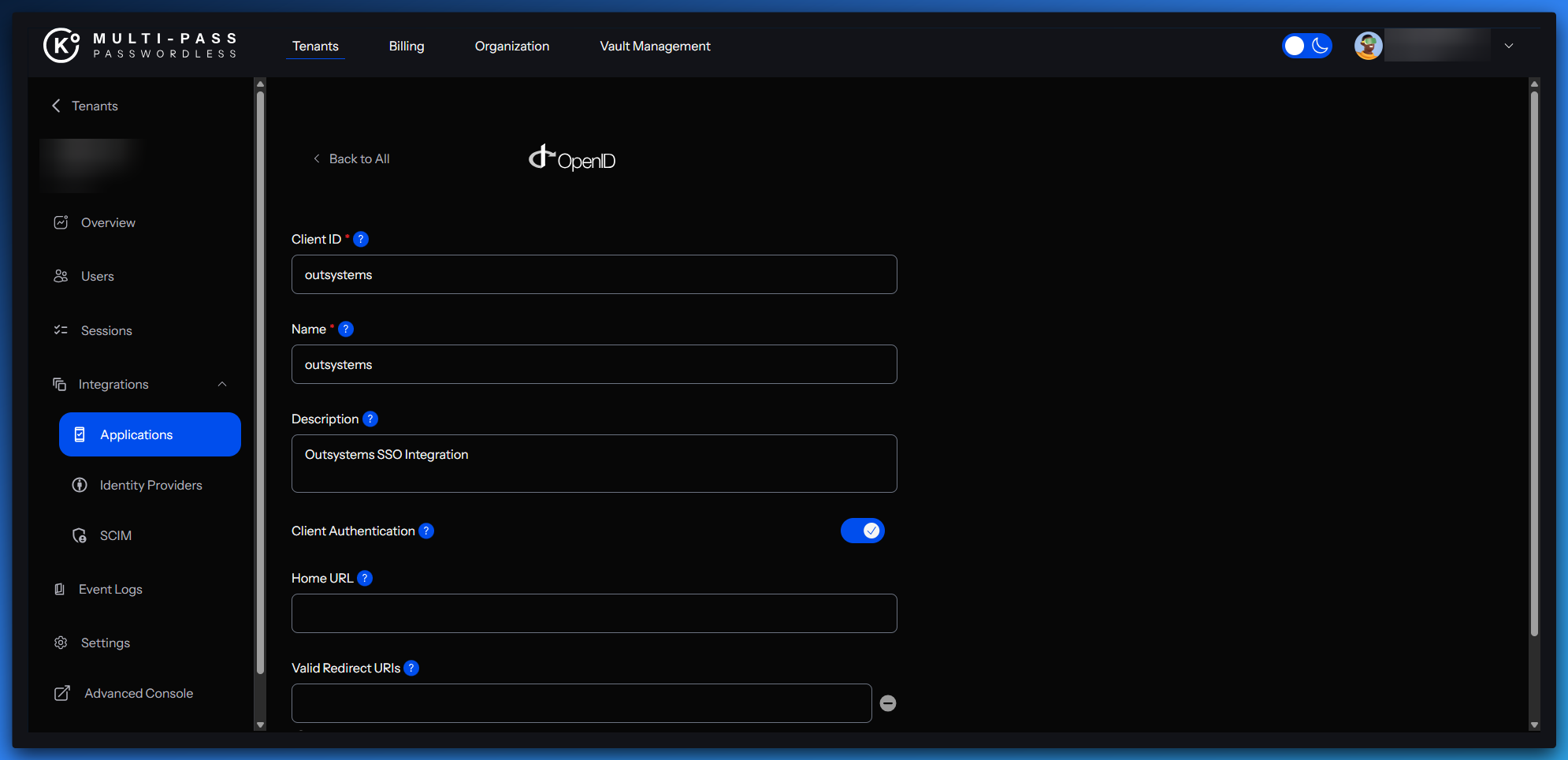

- Complete the fields based on the table below
| Field | Value |
|---|---|
| Client ID (=SP Entity ID) | outsystems |
| Name | outsystems |
| Description | Outsystems OIDC Integration |
| Client Authentication | ON |
- Select Add Integration.

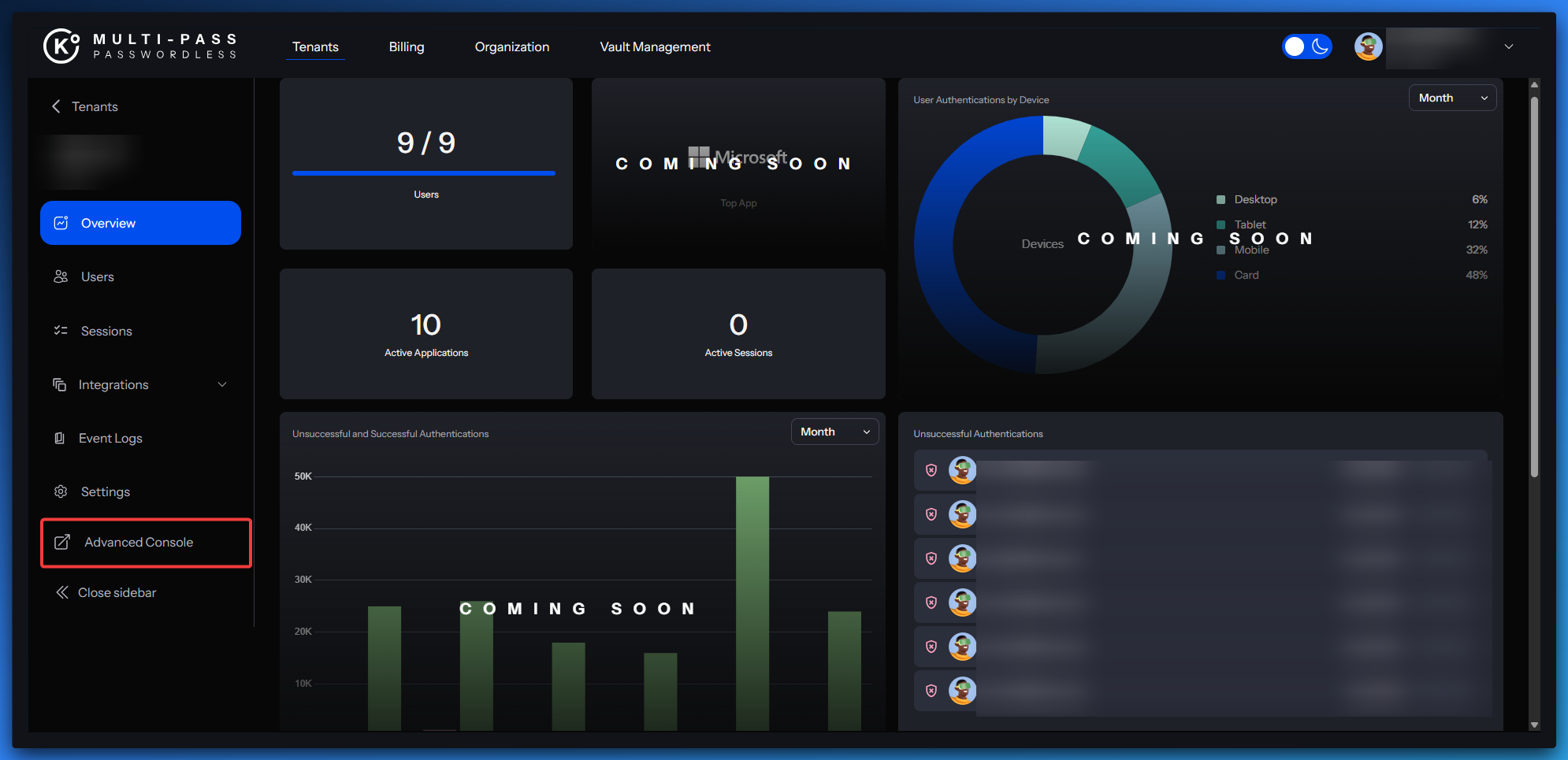

- Go to the Advanced Console using the left-side navigation bar.
- Click Client and search for Outsystems.

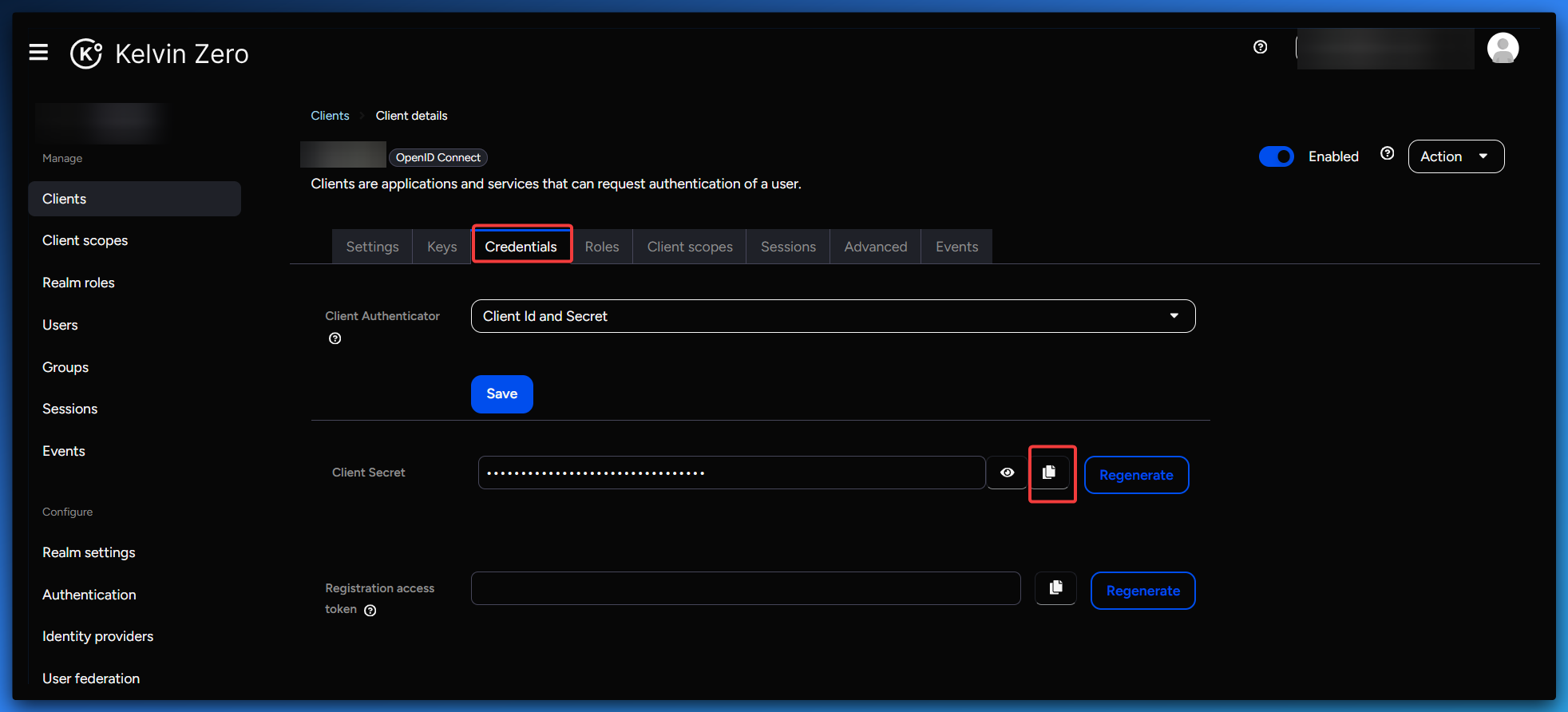

- Under Credentials, copy the Secret Key and save it for Step 2.

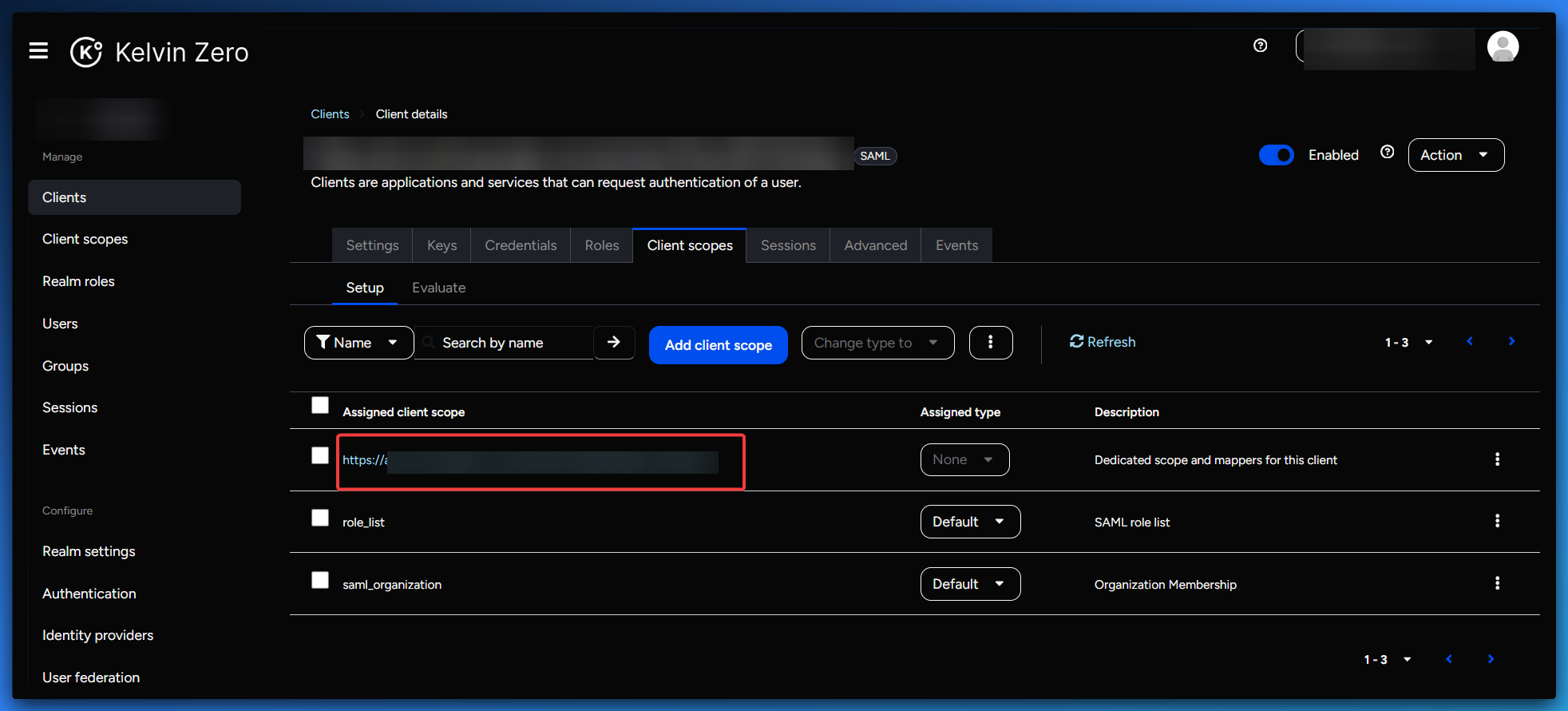

- Go to Client Scopes and click the first scope in the list.
- Select Add Predefined Mapper and add the following:
- given name
- username
- family name
Step 2 - Configure Outsystems as the Service Provider (SP)
- Log into Outsystems as an Administrator.
- In the left navigation pane, select Identity Providers under Manage.

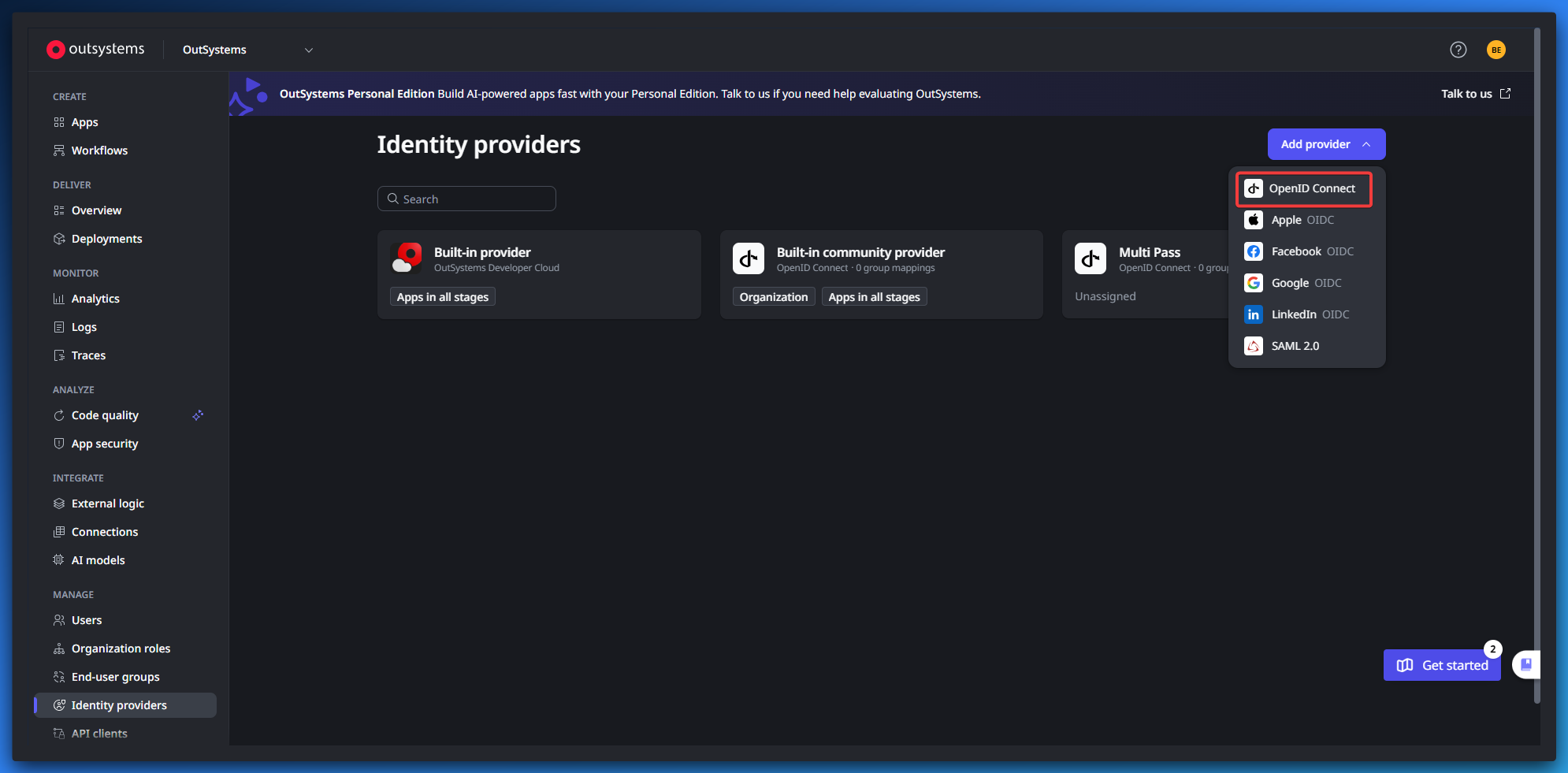

- Select Add Provider → OpenID Connect.

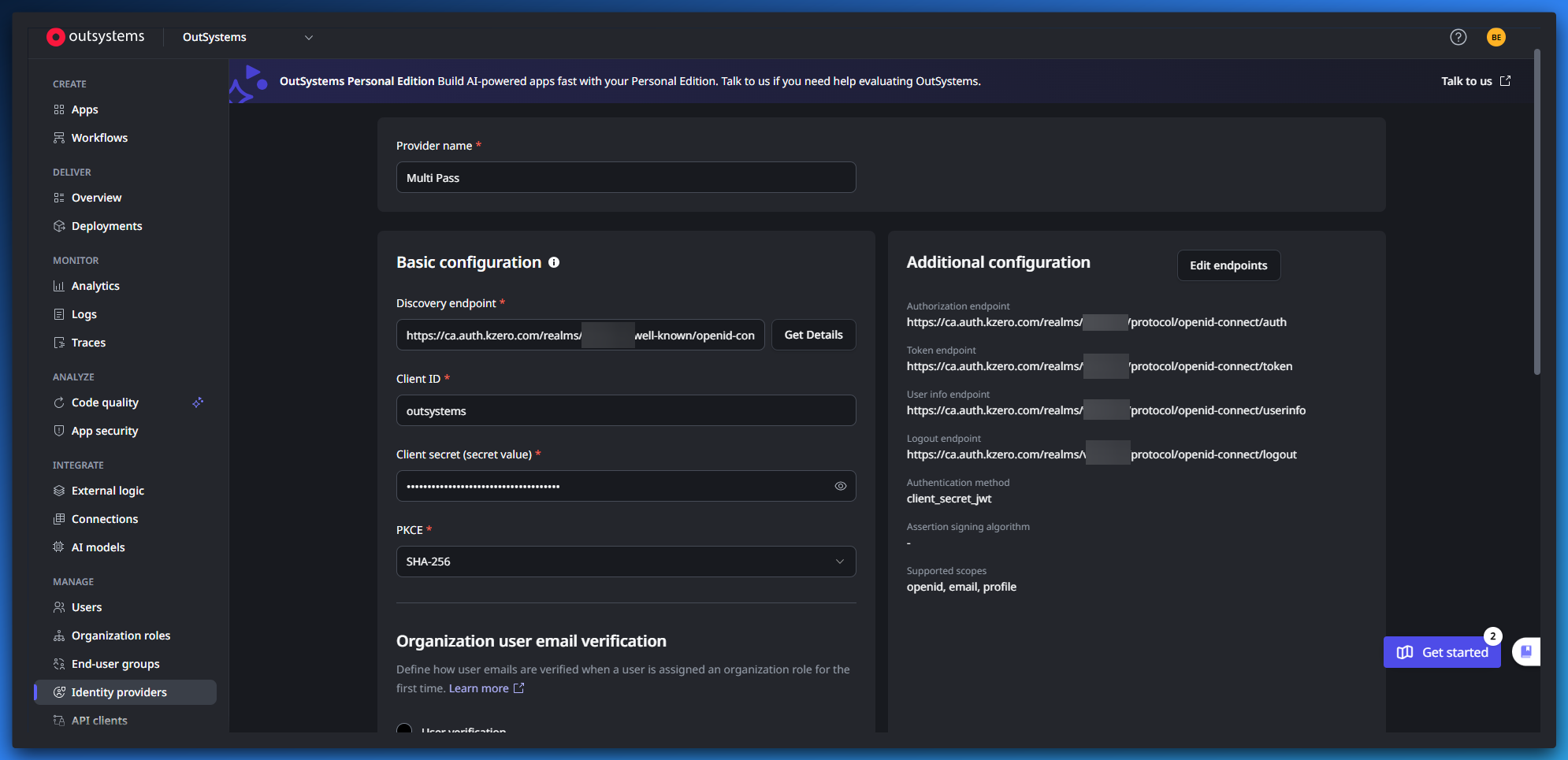

- Complete the fields based on the table below
| Field | Value |
|---|---|
| Provider Name | Multi Pass |
| Discovery Endpoint | https://ca.auth.kzero.com/realms/<TENANT_NAME>/.well-known/openid-configuration |
| Client ID | outsystems |
| Client Secret | Obtained in Step 1 |
| PKCE | SHA-256 |
- Under Organization user email verification, select Trust all user emails as verified.
- In Username Claim Mapping, change value from
usernametopreferred_username. - Select Get Details beside the Discovery Endpoint — Multi-Pass URLs will populate automatically.
- Click Save.

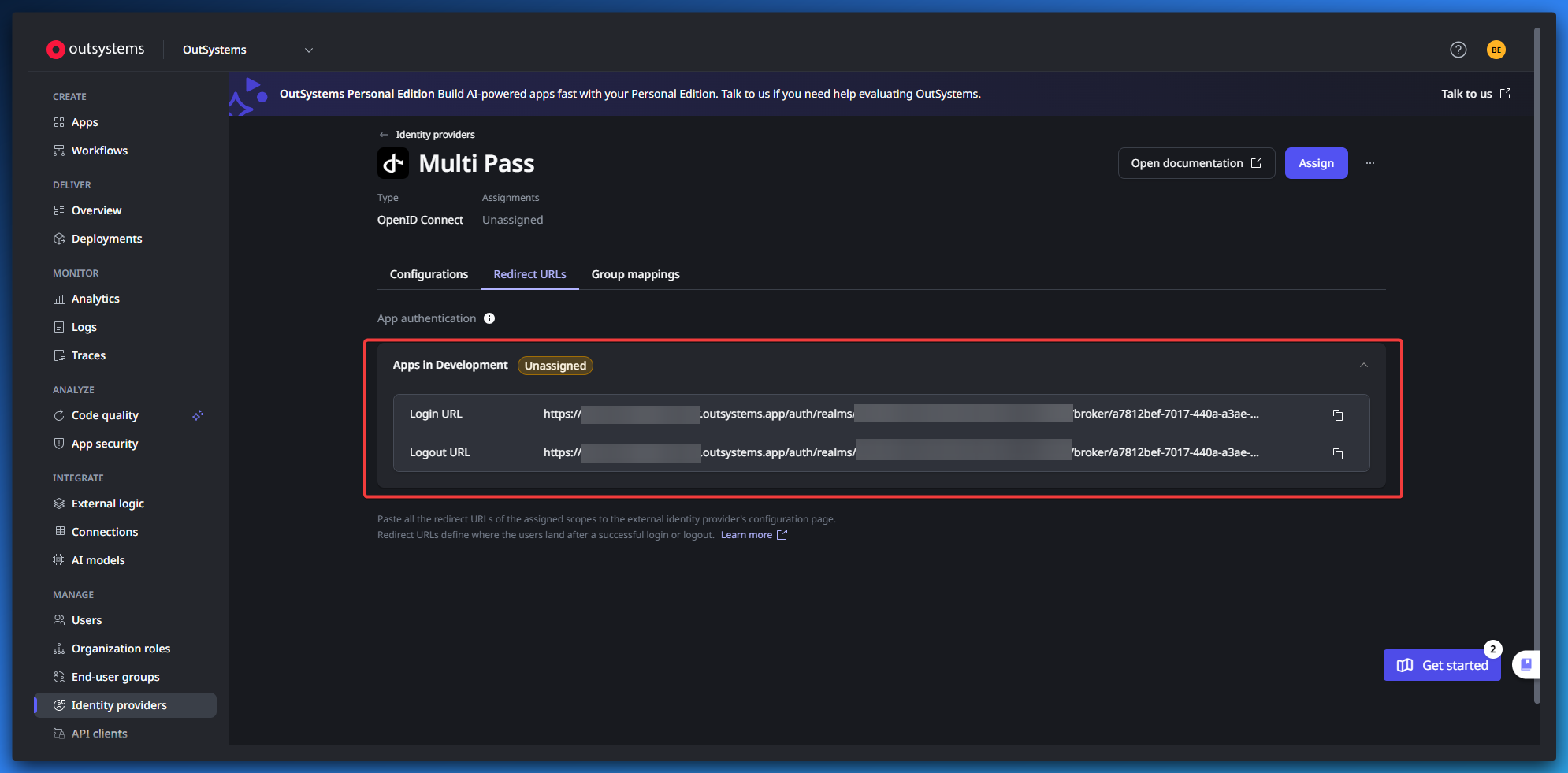

- Navigate to the Redirect URLs tab and note the Login and Logout URLs — you will use them in Step 3.

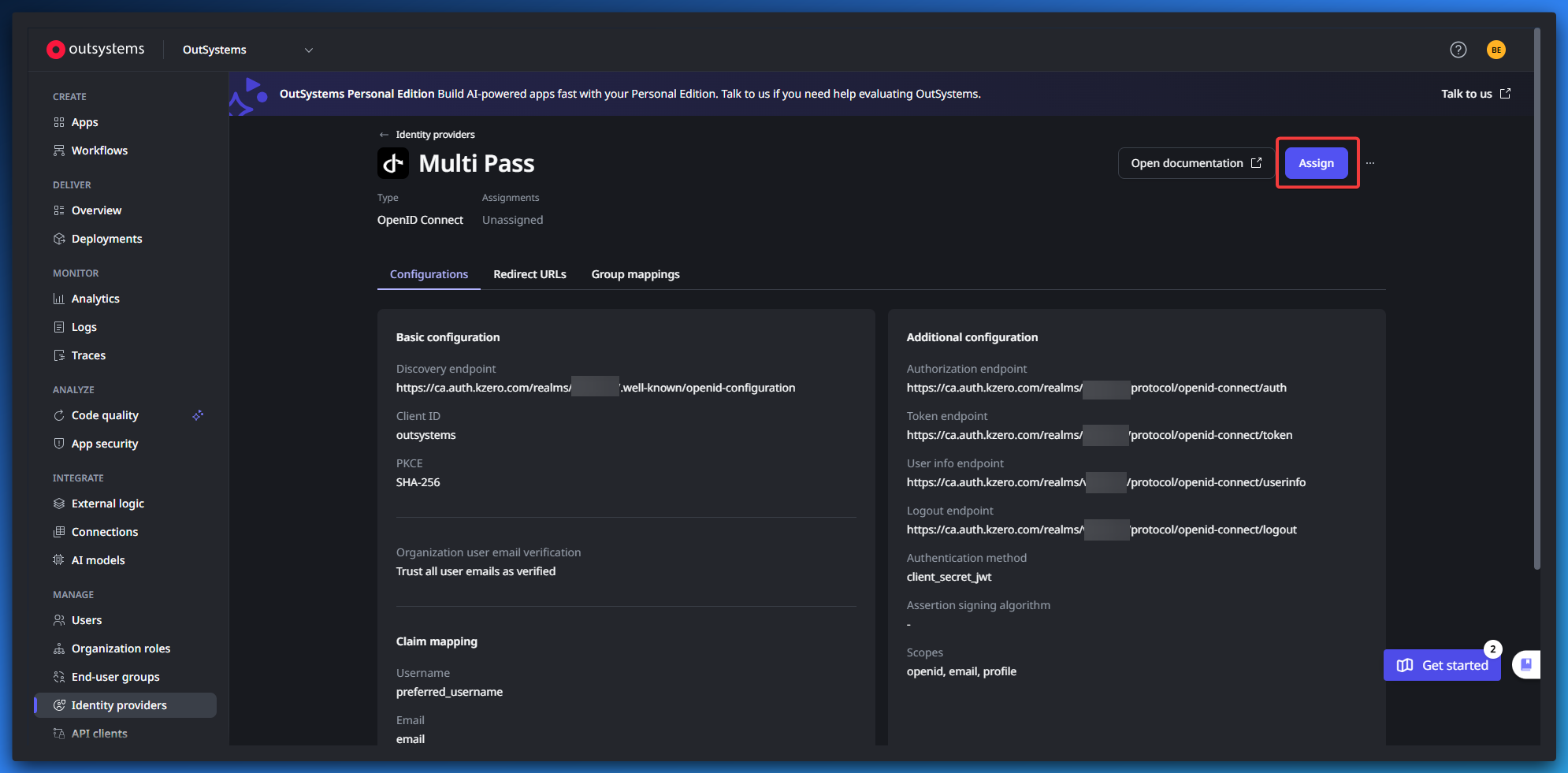

- Select Assign and link Multi-Pass to any applications that will use SSO.
Step 3 - Complete the Configuration of Multi-Pass
- Open Multi-Pass Dashboard
- Go to the Advanced Console on the left navigation pane.
- Click on Client and search for Outsystems.
- Complete or verify the fields based on the tables below:
General settings (Multi-Pass)
| Field | Value |
|---|---|
| Client ID | outsystems |
| Name | outsystems |
| Description | Outsystems SSO Integration |
| Always display in UI | OFF |
Access settings (Multi-Pass)
| Field | Value |
|---|---|
| Home URL | https://<OUTSYSTEMS_SUBDOMAIN>.outsystems.app |
| Valid Redirect URIs (ACS) | Login URL from Step 2 Example:
|
| Valid Post Logout Redirect URIs | Logout URL from Step 2 Example:
|
Capability Config
| Setting | Value |
|---|---|
| Client Authentication | ON |
| Authentication Flow | Standard Flow & Direct Access Grants |
