N-Central (N-Able) - SSO configuration
This application has not been formally tested by Kelvin Zero Inc. It is provided solely as a reference guide. If you encounter any issues, kindly submit a ticket directly through the support desk.
This documentation provides a step-by-step guide to setting up Single Sign-On (SSO) for N-Central (N-Able) using Multi-Pass. SSO simplifies user authentication by allowing access to multiple applications with a single set of credentials. This integration enhances security and improves user experience across your organization.
To set up Multi-Pass with N-Central, ensure you meet the following requirements:
- N-Central admin rights
- MPAS Admin rights
- Make sure that all users intended to use SSO in N-Central are registered in your IdP and have the necessary permissions to access N-Central.
Important: Custom elements in URLs (like realm names) are case sensitive. Make sure to match the exact casing from your environment.
- N-Central admin rights
- MPAS Admin rights
- Make sure that all users intended to use SSO in N-Central are registered in your IdP and have the necessary permissions to access N-Central.
Important: Custom elements in URLs (like realm names) are case sensitive. Make sure to match the exact casing from your environment.
N-Central (N-Able) - SSO Configuration
Step 1 - Configure Multi-Pass as the Identity Provider (IdP)
- Open Multi-Pass Dashboard
- Select the correct tenant and go to Integrations, click on Applications

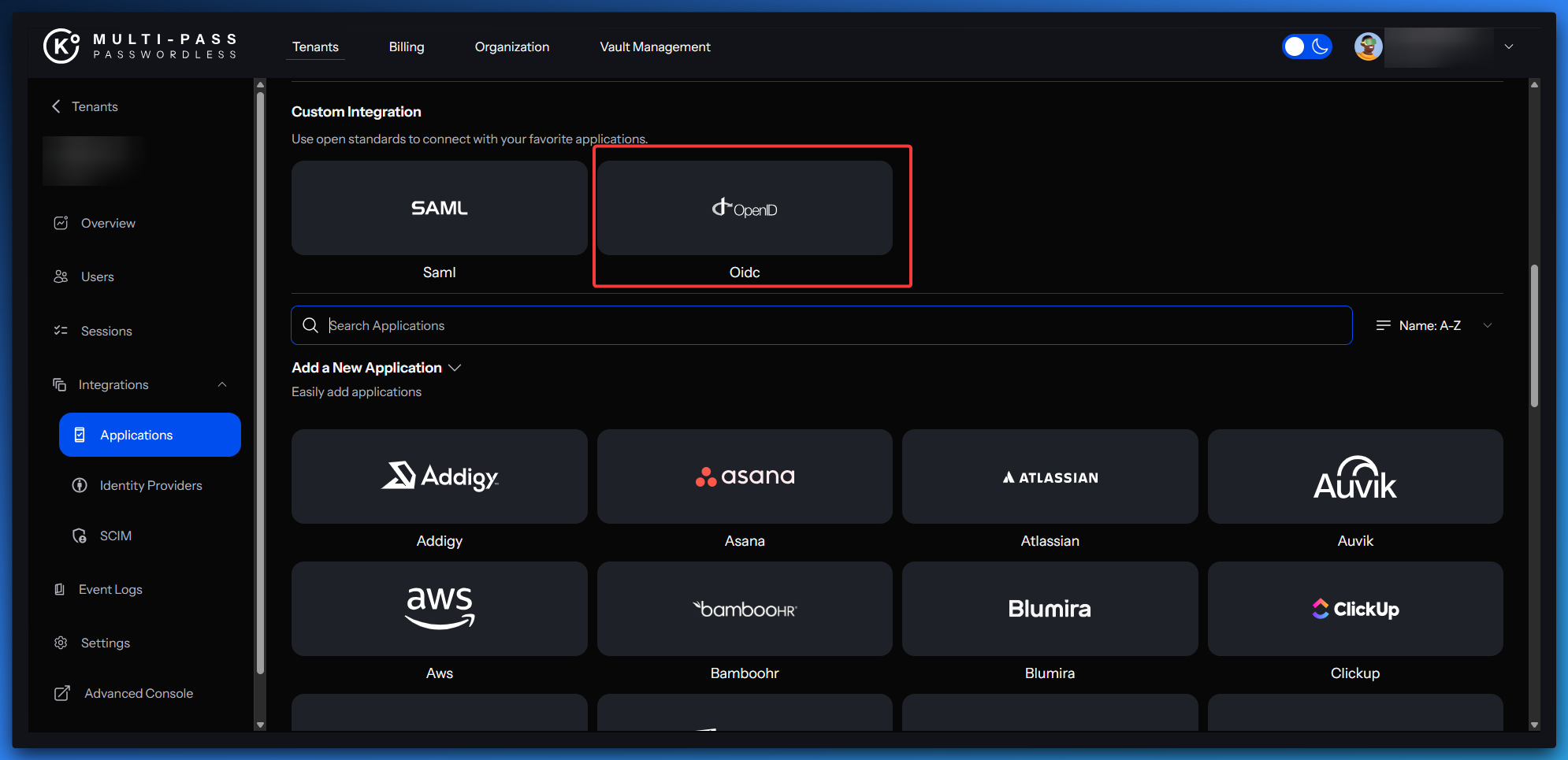

- Select OIDC in the custom integration section

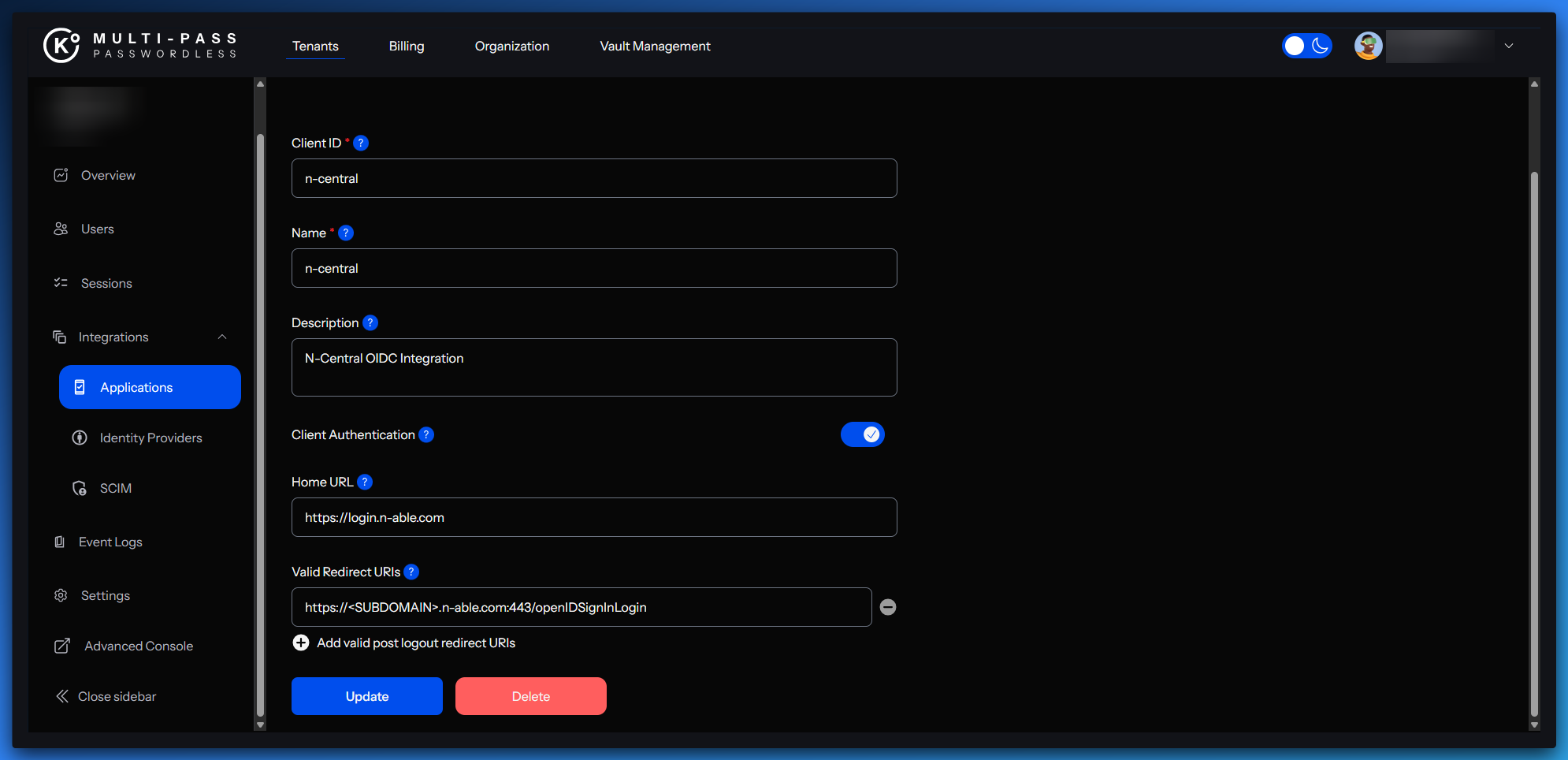

- Complete the fields based on the table below
| Field | Value |
|---|---|
| Client ID (=SP Entity ID) | n-central |
| Name | n-central |
| Description | N-Central OIDC Integration |
| Client Authentication | ON |
| Home URL | https://login.n-able.com |
| Valid Redirect URIs | https://<SUBDOMAIN>.n-able.com:443/openIDSignInLogin |
- Select Add Integration

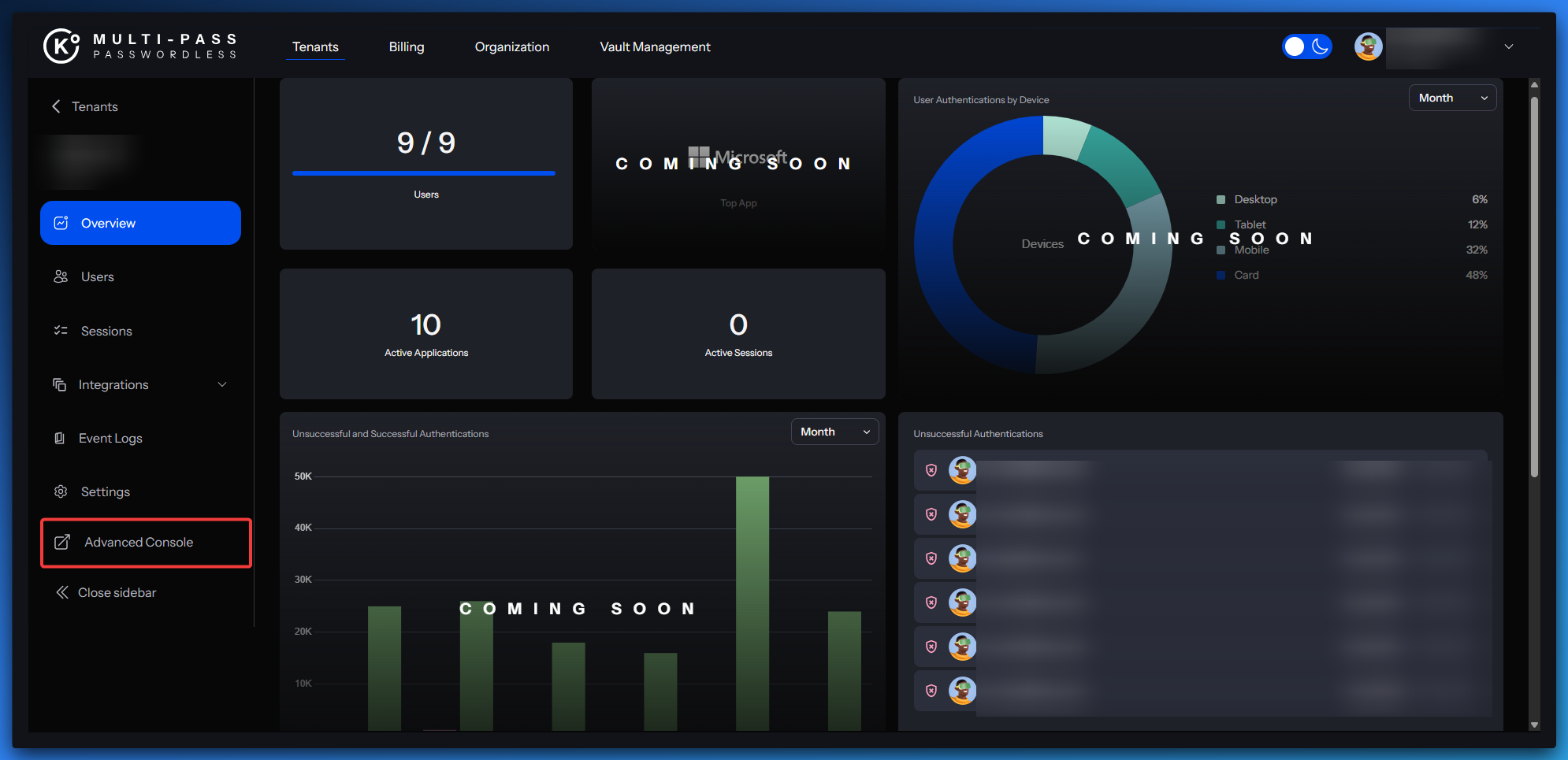

- Go to the Advanced Console by clicking on the right side of your screen
- Client on Client and use the search bar to search for N-Central
- Make sure all the fields are populated based on the tables below
General settings (Multi-Pass)
| Field | Value |
|---|---|
| Client ID | n-central |
| Name | n-central |
| Description | N-Central OIDC Integration |
| Always display in UI | ON |
Access settings (Multi-Pass)
| Field | Value |
|---|---|
| Home URL | https://login.n-able.com |
| Valid Redirect URIs (ACS) | https://<SUBDOMAIN>.n-able.com:443/openIDSignInLogin |
Capability Config
| Setting | Value |
|---|---|
| Client Authentication | ON |
| Authentication Flow | Standard Flow & Direct Access Grants |

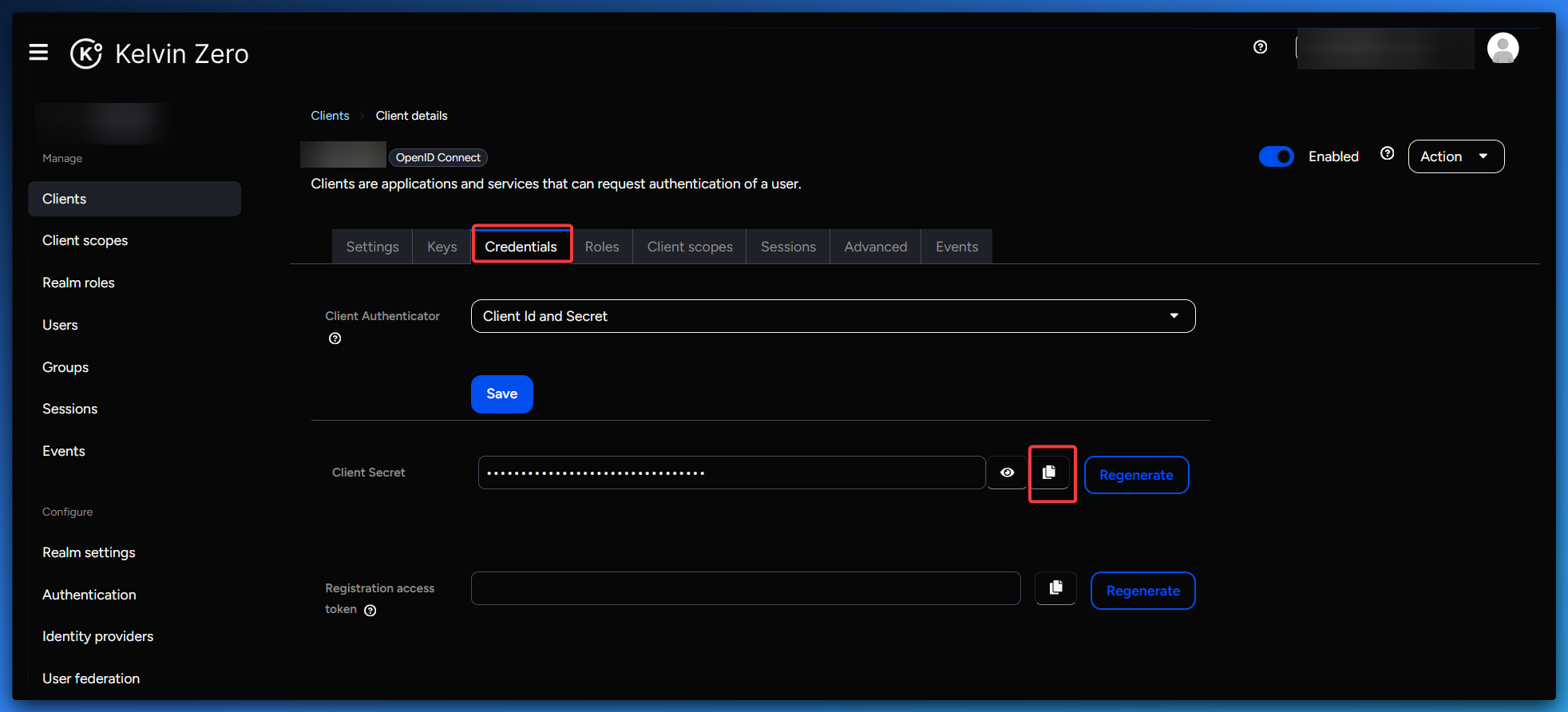

- Go to the Credentials Tab and copy the Secret Key (needed in Step 2).

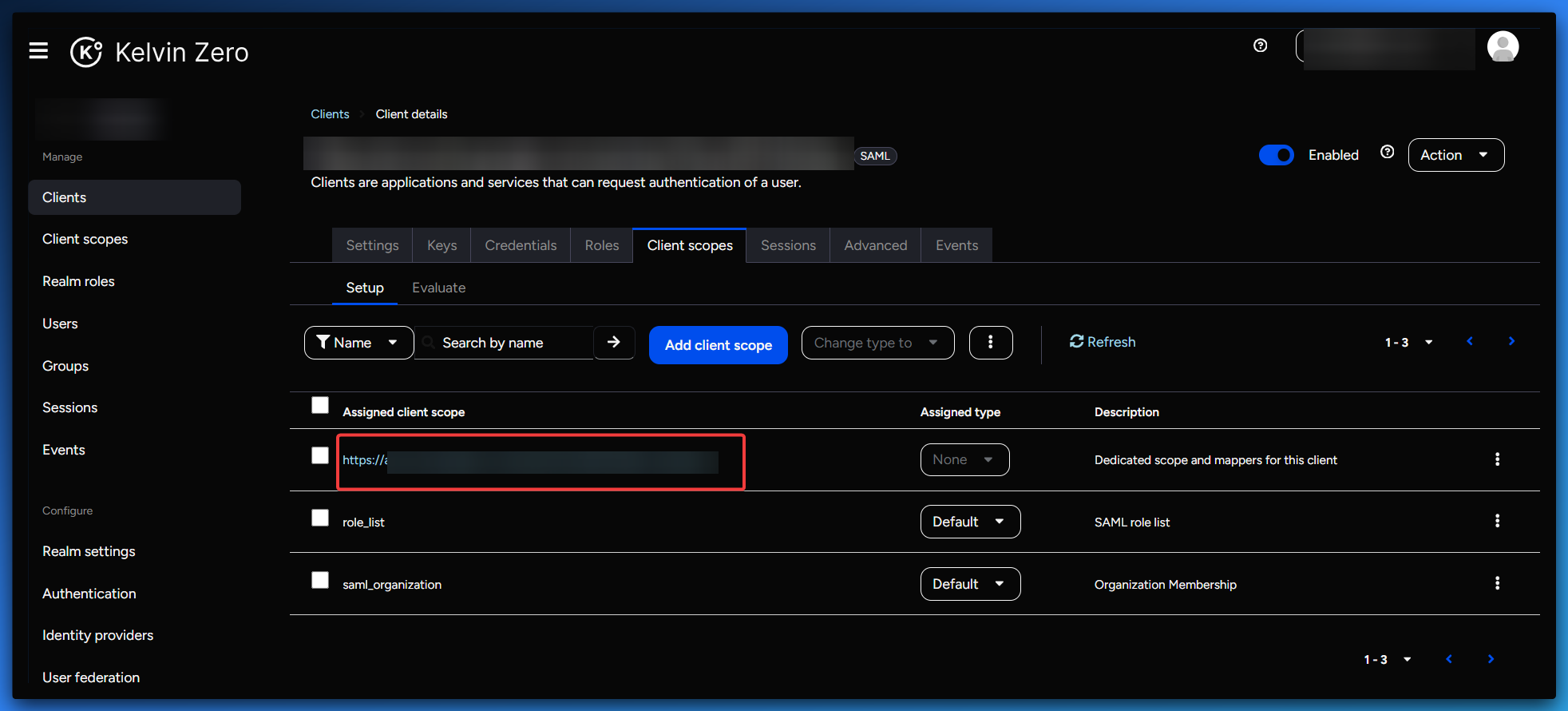

- Go to the Client Scopes Tab and select the first scope in the list.

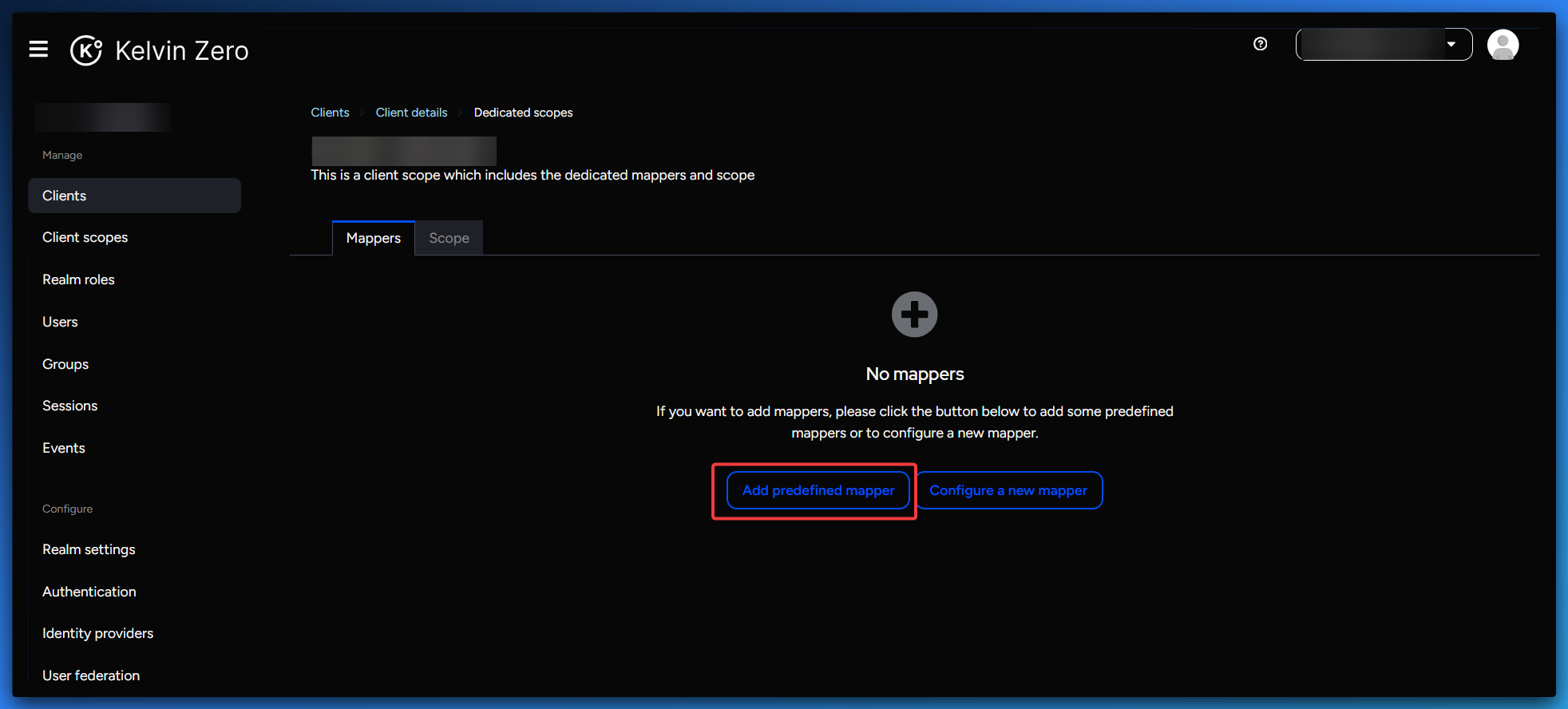

- Click Add Predefined Mapper
- Add the following Mappers:
- given name
- username
- family name
Step 2 - Configure N-Central as the Service Provider (SP)
- Log into N-Central as an Administrator
- Navigate to Administration > User Management > SSO Providers
- Click Add and select Custom (OpenID Connect) from the dropdown
- Set Name = Multi-Pass
- Under Details, populate the following:
| Field | Value |
|---|---|
| Client ID | n-central |
| Client Secret | Obtained in Step 1 |
| Redirect URL | Confirm matches "Valid Redirect URIs" in Step 1 |
| Authority/Service | https://ca.auth.kzero.com/realms/<TENANT_NAME>/.well-known/openid-configuration |
| Scope | openid profile |
- Click Test Connection to confirm integration
- Select Link Users tab and click LINK USERS
- Choose users to enable SSO for and click Save
