UKG - SSO configuration

Please note that this application has not been formally tested by Kelvin Zero Inc. It is provided solely as a reference guide. If you encounter any issues, kindly submit a ticket directly through the support desk.

This documentation provides a step-by-step guide to setting up Single Sign-On (SSO) for UKG using MPAS. SSO simplifies user authentication by allowing access to multiple applications with a single set of credentials. This integration enhances security and improves user experience across your organization

To set up Multi-Pass with UKG, ensure you meet the following requirements:

- Administrator access to UKG

- MPAS Admin rights

- Make sure that all users intended to use SSO in UKG are registered in your IdP and have the necessary permissions to access UKG.

Important: The SAML values shown in Microsoft’s tutorial (Sign‑On URL, Identifier/Entity ID, Reply URL/ACS) are examples. You must obtain your organization’s actual values from the UKG Pro Client Support team.

Important: Custom elements in URLs (like realm names) are case sensitive. Make sure to match the exact casing from your environment.

UKG - SSO configuration

Step 1 — Configure Multi‑Pass as the Identity Provider (IdP)

1. Open Multi-Pass Dashboard

2. Select the correct tenant and go to Integrations, click on Applications

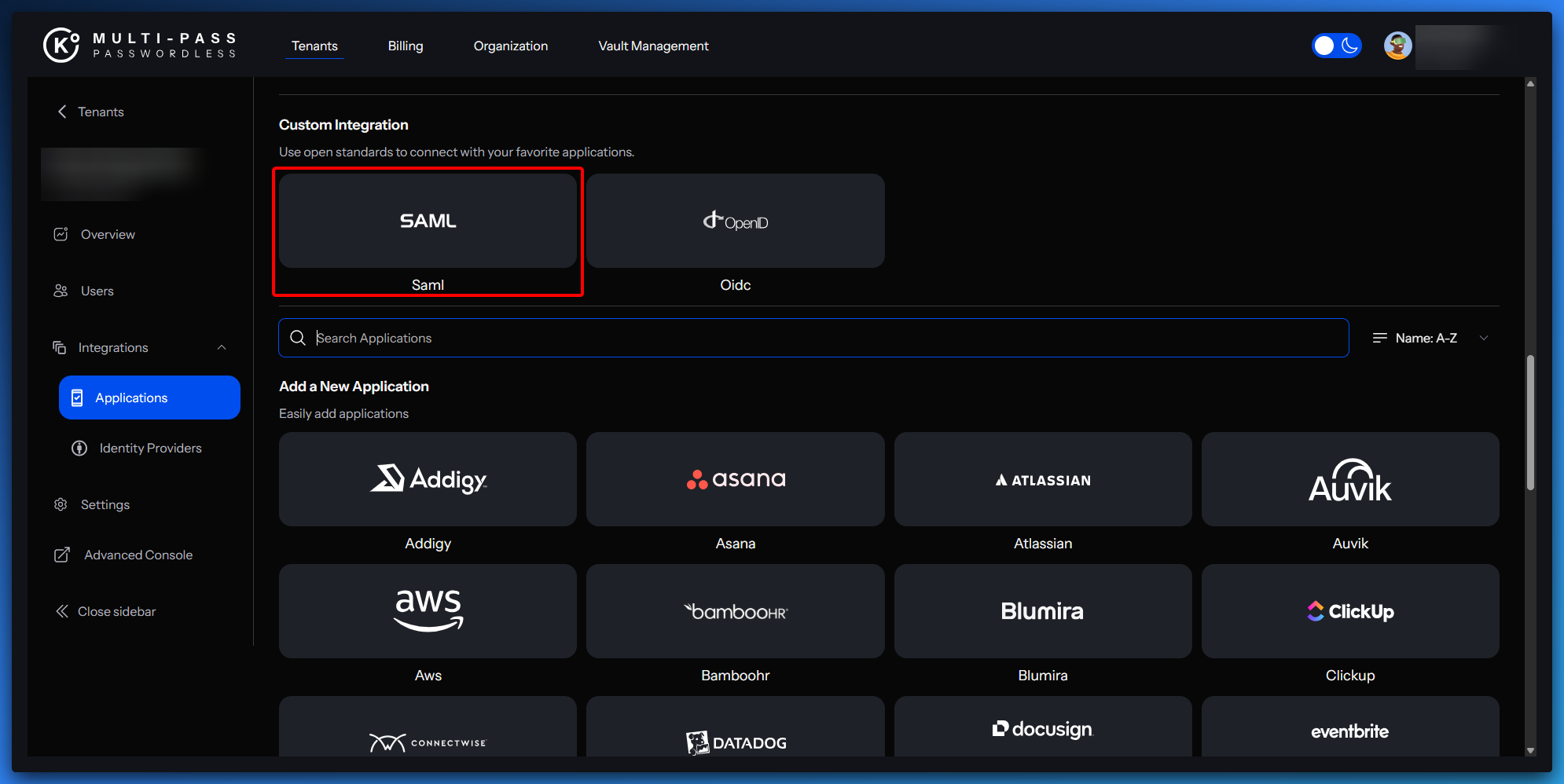

1. Select in the custom integration section SAML.

2. Collect the Service Provider (SP) details from UKG Pro Client Support

3. In Multi‑Pass, fill in the UKG values:
1. SP Entity ID = https://<company>.ultipro.com/adfs/services/trust
2. Assertion Consumer Service (ACS) URL = https://<company>.ultipro.com/<instancename>
3. Sign‑On URL = https://<company>.ultipro.com/ (Optional)
4. NameID Format = Email

4. Download the IdP metadata (Entity ID, SSO URL, x.509 certificate) for UKG.
5. Click add integration

6. Now we need to verify that everything is well completed in the advanced console and add mapping in the client scope.

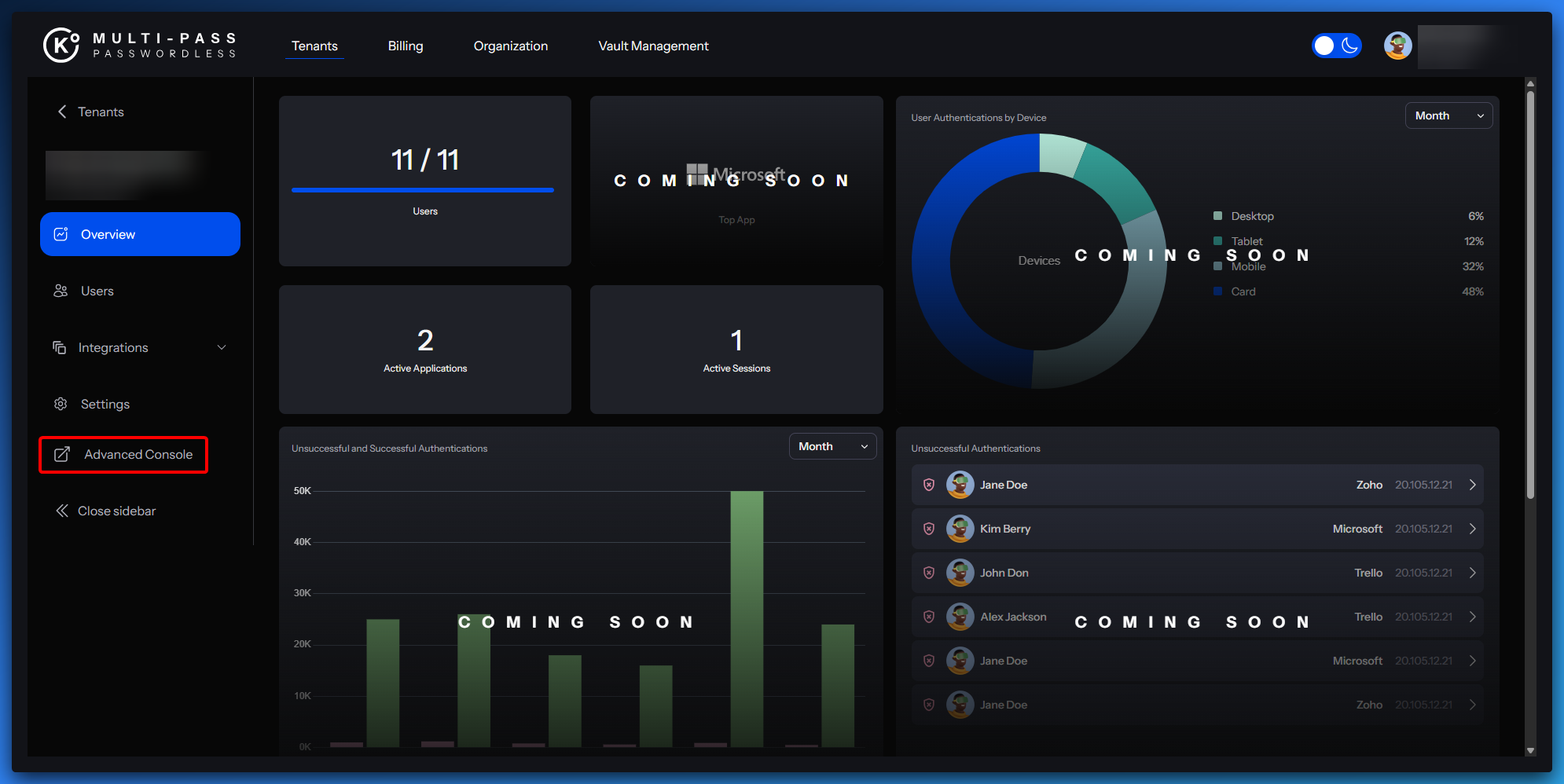

7. On the left side, click on "advanced console"

1. Click on Client and use the search bar to find UKG you just created :

2. Verify the next fields :


General settings

Field	Value
Client ID / SP Entity ID	Identifier (Entity ID) provided by UKG - https://<company>.ultipro.com/adfs/services/trust
Name	ukg / ukg-pro / ukg-hrsd
Description	SSO integration (SAML 2.0)
Always Display in UI	ON

Access settings

Field	Value
Home URL	https://ca.auth.kzero.com/realms/<TENANT_NAME>/protocol/saml/clients/<APP_NAME>
Valid Redirect URIs (ACS)	https://<company>.ultipro.com/<instance> (exact ACS from UKG)
IdP‑Initiated SSO URL Name	<APP_NAME>

SAML Capabilities

Setting	Value
NameID Format	email
Force NameID Format	ON
Force POST Binding	ON
Include AuthnStatement	ON

Signature and Encryption

Setting	Value
Sign Documents	ON
Sign Assertions	ON
Encrypt Assertions	OFF (unless UKG requires)

1. Go to the tab called "Keys" and make sure both parameters are switched to OFF

2. Go to the "advanced" tab

1. Assertion Consumer Service POST Binding URL = Valid Redirect URIs (ACS) = https://<company>.ultipro.com/<instance> (exact ACS from UKG)

3. Go to "client scope" tab

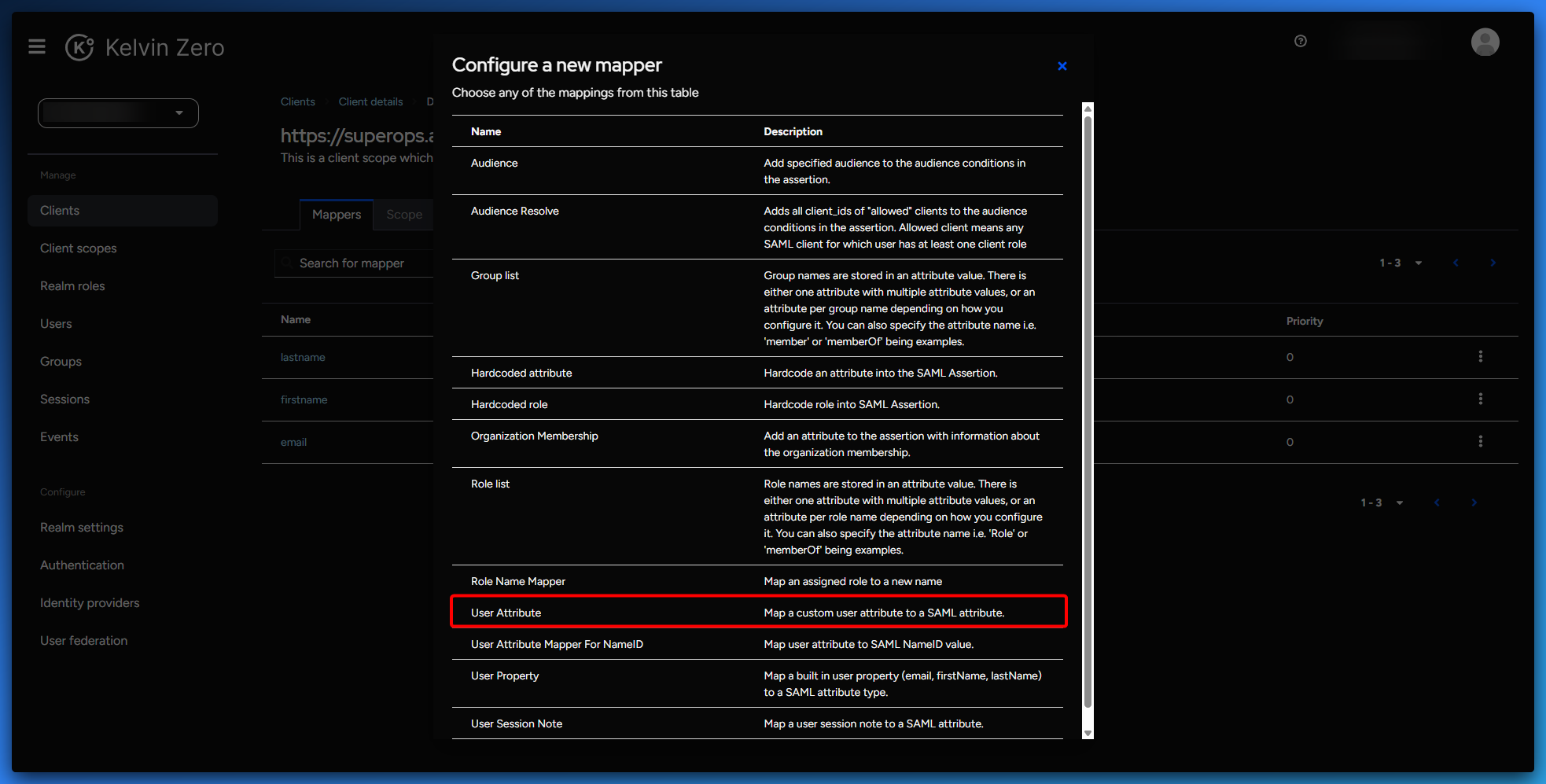

4. Click on the assigned client and click on "configure a new mapper" then select user attribute


1. Complete the different fields for : firstname :


Field	Value
Mapper Type	User Attribute
Name	firstname
User Attribute	firstName
Friendly Name	firstname
SAML Attribute Name	firstname

Lastname :

Field	Value
Mapper Type	User Attribute
Name	lastname
User Attribute	lastname
Friendly Name	lastname
SAML Attribute Name	lastname

Step 2 — Configure UKG as the Service Provider (SP) & Exchange Metadata

1. Provide the Multi‑Pass IdP metadata to UKG (or enter it in the UKG admin if self‑service is available):

1. IdP Entity ID

2. IdP Single Sign‑On URL

3. IdP x.509 certificate

2. Ensure NameID is set to EmailAddress (Multi‑Pass will send the user’s email as NameID).


Save changes in UKG and complete the SAML setup. Keep a local UKG admin account as a fallback.
