Ramp - SSO Configuration
This application has not been formally tested by Kelvin Zero Inc. It is provided solely as a reference guide. If you encounter any issues, kindly submit a ticket directly through the support desk.
This documentation provides a step-by-step guide to setting up Single Sign-On (SSO) for Ramp using Multi-Pass. SSO simplifies user authentication by allowing access to multiple applications with a single set of credentials. This integration enhances security and improves user experience across your organization.
To set up Multi-Pass with Ramp, ensure you meet the following requirements:
- Ramp admin rights
- MPAS Admin rights
- Make sure that all users intended to use SSO in Ramp are registered in your IdP and have the necessary permissions to access Ramp.
Important: Custom elements in URLs (like realm names) are case sensitive. Make sure to match the exact casing from your environment.
- Ramp admin rights
- MPAS Admin rights
- Make sure that all users intended to use SSO in Ramp are registered in your IdP and have the necessary permissions to access Ramp.
Important: Custom elements in URLs (like realm names) are case sensitive. Make sure to match the exact casing from your environment.
Ramp - SSO Configuration
Step 1 - Configure Ramp (Service Provider)
- Log into Ramp as an Administrator.
- Go to Settings > Company Settings.
- Navigate to the Security tab.
- Select Begin Setup under Identity Providers.
- Select Custom Identity Provider.
- You will be presented with a list of options and values. Rename it to Multi-Pass and insert the Metadata URL/File:
https://ca.auth.kzero.com/realms/<TENANT_NAME>/protocol/saml/descriptor - Copy the Metadata URL for Ramp or download the Metadata XML file (needed in Step 2).
- Under Enable Domains, select the company’s domain.
- Click Exit and Test.
- Upon successful test login, you will be directed to the Login methods tab with Multi-Pass displayed as a method for each user role.
- Assign Multi-Pass to the necessary roles.
- Select Save Changes.
Step 2 - Configure Multi-Pass (Identity Provider)
- Open Multi-Pass Dashboard
- Select the correct tenant and go to Integrations > Applications.

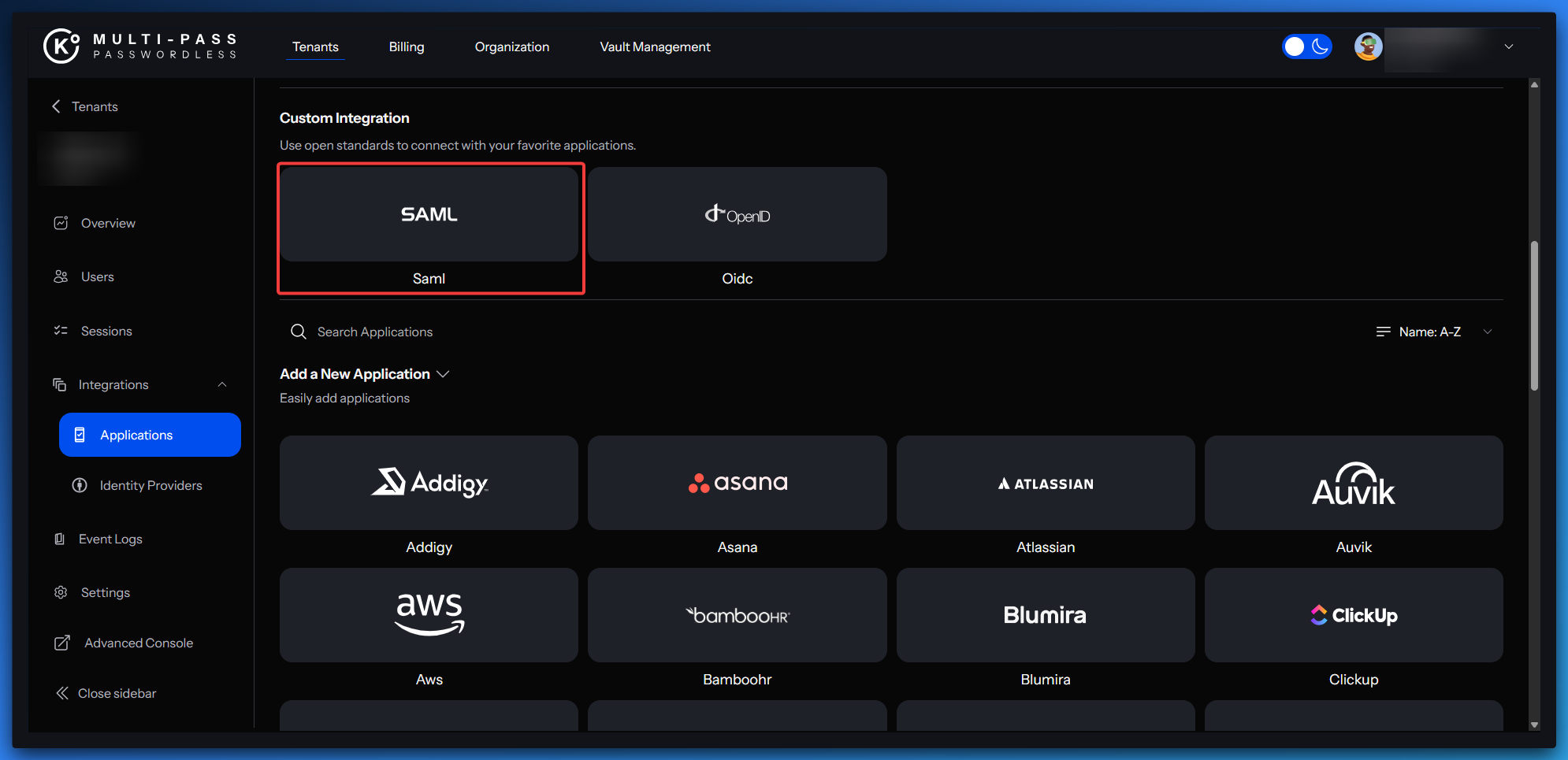

- Select SAML in the custom integration section.
- Browse to the Metadata URL obtained from Step 1 and save the XML file locally.

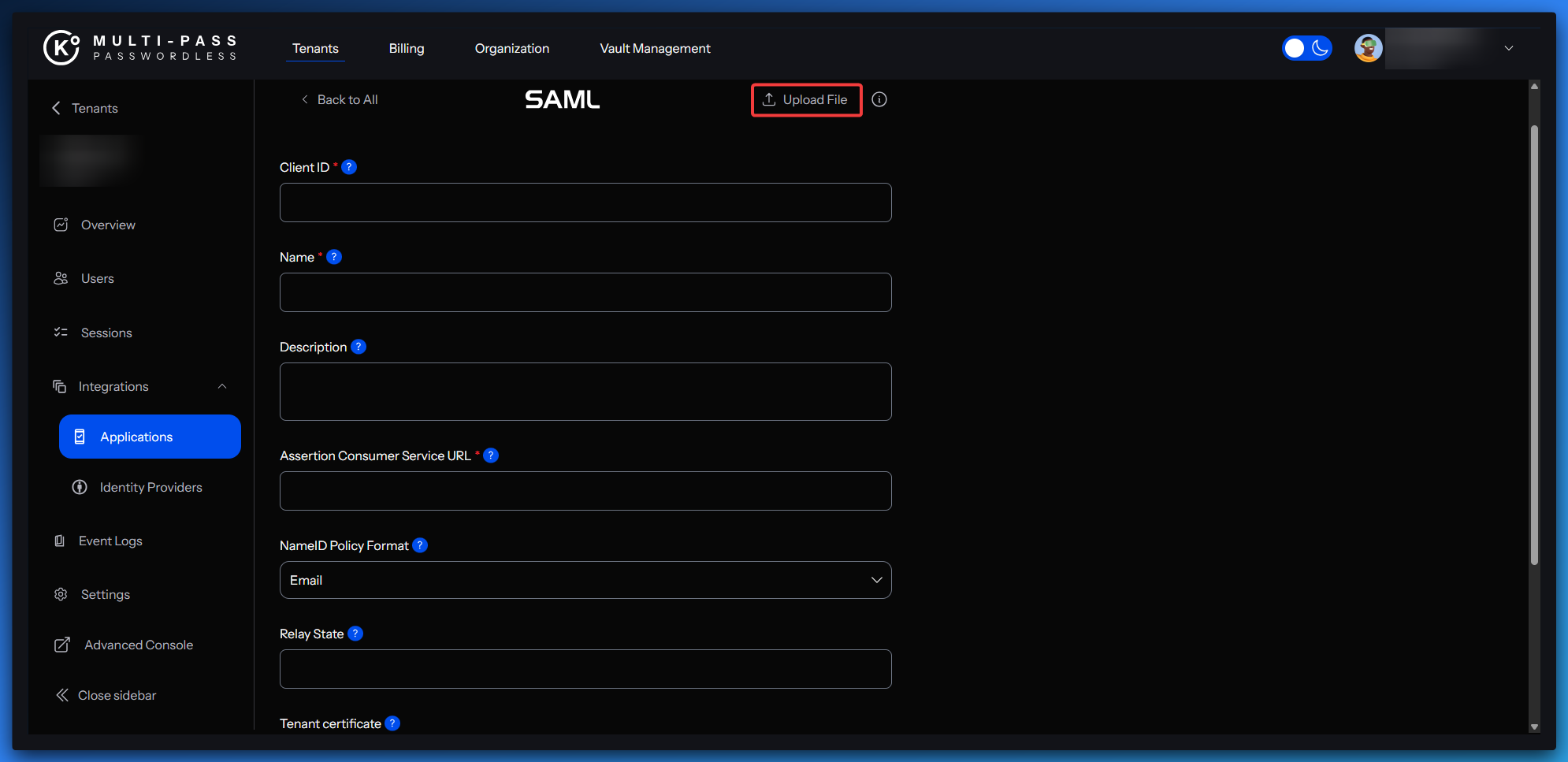

- Select Upload File and upload the Ramp Metadata.

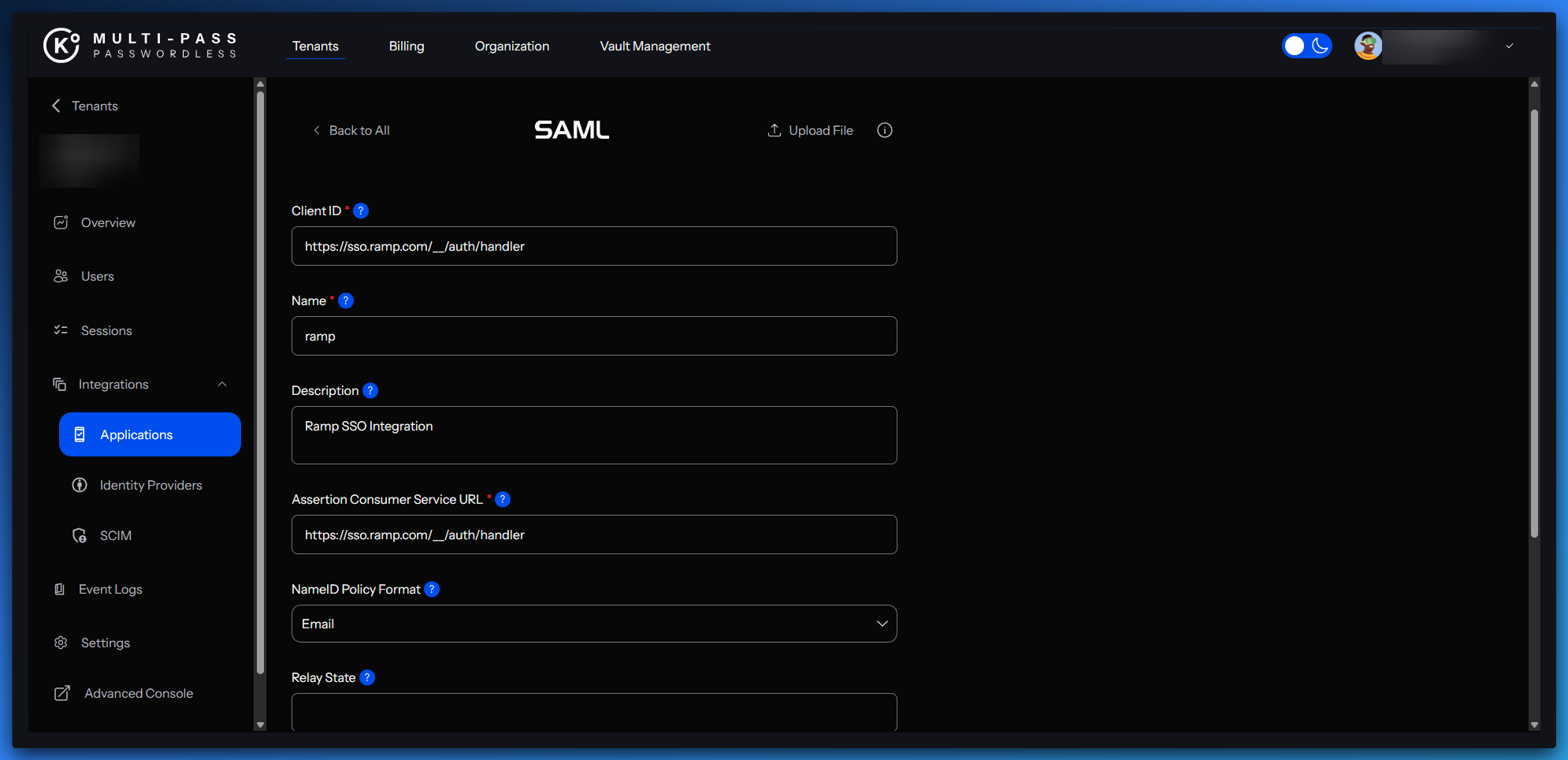

- Populate the SAML configuration fields as shown:
| Field | Value |
|---|---|
| Client ID (=SP Entity ID) | https://sso.ramp.com/__/auth/handler |
| Name | ramp |
| Description | Ramp SSO integration |
| Assertion Consumer Service URL | https://sso.ramp.com/__/auth/handler |
| NameID Policy Format | email |
- Click Add integration.

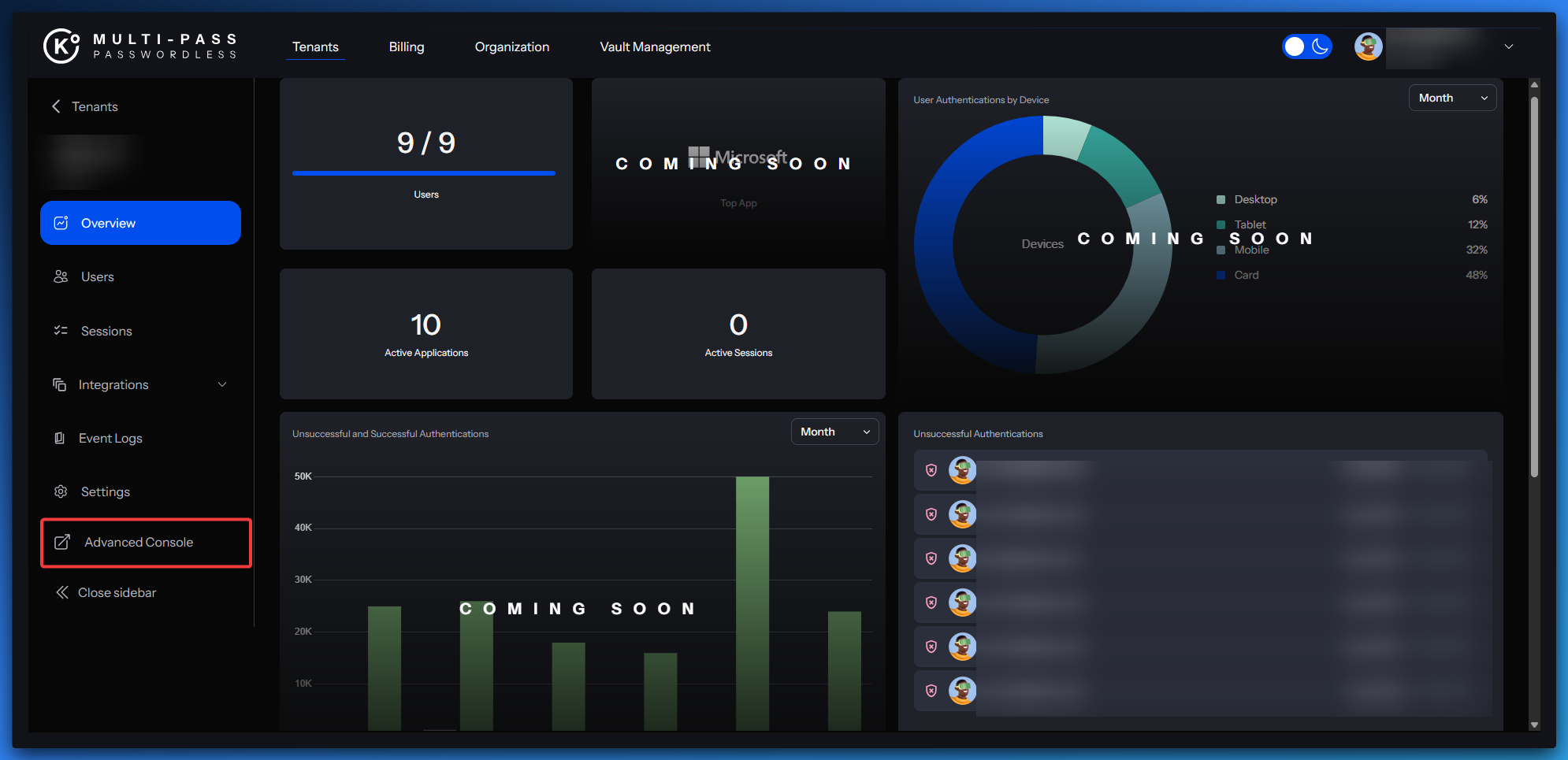

- Click Advanced Console.
- Go to Clients and search for Ramp.
- Ensure all the fields are populated based on the tables below
General settings
| Field | Value |
|---|---|
| Client ID | https://sso.ramp.com/__/auth/handler |
| Name | ramp |
| Description | Ramp SSO integration |
| Always display in UI | ON |
Access settings
| Field | Value |
|---|---|
| Home URL (IdP-initiated) | https://ca.auth.kzero.com/<TENANT_NAME>/protocol/saml/clients/<APP_NAME> |
| Valid Redirect URIs (ACS) | https://sso.ramp.com/__/auth/handler |
| IDP-Initiated SSO URL Name | <APP_NAME> |
SAML Capabilities
| Setting | Value |
|---|---|
| Name ID Format | email |
| Force Name ID Format | ON |
| Force POST Binding | ON |
| Include AuthnStatement | ON |
Signature & Encryption
| Setting | Value |
|---|---|
| Sign Documents | OFF |
| Sign Assertions | ON |

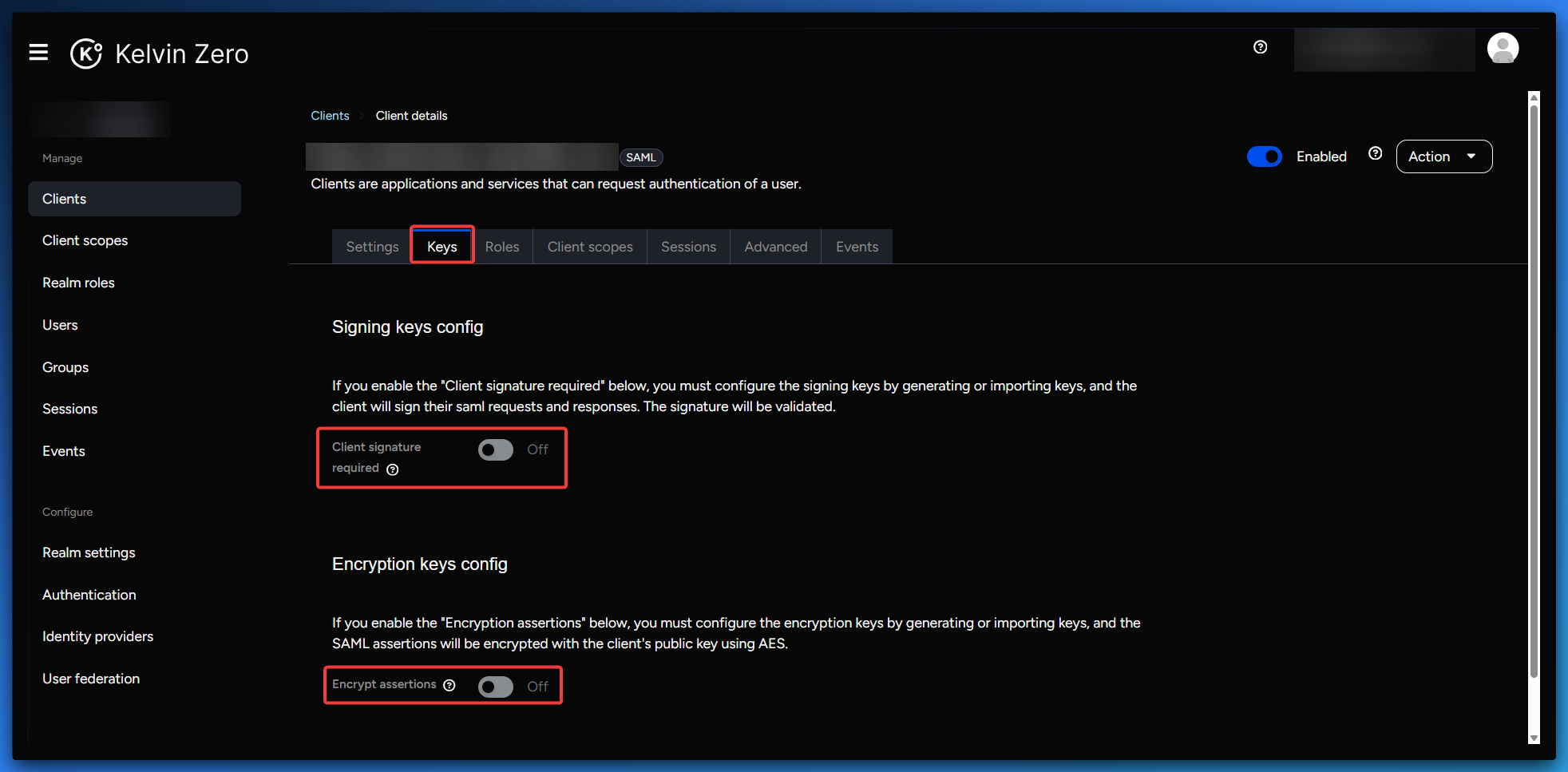

- Navigate to the Keys tab and ensure both parameters are set to OFF.
- Go to the Advanced tab and confirm:
- Assertion Consumer Service POST Binding URL =
https://sso.ramp.com/__/auth/handler
- Assertion Consumer Service POST Binding URL =
