This application has not been formally tested by Kelvin Zero Inc. It is provided solely as a reference guide. If you encounter any issues, kindly submit a ticket directly through the support desk.

This documentation provides a step-by-step guide to setting up Single Sign-On (SSO) for Moodle using Multi-Pass. SSO simplifies user authentication by allowing access to multiple applications with a single set of credentials. This integration enhances security and improves user experience across your organization.

To set up Multi-Pass with Moodle, ensure you meet the following requirements:

- Moodle admin rights
- MPAS Admin rights
- Make sure that all users intended to use SSO in Moodle are registered in your IdP and have the necessary permissions to access Moodle.

Important: Custom elements in URLs (like realm names) are case sensitive. Make sure to match the exact casing from your environment.

Moodle - SSO configuration

Step 1 - Obtain Tenant XML Metadata from Multi-Pass (IdP)

1. Open Multi-Pass Dashboard

2. Select the correct tenant and go to Integrations, click on Applications

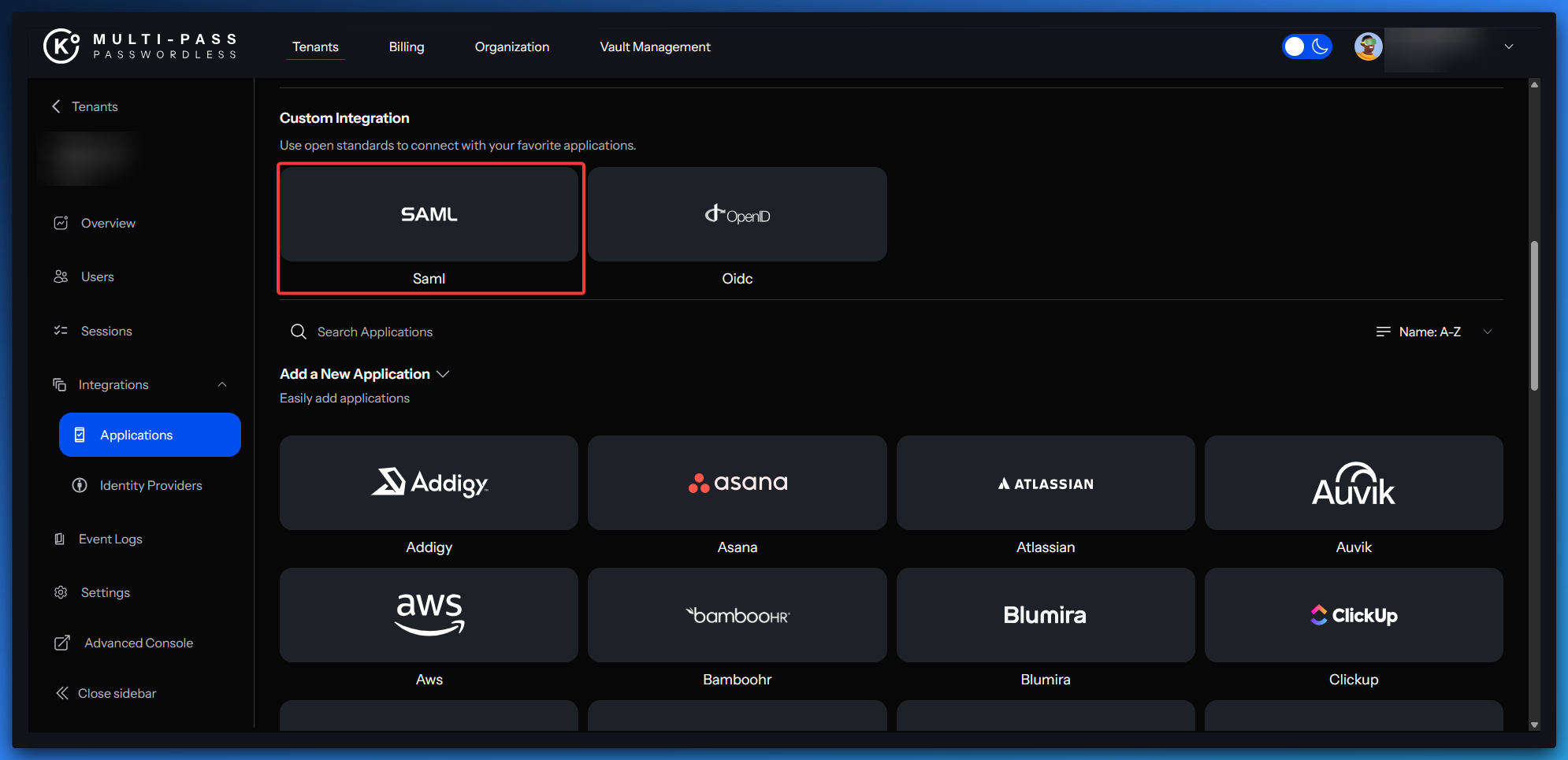

3. Select in the custom integration section SAML


• Select Download under Tenant XML data and save the file locally


Step 2 - Configure Moodle as the Service Provider (SP)

1. Download the Plugin Extension from https://www.miniorange.com/downloads/mo_saml_free.zip

2. Log into Moodle as an Administrator

3. Navigate to Site administration > Plugins > Install plugins

1. Install the Plugin Extension from the file you saved previously

4. Navigate to Site Administration > Plugins > Plugins overview

5. Click the Additional plugins tab

6. Click on Settings beside miniOrange SAML 2.0 SSO

7. Select the Service Provider Setup tab

8. Select Upload IdP Metadata

9. Beside Identity Provider Name enter Multi-Pass

10. Select Upload Metadata and upload the Tenant Metadata saved in Step 1

11. Click Save and then Test Configuration


You should be prompted with a Test Successful banner

1. Navigate to the Attribute/Role Mapping tab

2. Fill in the fields based on the table below and click Save

• Navigate to Plugins > Authentication > Manage authentication
• Click on the “eye” to enable the plugin visibility


Step 3 — Configure Multi-Pass as the Identity Provider (IdP)

• In Moodle, navigate to Site Administration > Plugins > Plugins overview
• Click the Additional plugins tab and click on Settings beside miniOrange SAML 2.0 SSO
• Click the Service Provider Metadata tab
• Click Download SP Metadata and save the file locally
• In Multi-Pass return to the screen where you downloaded the Tenant XML Metadata under Integrations > Applications > Custom SAML App

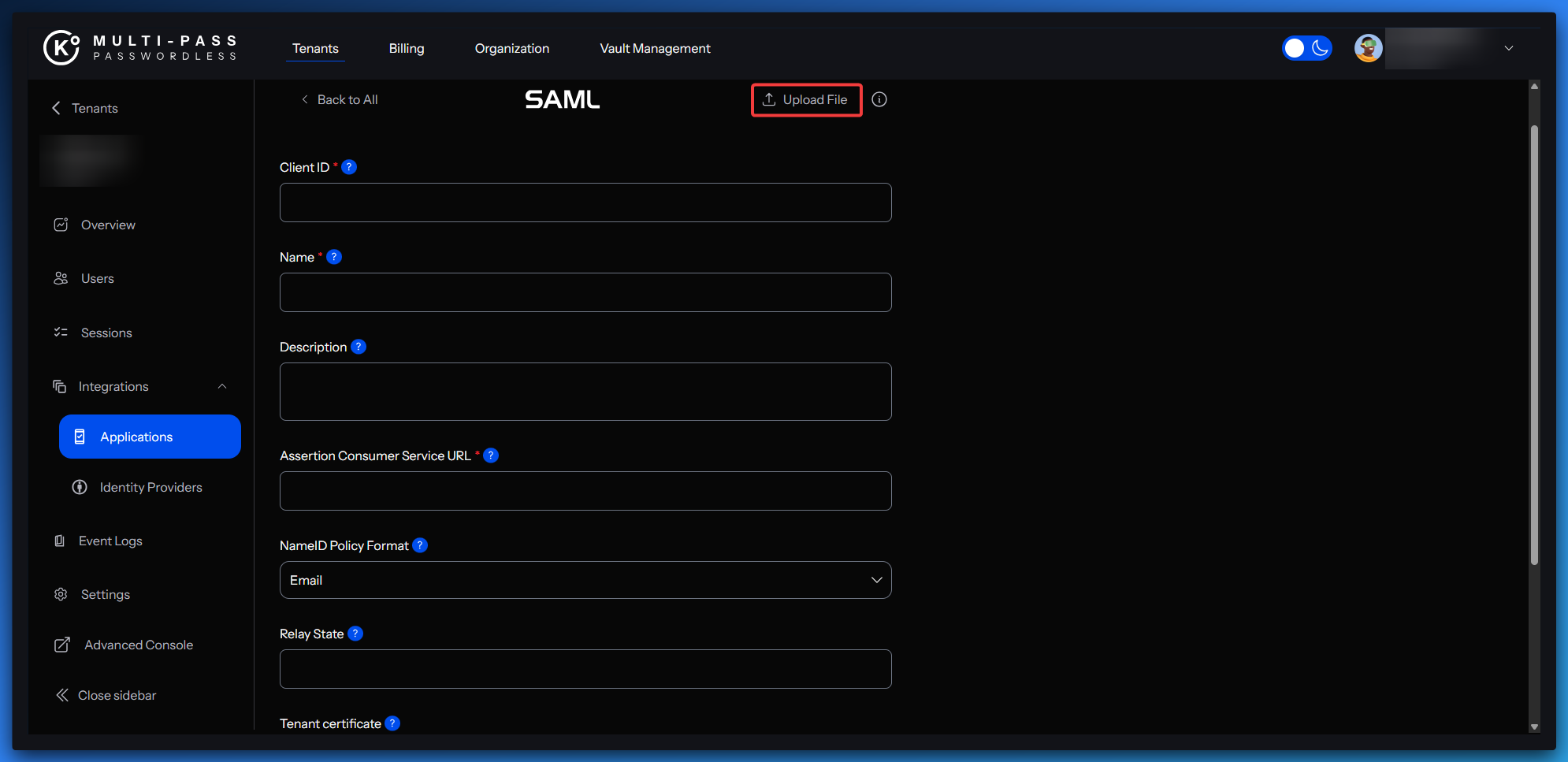

• Select Upload File and upload the Service Provider Metadata you obtained


• Confirm/Complete the remaining fields based on the table below and click Add Integration

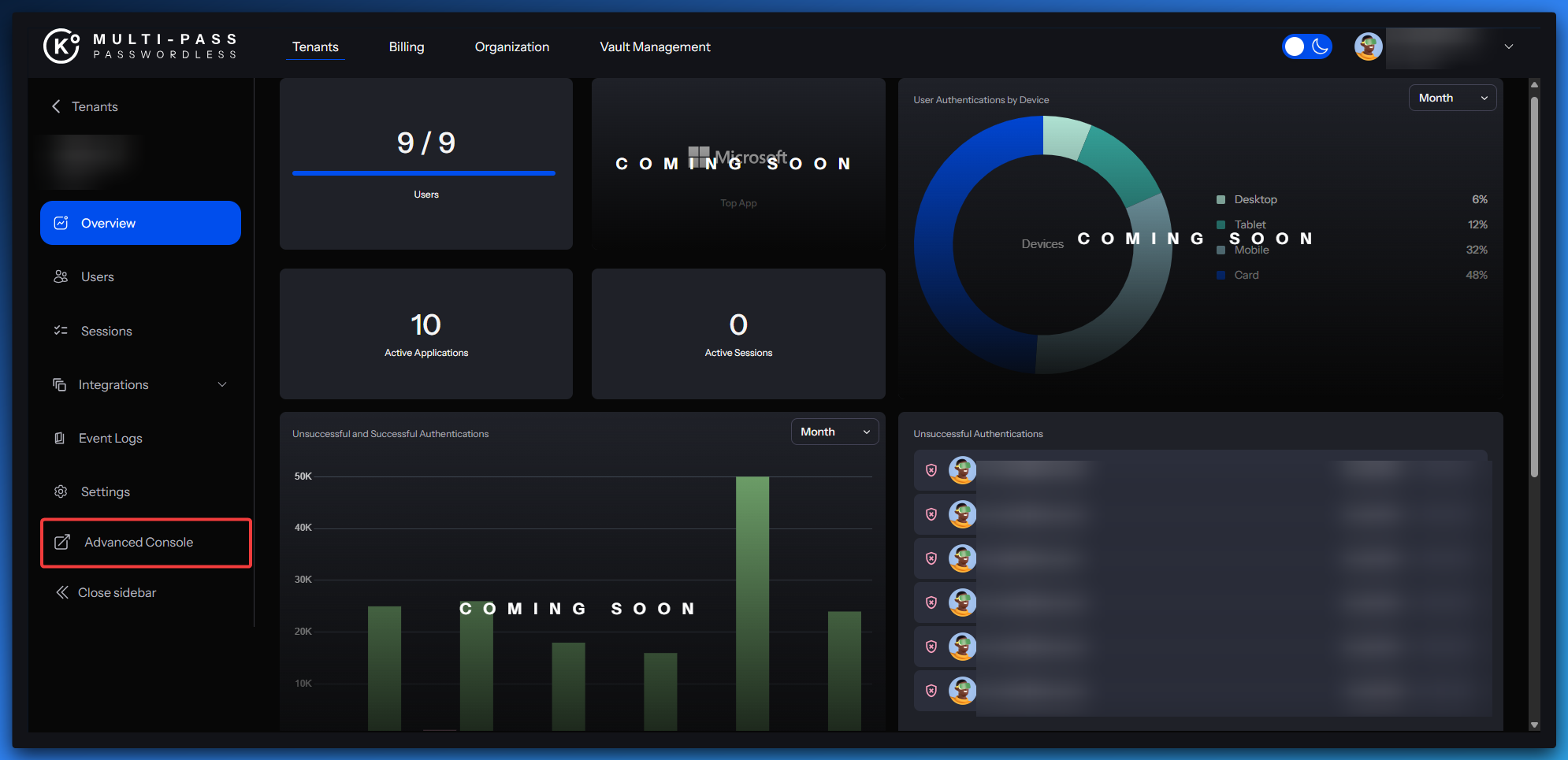

1. Go to the Advanced Console by clicking on the right side of your screen


1. Click on Client and use the search bar to look for Moodle

2. Make sure all the fields are populated

• Move to the tab Keys and ensure that both parameters are set to OFF


• Go to the Advanced tab and set Assertion Consumer Service POST Binding URL (should be the same value as Valid Redirect URI under Access Settings)
• Go to the Client Scopes tab and select the first scope in the list
• Select Add Predefined mapper and select the following:
  • email
  • givenName

  • surname
