Figma - SSO configuration
Please note that this application has not been formally tested by Kelvin Zero Inc. It is provided solely as a reference guide. If you encounter any issues, kindly submit a ticket directly through the support desk.
This documentation provides a step-by-step guide to setting up Single Sign-On (SSO) for Figma using MPAS. SSO simplifies user authentication by allowing access to multiple applications with a single set of credentials. This integration enhances security and improves user experience across your organization.
To set up Multi-Pass with Figma, ensure you meet the following requirements:
- Figma admin rights
- MPAS Admin rights
- Make sure that all users intended to use SSO in Figma are registered in your IdP and have the necessary permissions to access Figma.
Important: Custom elements in URLs (like realm names) are case sensitive. Make sure to match the exact casing from your environment.
Figma - SSO configuration
Step 1 - Figma Configuration
- Log into Figma as an Administrator.
- Go to Admin and click on Settings
- In Login and Provisioning
- Select Authentication.
- Ensure authentication is set to Members may log in with any available method (default).
- Click SAML SSO.
- Copy the Tenant ID (needed later).
Note the values for ACS URL, Entity ID, and Start URL (they contain the Tenant ID).SP - Figma SAML Values (Will be needed in MPAS)
| Field | Value |
|---|---|
| ACS URL | https://www.figma.com/saml/<TENANT_ID>/acs |
| Entity ID | https://www.figma.com/saml/<TENANT_ID> |
| Start URL | https://www.figma.com/saml/<TENANT_ID>/login |
| Tenant ID | <TENANT_ID> |
- Click Edit configuration
- In the Identity provider (IdP) section, select Other
- and complete the fields by importing the SAML metadata from MPAS or with the information below :
- IdP Entity ID = https://ca.auth.kzero.com/realms/<TENANT_NAME>
- IdP SSO Target URL = https://ca.auth.kzero.com/realms/<TENANT_NAME>/protocol/saml
- For Signing certificate, click Choose file (You will download it in MPAS in the step below)
- Click Review
- Check the This information is correct box.
- Click Configure SAML SSO.
Step 2 - Multi-Pass Configuration

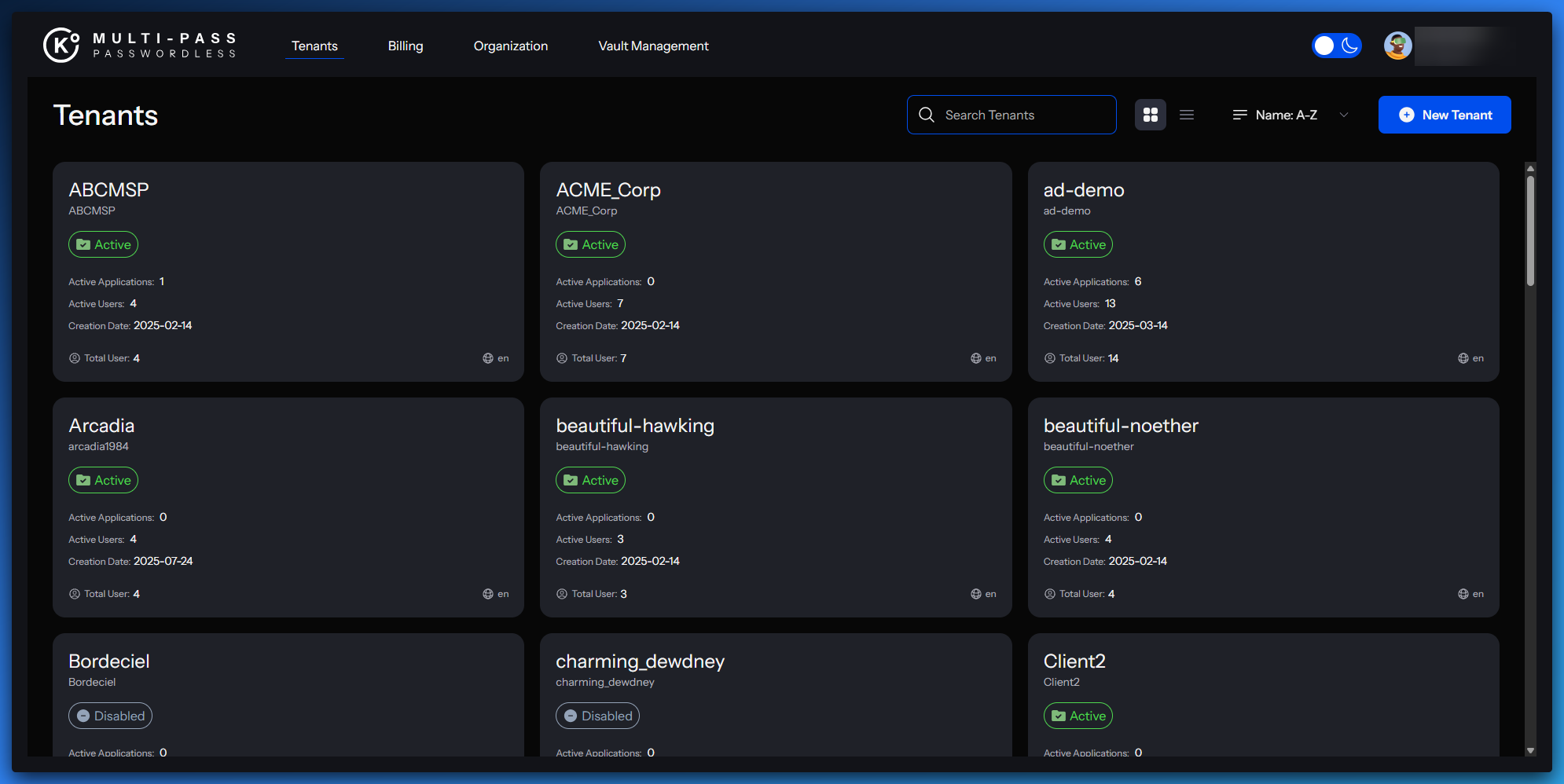

- Select your tenant and click on Integrations
- Select Applications.

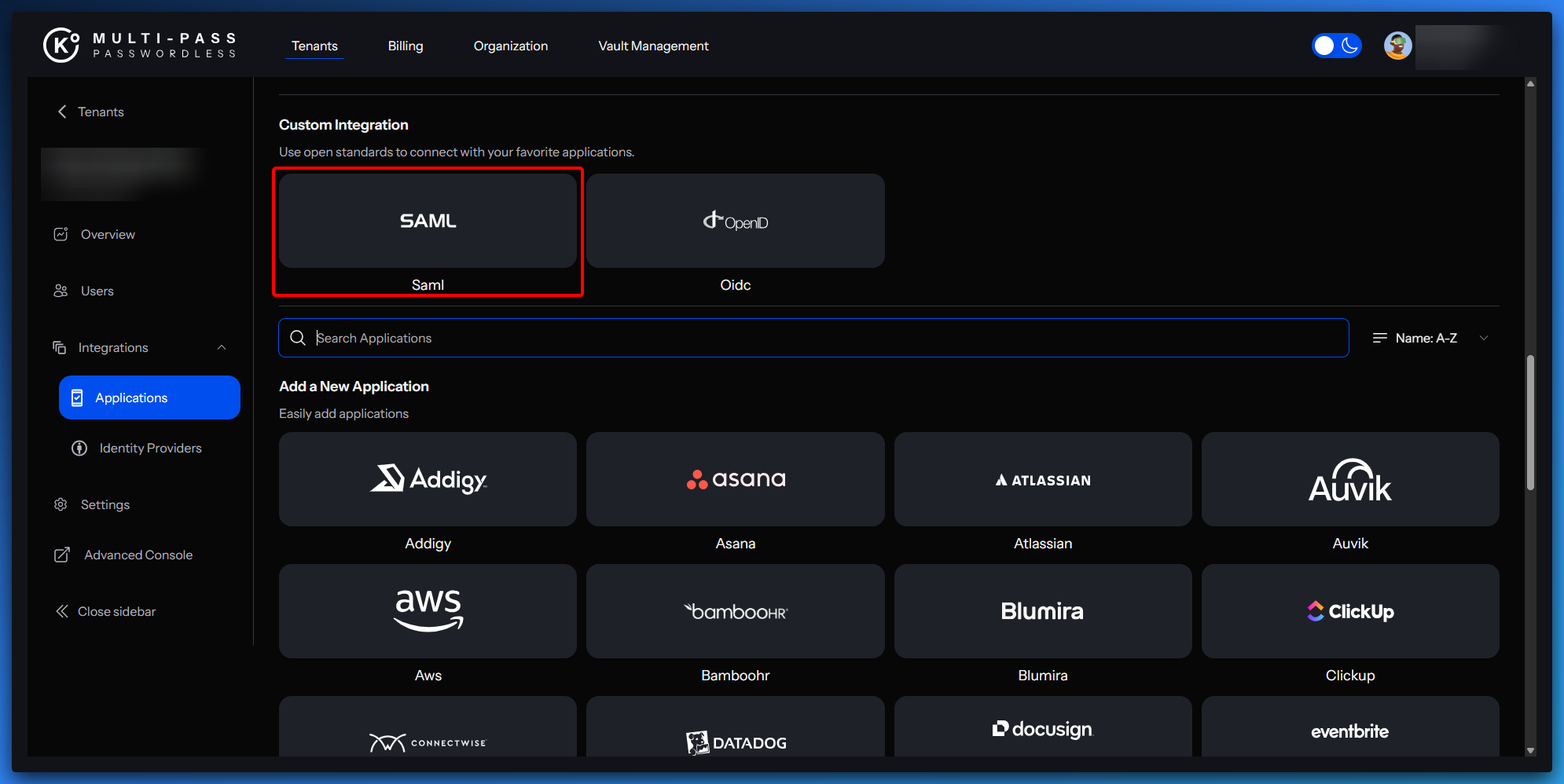

- Choose SAML under Custom Integrations.
- Enter the values from Figma (ACS URL, Entity ID, Start URL)
SAML — Form values (Multi-Pass)
| Field | Value |
|---|---|
| Client ID (= Entity ID) | https://www.figma.com/saml/<TENANT_ID> |
| Name | Figma |
Description | SSO integration |
| Assertion Consumer Service URL | https://www.figma.com/saml/<TENANT_ID>/acs |
| NameID Policy Format | email |

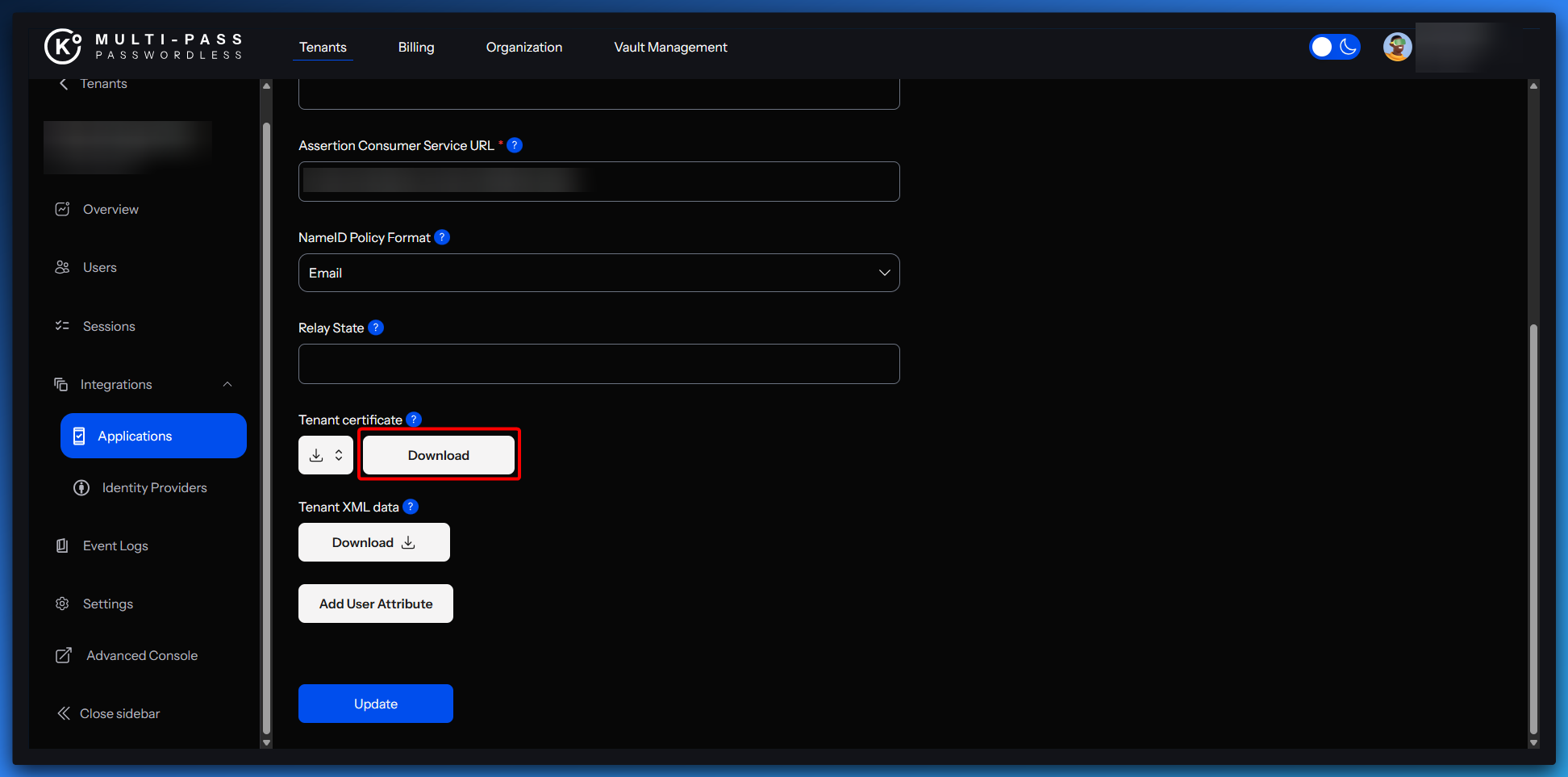

- Download Tenant certificate (will be uploaded into Figma).
- Click Add Integration.

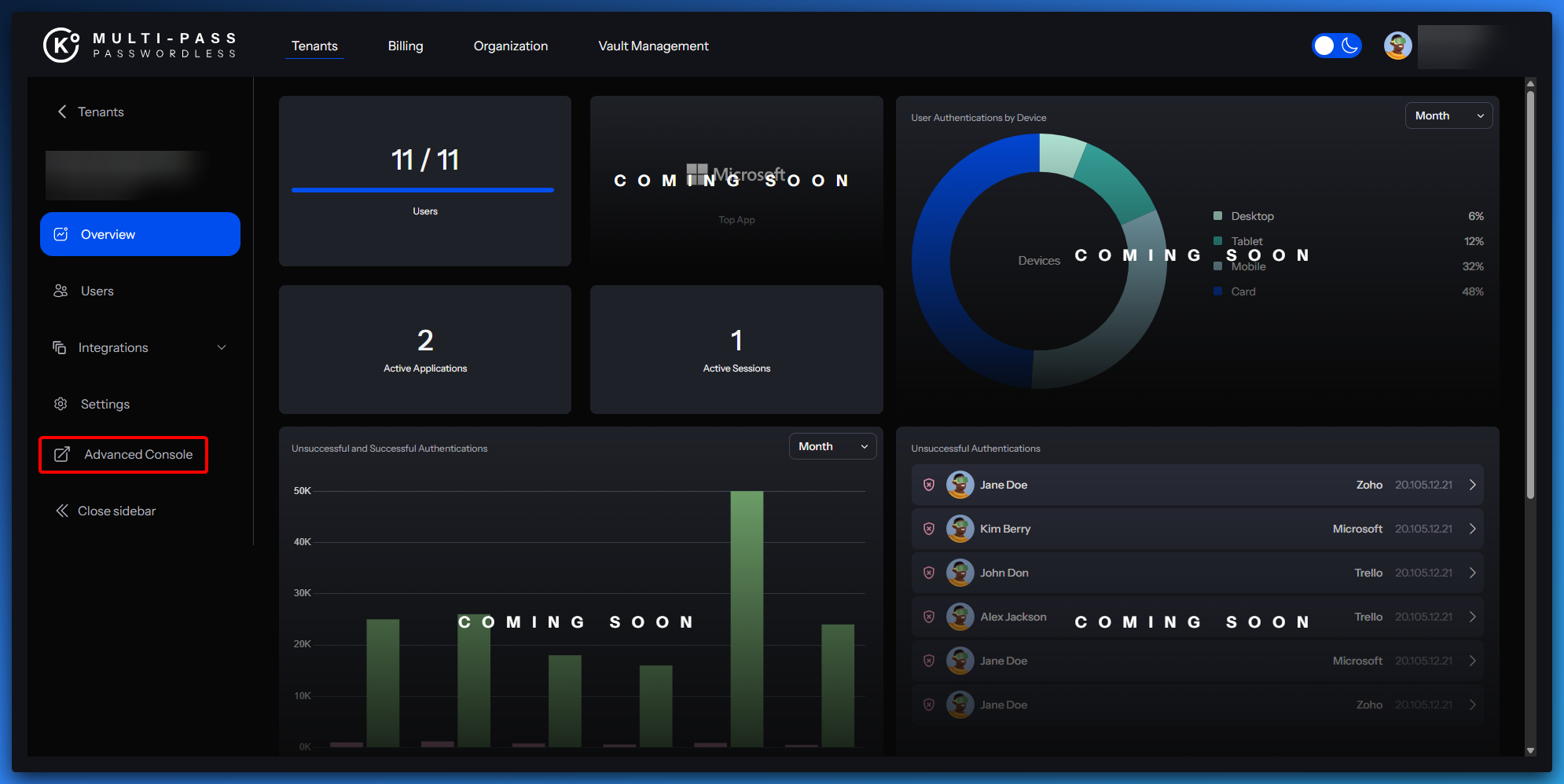

- Go to the advanced console by clicking on the left side of your screen
- Click on Client and use the search bar to look for Figma.
- Click on the line and verify the following section :
General settings
| Field | Value |
|---|---|
| Client ID | https://www.figma.com/saml/<TENANT_ID> |
| Name | Figma |
Description | SSO integration |
| Always Display in UI | ON |
Access settings
| Field | Value |
|---|---|
Home URL | |
| Valid Redirect URIs (ACS) | https://www.figma.com/saml/<TENANT_ID>/acs |
| IdP-Initiated URL | <APP_Name> |
SAML Capabilities
| Setting | Value |
|---|---|
Name ID format | Email |
| Force NameID Format | ON |
| Force POST Binding | ON |
| Include AuthnStatement | ON |
Signature & Encryption
| Setting | Value |
|---|---|
| Sign Documents | OFF |
| Sign Assertions | ON |
- Move to the tab called "Keys" and make sure both parameters are switched to OFF
- Then move to the "advanced" tab
- Assertion Consumer Service POST Binding URL = Valid Redirect URIs (ACS) = https://www.figma.com/saml/<TENANT_ID>/acs
- Now move to the tab "Client scope"
- Click on the first line

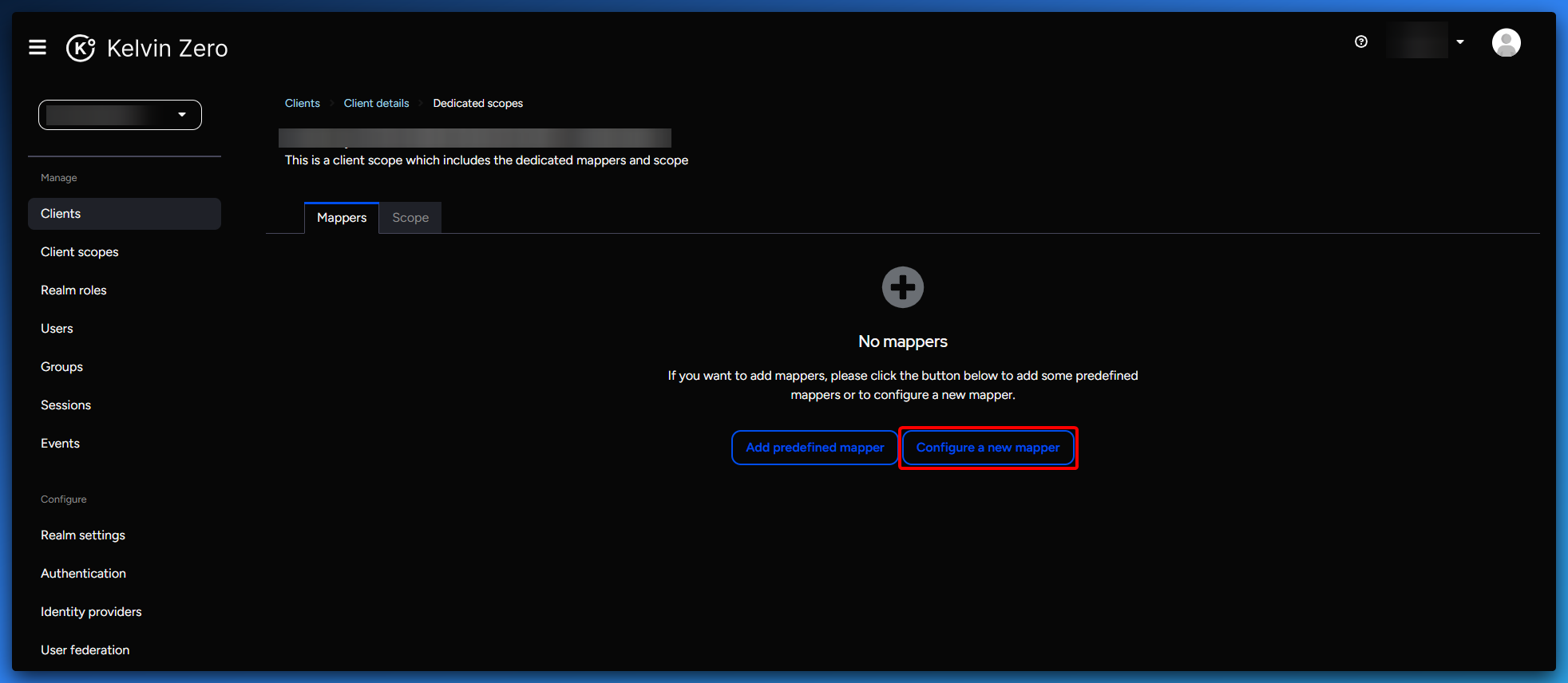

- Click on configure a new mapper

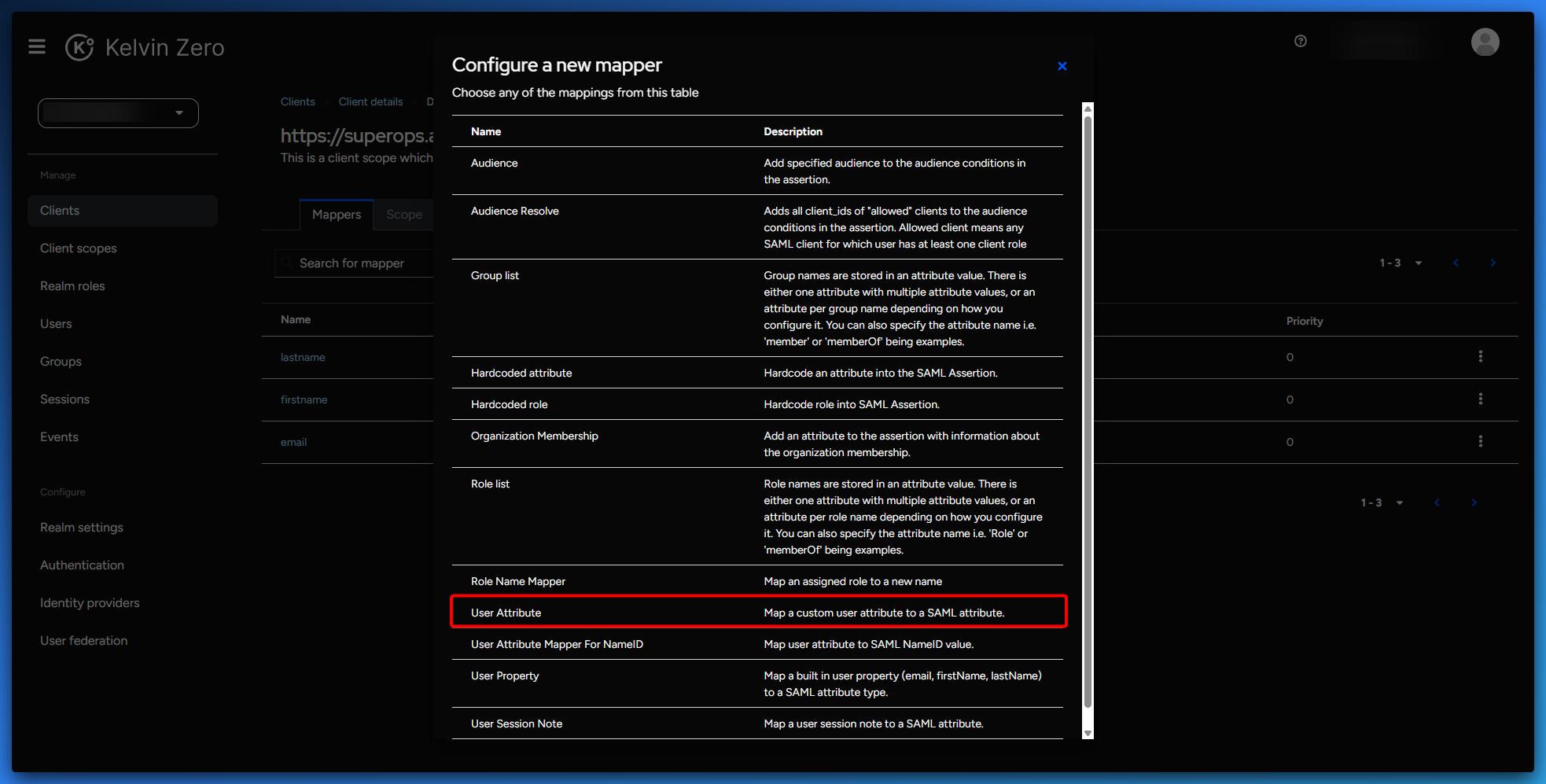

- Select User Attribute and complete the form
familyName
| Field | Value |
|---|---|
| Mapper Type | User Attribute |
| Name | familyName |
| User Attribute | lastName |
| Friendly Name | familyName |
| SAML Attribute Name / OIDC Claim | familyName |
givenName
| Field | Value |
|---|---|
| Mapper Type | User Attribute |
| Name | givenName |
| User Attribute | firstName |
| Friendly Name | givenName |
| SAML Attribute Name / OIDC Claim | givenName |
Step 3 - Testing the Integration
- Create a test user in Figma.
- Create the same test user in Multi-Pass with identical email.
- Test login via SSO from the Figma login page.
- Validate that attributes (email, firstName, lastName, title, groups if applicable) are correctly passed.
