DRATA - SSO configuration
Please note that this application has not been formally tested by Kelvin Zero Inc. It is provided solely as a reference guide. If you encounter any issues, kindly submit a ticket directly through the support desk.
This documentation provides a step-by-step guide to setting up Single Sign-On (SSO) for Drata using MPAS. SSO simplifies user authentication by allowing access to multiple applications with a single set of credentials. This integration enhances security and improves user experience across your organization.
To set up Multi-Pass with Drata, ensure you meet the following requirements:
- Drata admin right
- MPAS Admin rights
- Make sure that all users intended to use SSO in Drata are registered in your IdP and have the necessary permissions to access Drata.
Important: Custom elements in URLs (like realm names) are case sensitive. Make sure to match the exact casing from your environment.
DRATA - SSO configuration
Step 1 — Configure in Drata (Service Provider)
- Log in to the Drata Admin Dashboard
- Go to Settings
- Navigate to Authentication / Single Sign-On
- Enable SSO via Identity Provider (WorkOS)
- Choose SAML as the authentication method
Drata SAML Values
| Field | Value |
|---|---|
| SP Entity ID | <PROVIDED_BY_DRATA_WORKOS> |
| Assertion Consumer Service (ACS) URL | <PROVIDED_BY_DRATA_WORKOS> |
| NameID Format | EmailAddress |
Identity Provider Details to Enter in Drata
| Field | Value |
|---|---|
| IdP Entity ID | https://ca.auth.kzero.com/realms/<TENANT_NAME> |
| IdP SSO URL | https://ca.auth.kzero.com/realms/<TENANT_NAME>/protocol/saml |
| X.509 Certificate | -----BEGIN CERTIFICATE----- [Paste the certificate from the XML] -----END CERTIFICATE----- |
Step 2 — Configure in Multi-Pass (Identity Provider)

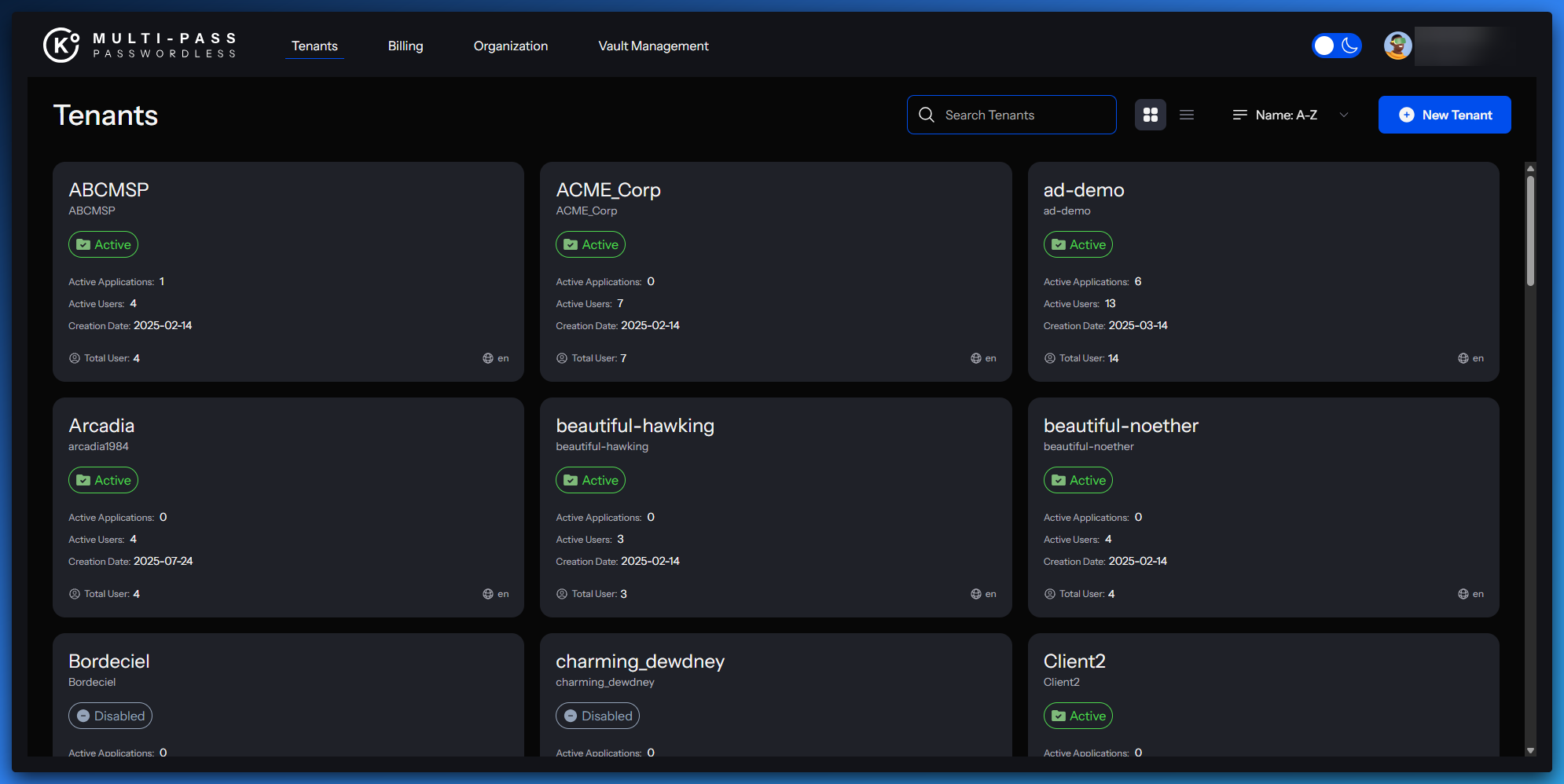

- Select your tenant.
- Go to Integrations.
- Click on Applications.

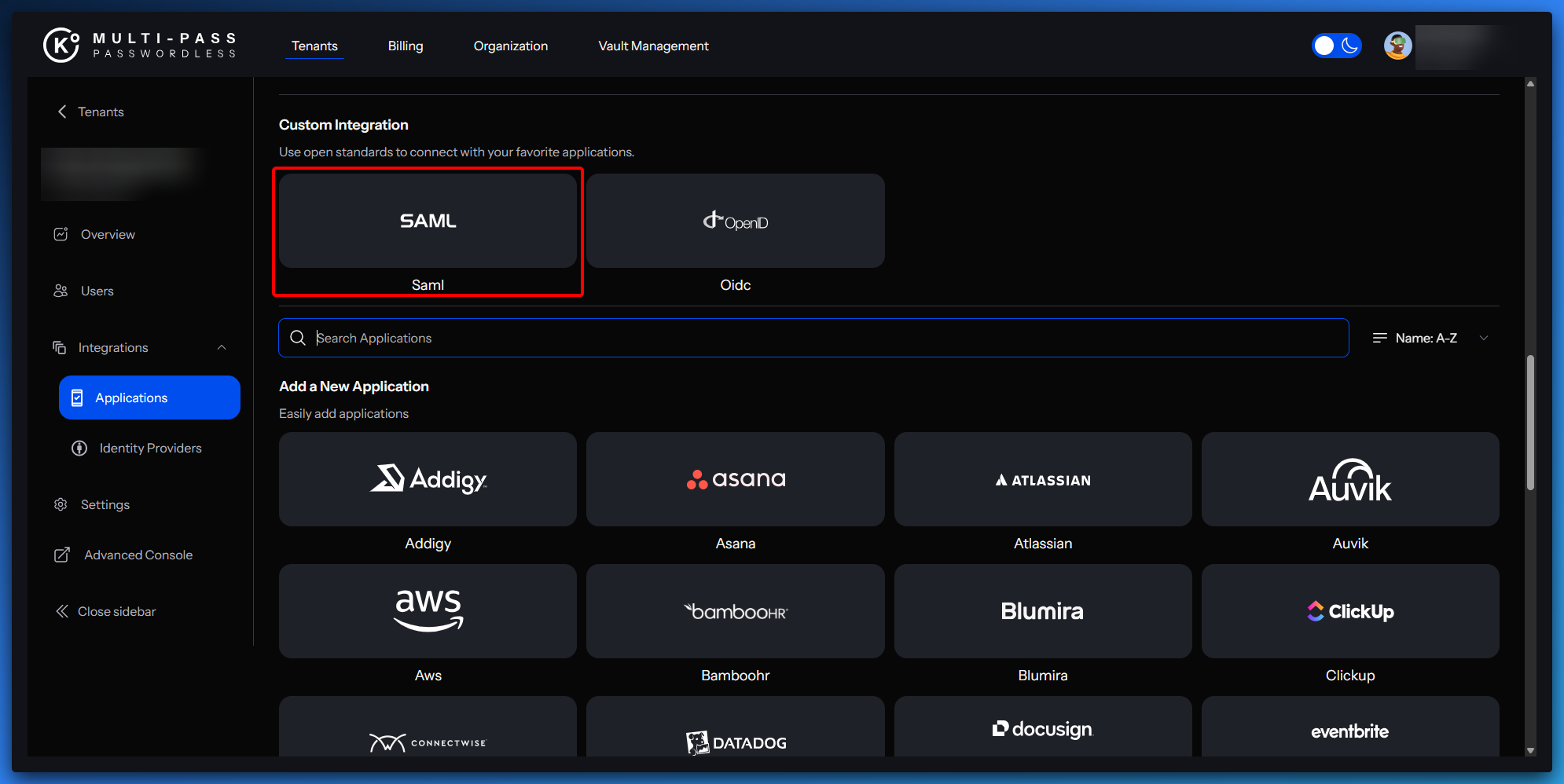

- In the Custom section, choose SAML.
- You will arrive on the form to complete.
| Field | Value |
|---|---|
| Name | Drata |
| Description | SSO SAML integration for Drata |
| SP Entity ID | <PROVIDED_BY_DRATA_WORKOS> |
| Assertion Consumer Service (ACS) URL | <PROVIDED_BY_DRATA_WORKOS> |
| NameID Format | EmailAddress |
- Click on Add integration

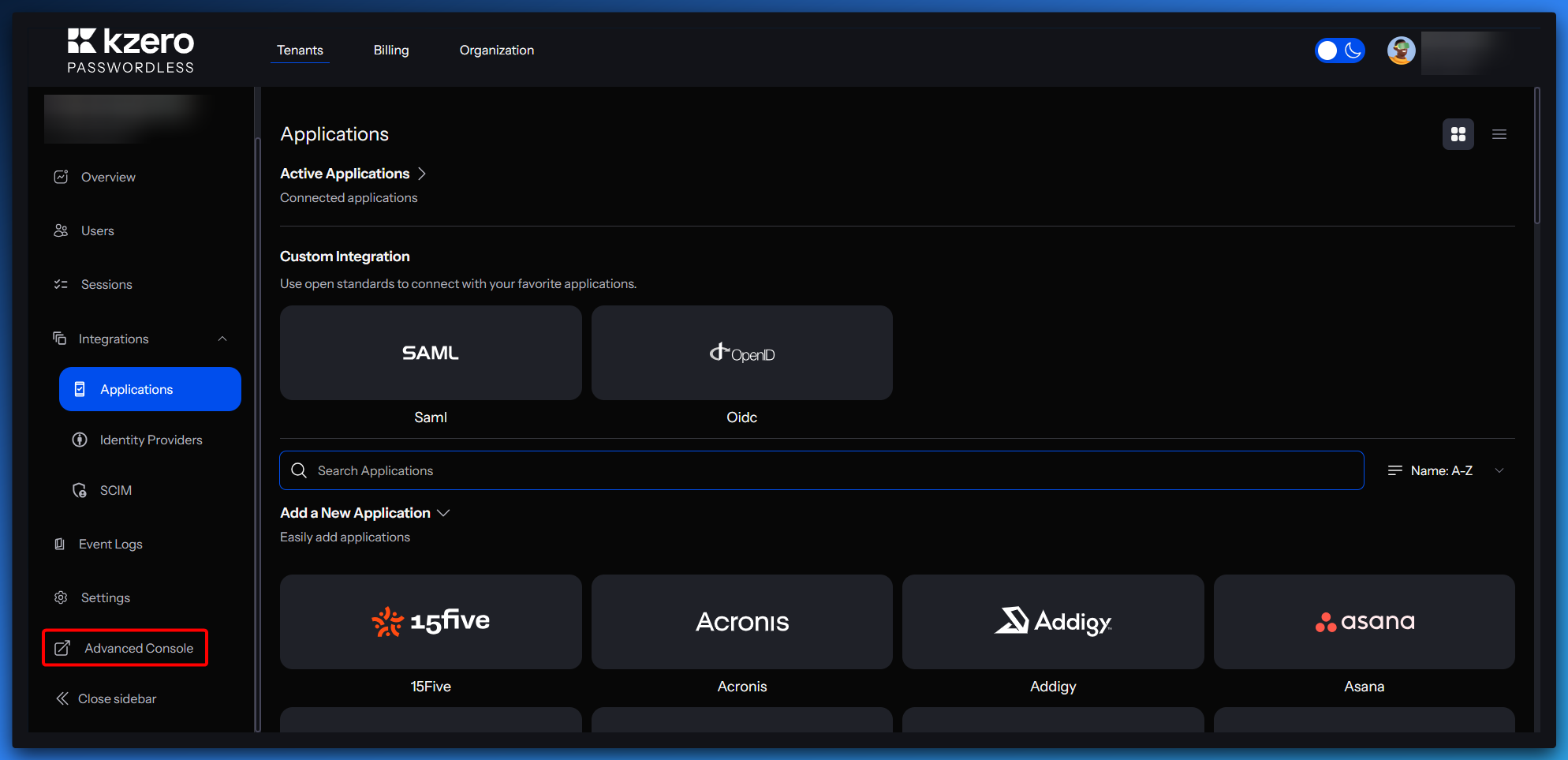

- Click on Advanced Console.

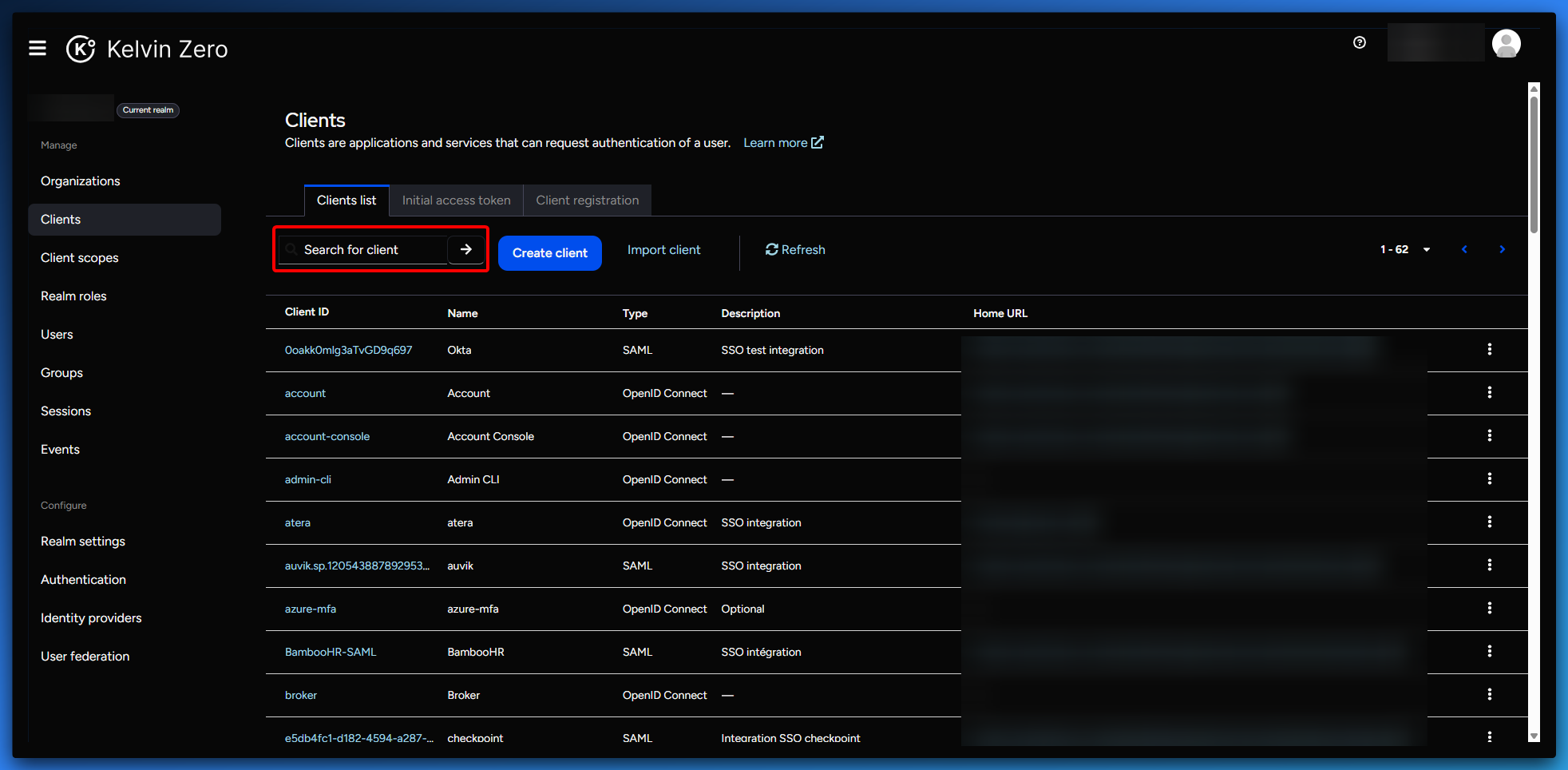

- Select Client, search for the integration you just created.
- Verify the following input :
General settings
| Field | Value |
|---|---|
| Client ID | Auto-generated |
| Name | Drata |
| Description | SSO SAML integration for Drata |
| Always Display in UI | ON |
Access settings
| Field | Value |
|---|---|
| Home URL | https://ca.auth.kzero.com/realms/<TENANT_NAME>/protocol/saml/clients/Drata |
| Valid Redirect URIs | <ACS_URL_FROM_DRATA> |
| IDP-Initiated SSO URL Name | Drata |
SAML Capabilities
| Setting | Value |
|---|---|
| Force Name ID Format | ON |
| Force POST Binding | ON |
| Include AuthnStatement | ON |
Signature & Encryption
| Setting | Value |
|---|---|
| Sign Documents | OFF |
| Sign Assertions | ON |
- Now that you have checked the different parameters, change to the tab called Keys.
- Make sure that both parameters are switched to OFF.
- Now go to the Advanced tab.
- The field Assertion Consumer Service POST Binding URL must equal the Valid Redirect URIs (ACS).
