This application has not been formally tested by Kelvin Zero Inc. It is provided solely as a reference guide. If you encounter any issues, kindly submit a ticket directly through the support desk.

This documentation provides a step-by-step guide to setting up Single Sign-On (SSO) for Delinea Privileged Access Service (PAS) using Multi-Pass. SSO simplifies user authentication by allowing access to multiple applications with a single set of credentials. This integration enhances security and improves user experience across your organization.

To set up Multi-Pass with Delinea PAS, ensure you meet the following requirements:

- Delinea PAS admin rights

- MPAS Admin rights

- Make sure that all users intended to use SSO in Delinea PAS are registered in your IdP and have the necessary permissions to access Delinea PAS.

Important: Custom elements in URLs (like realm names) are case sensitive. Make sure to match the exact casing from your environment.

Delinea Privileged Access Service - SSO Configuration

Step 1 - Configure Delinea PAS as the Service Provider (SP)

• Log in to your Delinea PAS site as an administrator.

• Navigate to Settings > Users > Partner Management and click Add.
• Under Settings set the following values:
  • Partner Name = Multi-Pass SSO
  • Federation Type = SAML 2.0
• Under Federation Domains click Add and enter the company’s domain.
• In the left panel, select Inbound Metadata.
• Select Option 1: Upload IdP configuration from URL.
• Insert the tenant’s SAML Metadata URL

• https://ca.auth.kzero.com/realms/<TENANT_NAME>/protocol/saml/descriptor

• Click Save.
• In the left panel, select Outbound Metadata.
• Select Option 2: Download Service Provider Metadata and save the XML file locally.


Step 2 - Configure Multi-Pass as the Identity Provider (IdP)

• Open Multi-Pass Dashboard

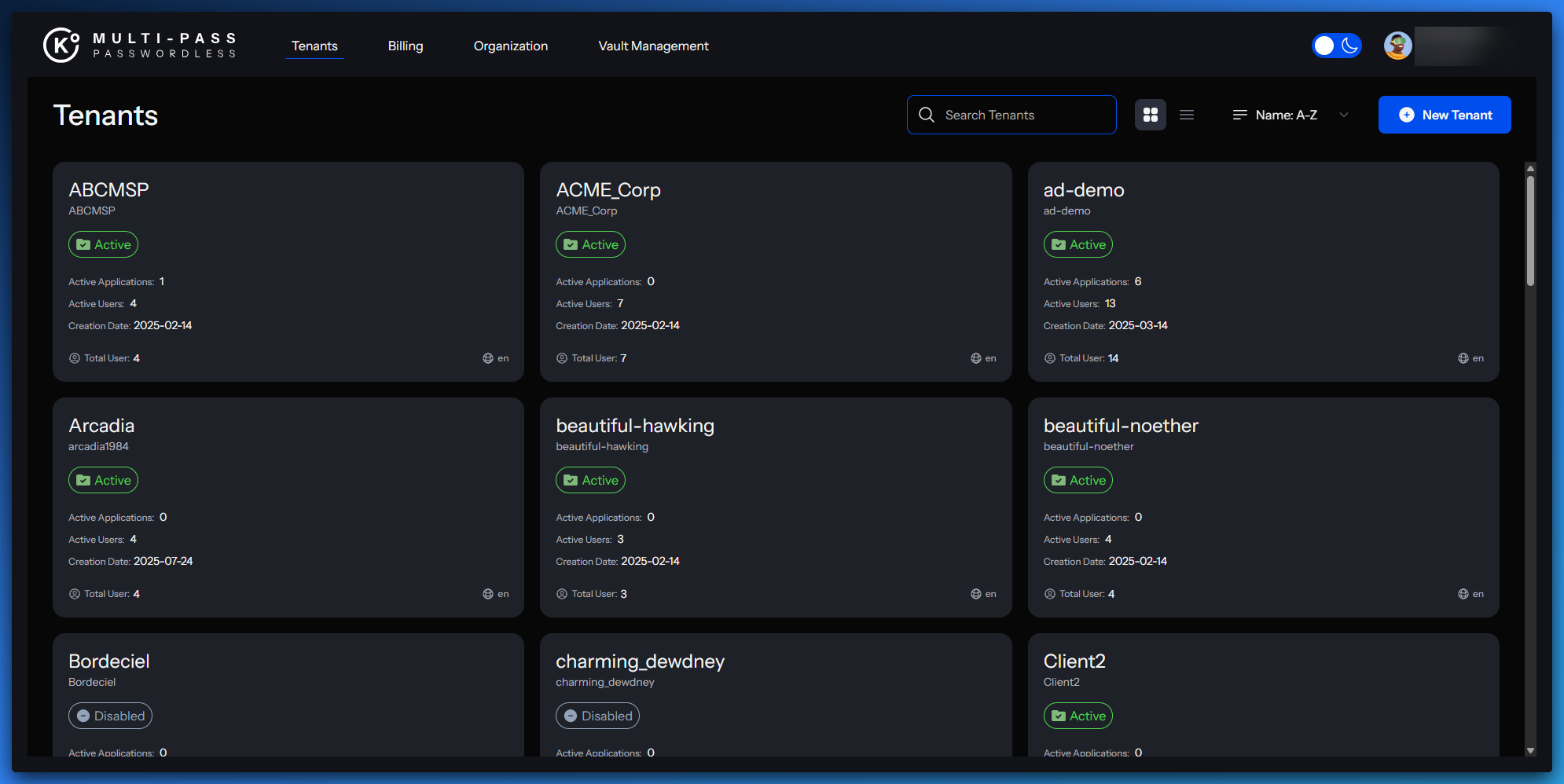

• Select the correct tenant and go to Integrations, then click on Applications.

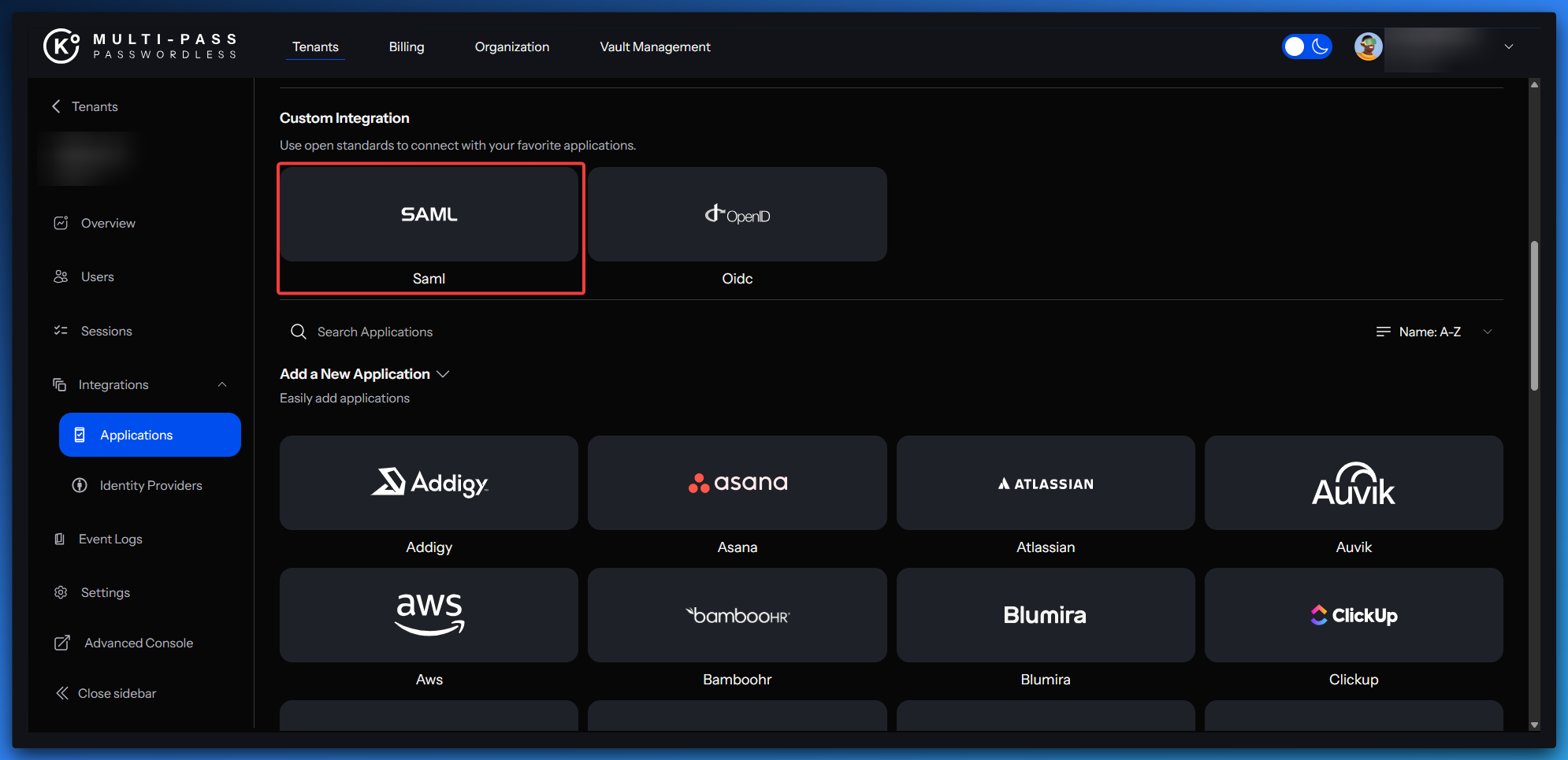

• Select SAML in the custom integration section.

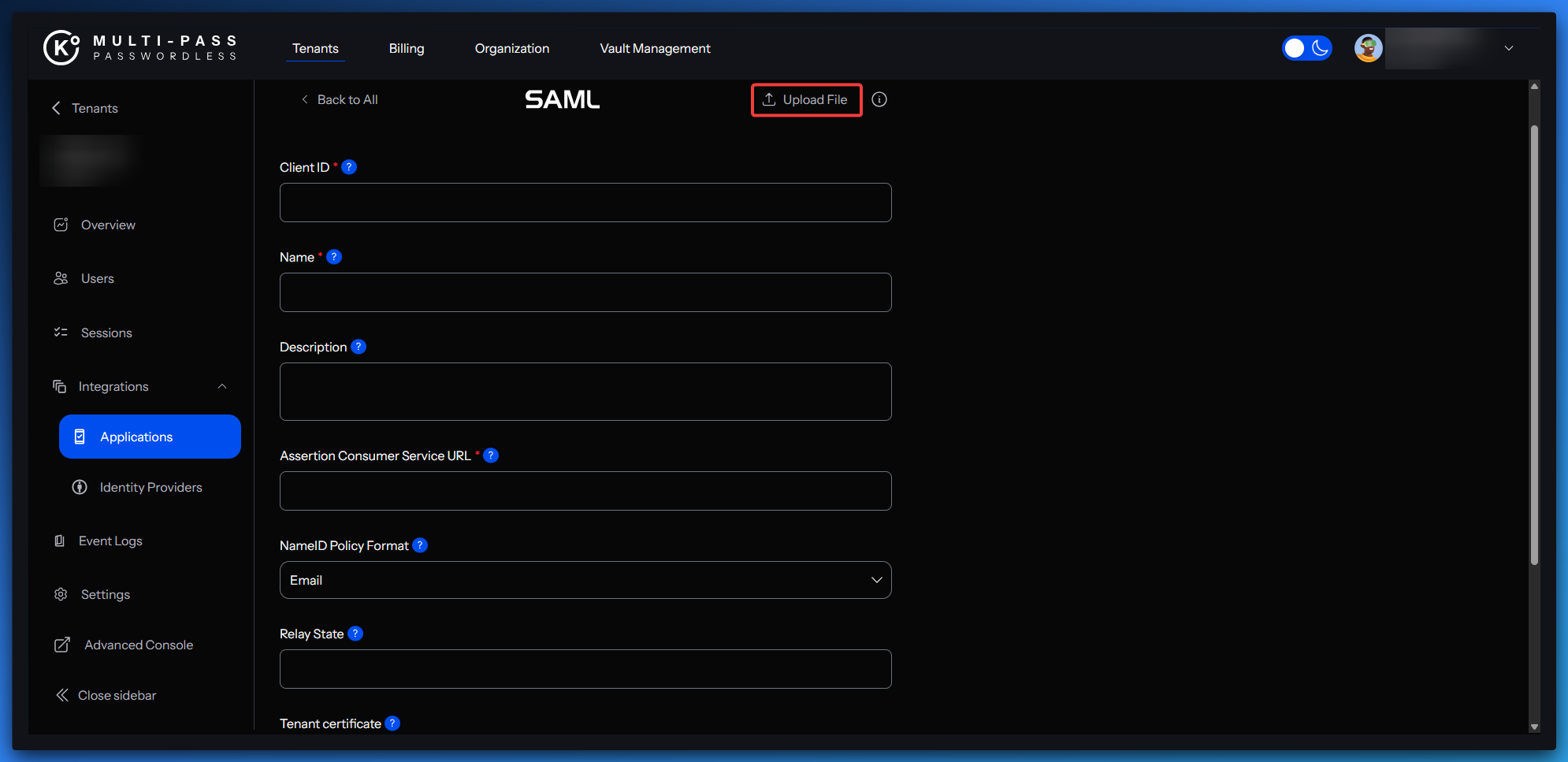

• Select Upload File and upload the XML metadata file obtained from Delinea PAS.

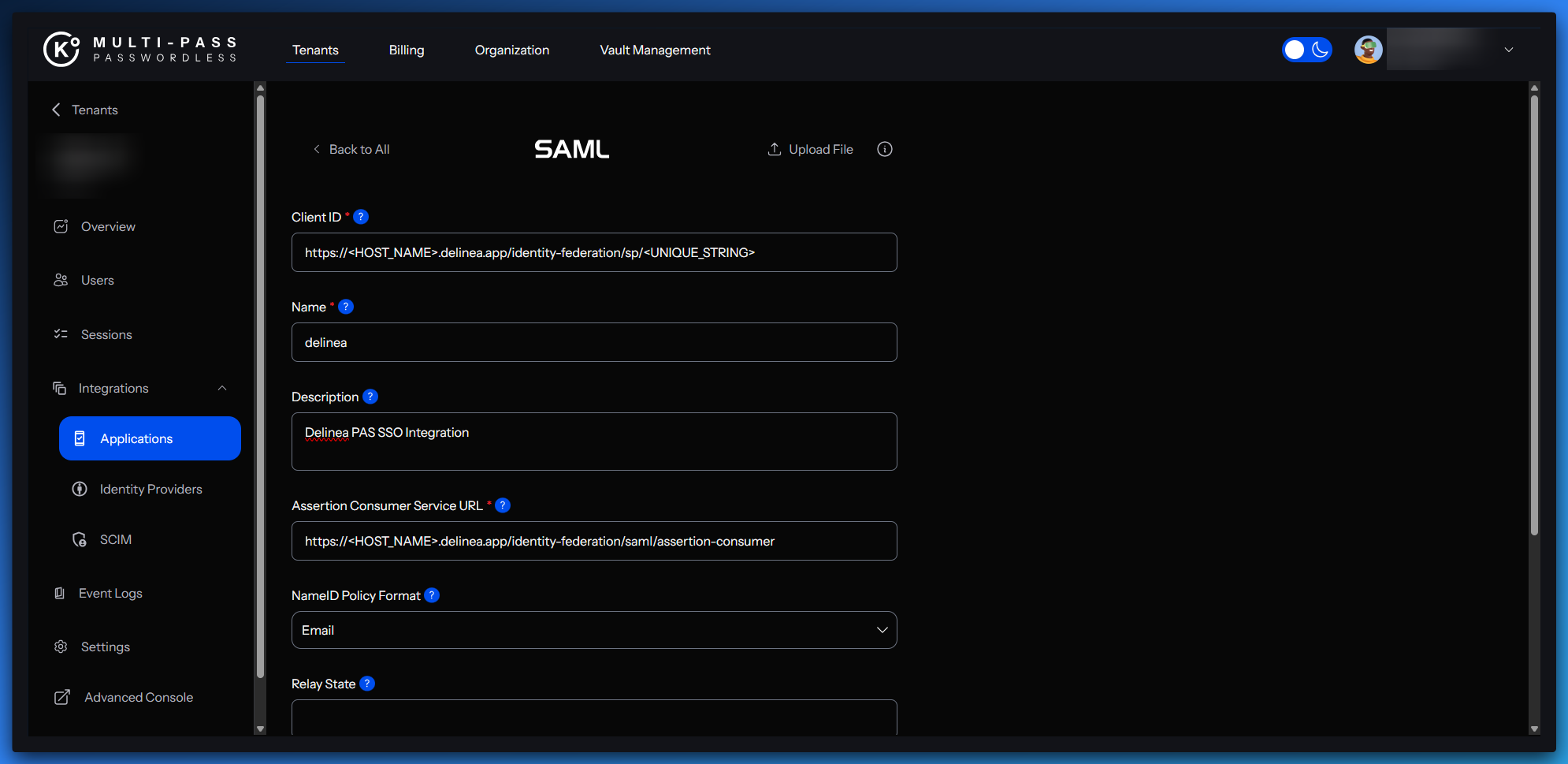

• Confirm/Complete the remaining fields based on the table below:


Field	Value
Client ID (=SP Entity ID)	https://<HOST_NAME>.delinea.app/identity-federation/sp/<UNIQUE_STRING>
Name	delinea
Description	Delinea PAS SSO integration
Assertion Consumer Service URL	https://<HOST_NAME>.delinea.app/identity-federation/saml/assertion-consumer
NameID Policy Format	email

1. Click Add Integration

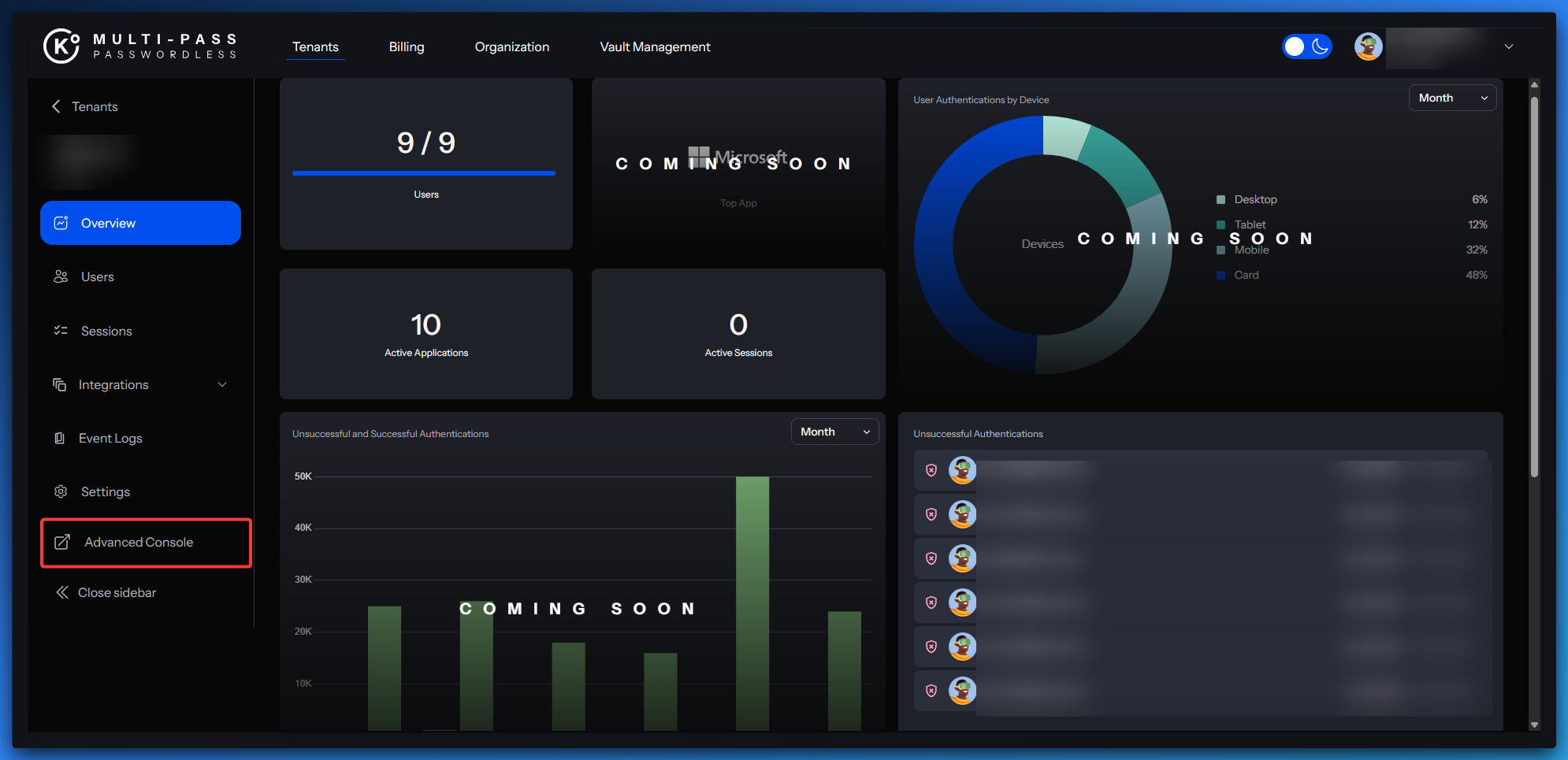

2. Go to the Advanced Console by clicking in the right side of your screen


1. Click on Client and use the search bar to look for Delinea

2. Make sure all the fields are populated according to the tables below

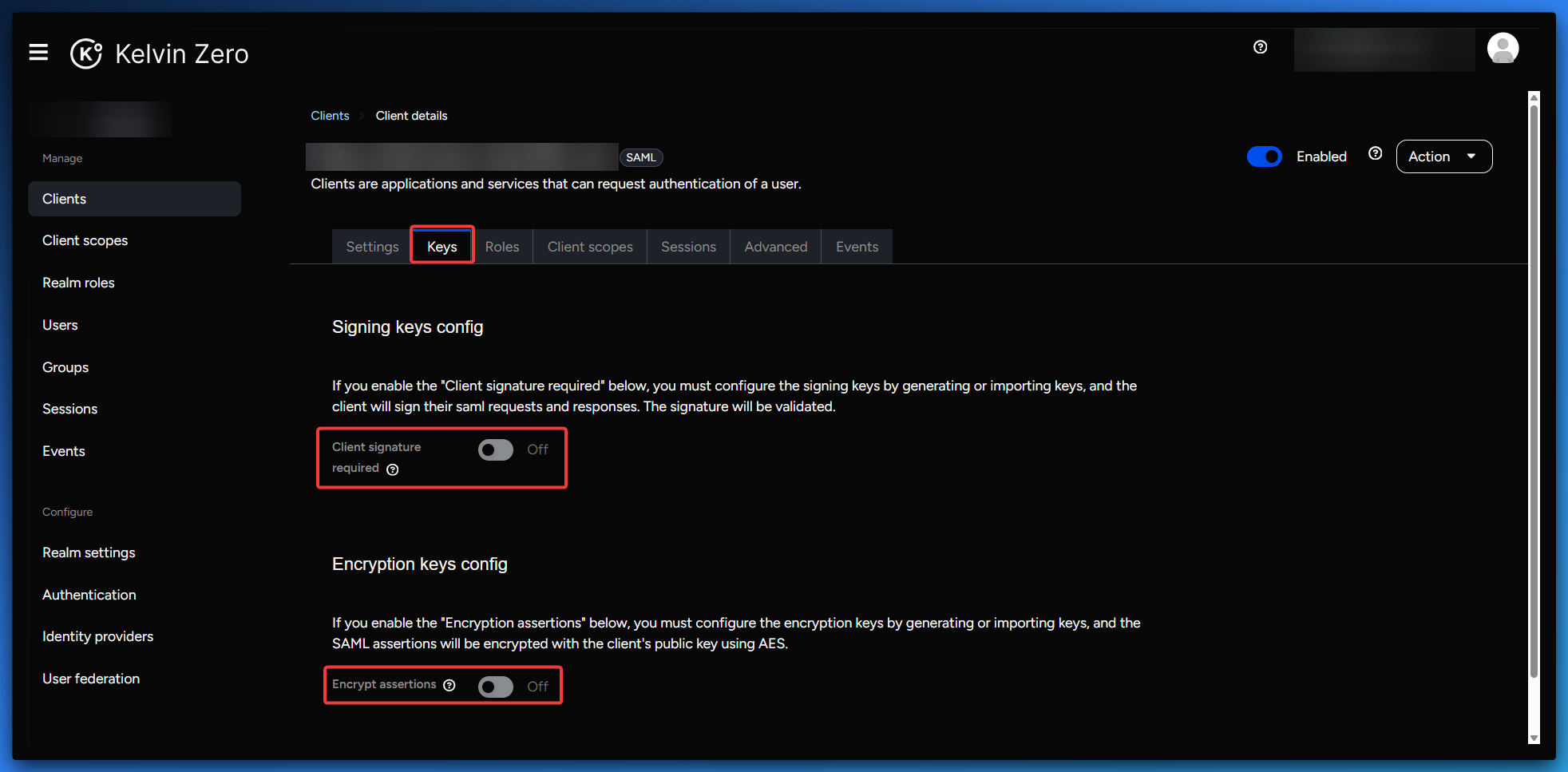

• Move to the Keys tab and ensure both parameters are set to OFF.


• Go to the Advanced tab:
  • Set Assertion Consumer Service POST Binding URL = https://<HOST_NAME>.delinea.app/identity-federation/saml/assertion-consumer (must match Valid Redirect URI under Access Settings).
