Coupa - SSO configuration
Please note that this application has not been formally tested by Kelvin Zero Inc. It is provided solely as a reference guide. If you encounter any issues, kindly submit a ticket directly through the support desk.
This documentation provides a step-by-step guide to setting up Single Sign-On (SSO) for Coupa using MPAS. SSO simplifies user authentication by allowing access to multiple applications with a single set of credentials. This integration enhances security and improves user experience across your organization.
To set up Multi-Pass with Coupa, ensure you meet the following requirements:
- Coupa admin rights
- MPAS Admin rights
- Make sure that all users intended to use SSO in Coupa are registered in your IdP and have the necessary permissions to access Coupa.
Important: Custom elements in URLs (like realm names) are case sensitive. Make sure to match the exact casing from your environment.
Coupa - SSO configuration
Step 1 - Configure Coupa as the Service Provider (SP)
- Log into Coupa as an Administrator.
- Browse to Setup,
- Company Setup, Select Security Controls
- Click on Sign in using SAML.
- Download the Coupa SP metadata XML.
- Upload the Multi-Pass Tenant XML file.
- The steps to get the XML file will be describe in the steps below
- Click Save and Enable.
SP Values
| Field | Value |
|---|---|
| Entity ID | https://<COUPA_SUBDOMAIN>.coupahost.com |
| Assertion Consumer Service (ACS) URL | https://<COUPA_SUBDOMAIN>.coupahost.com/sp/acs.saml2 |
Step 2 - Configure Multi-Pass as the Identity Provider (IdP)

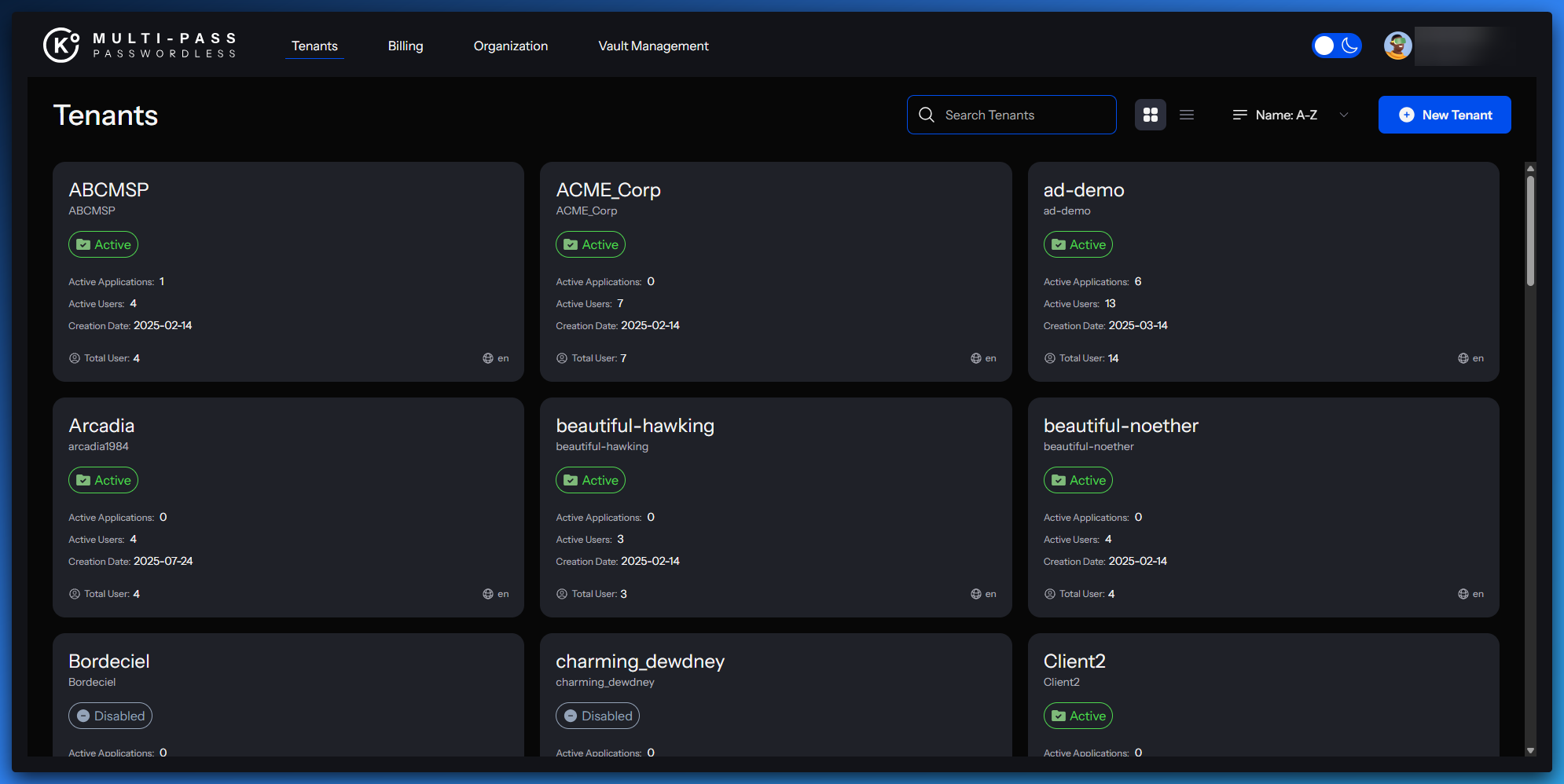

- Select the correct tenant and go to Integrations > Applications.

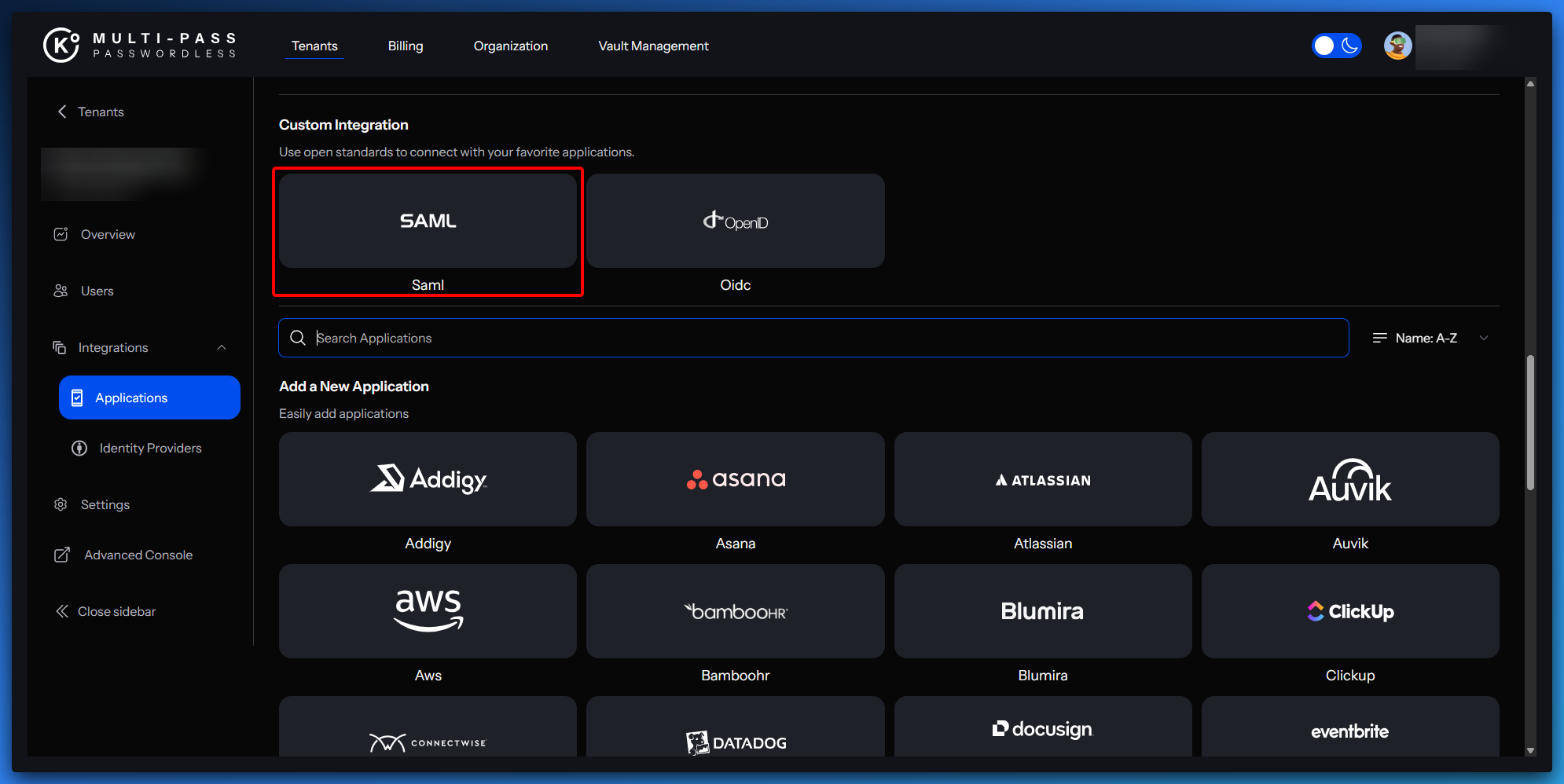

- Select SAML in the custom integration section.
- Complete the SAML setup with the following values:
IdP Setup
| Field | Value |
|---|---|
| Client ID (= SP Entity ID) | https://<COUPA_SUBDOMAIN>.coupahost.com |
| Name | coupa |
| Description | Coupa SSO integration |
| Assertion Consumer Service URL | https://<COUPA_SUBDOMAIN>.coupahost.com/sp/acs.saml2 |
| NameID Policy Format |

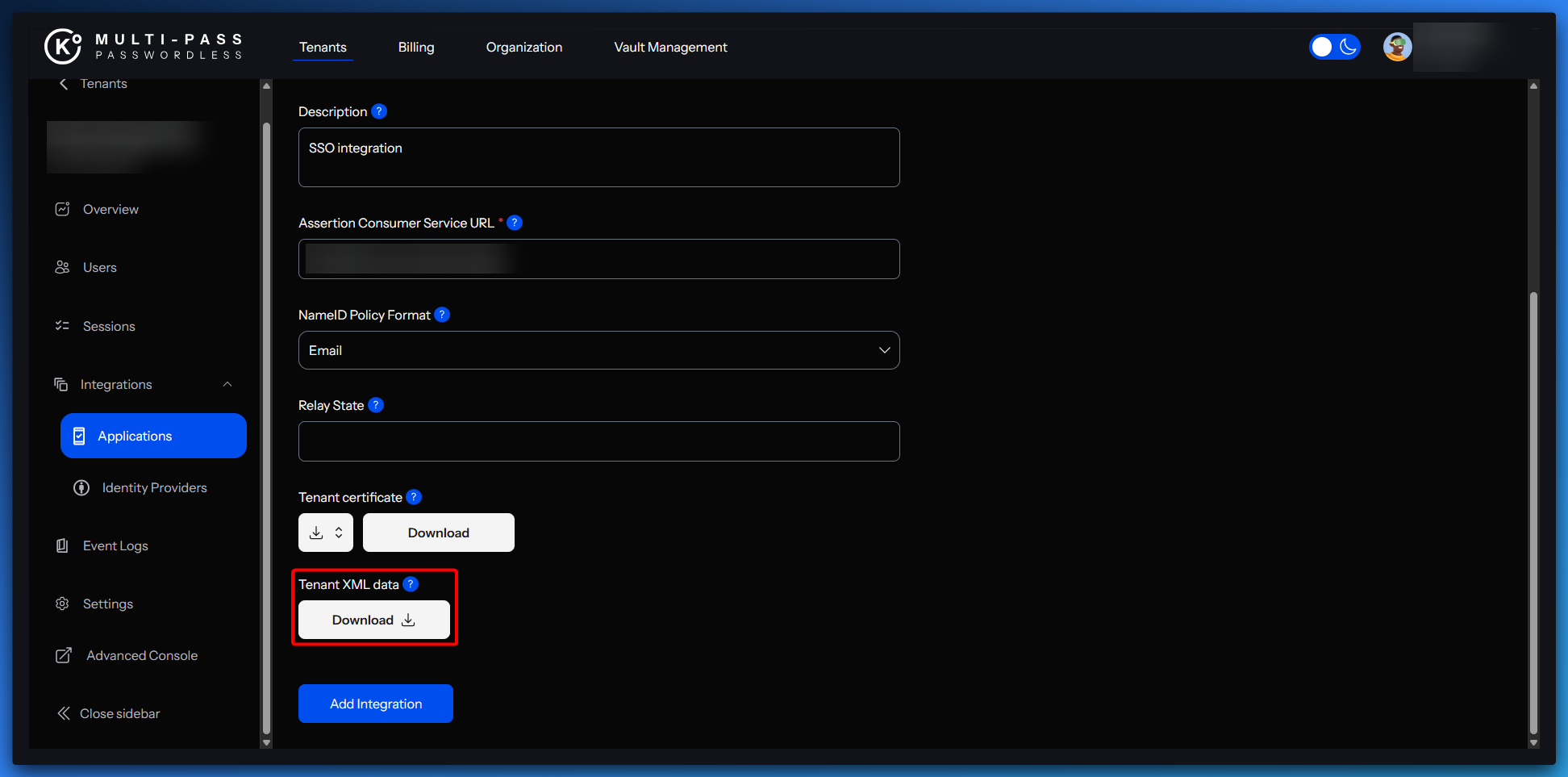

- Click Download Tenant XML Data and save the file locally.
- Click Add integration.

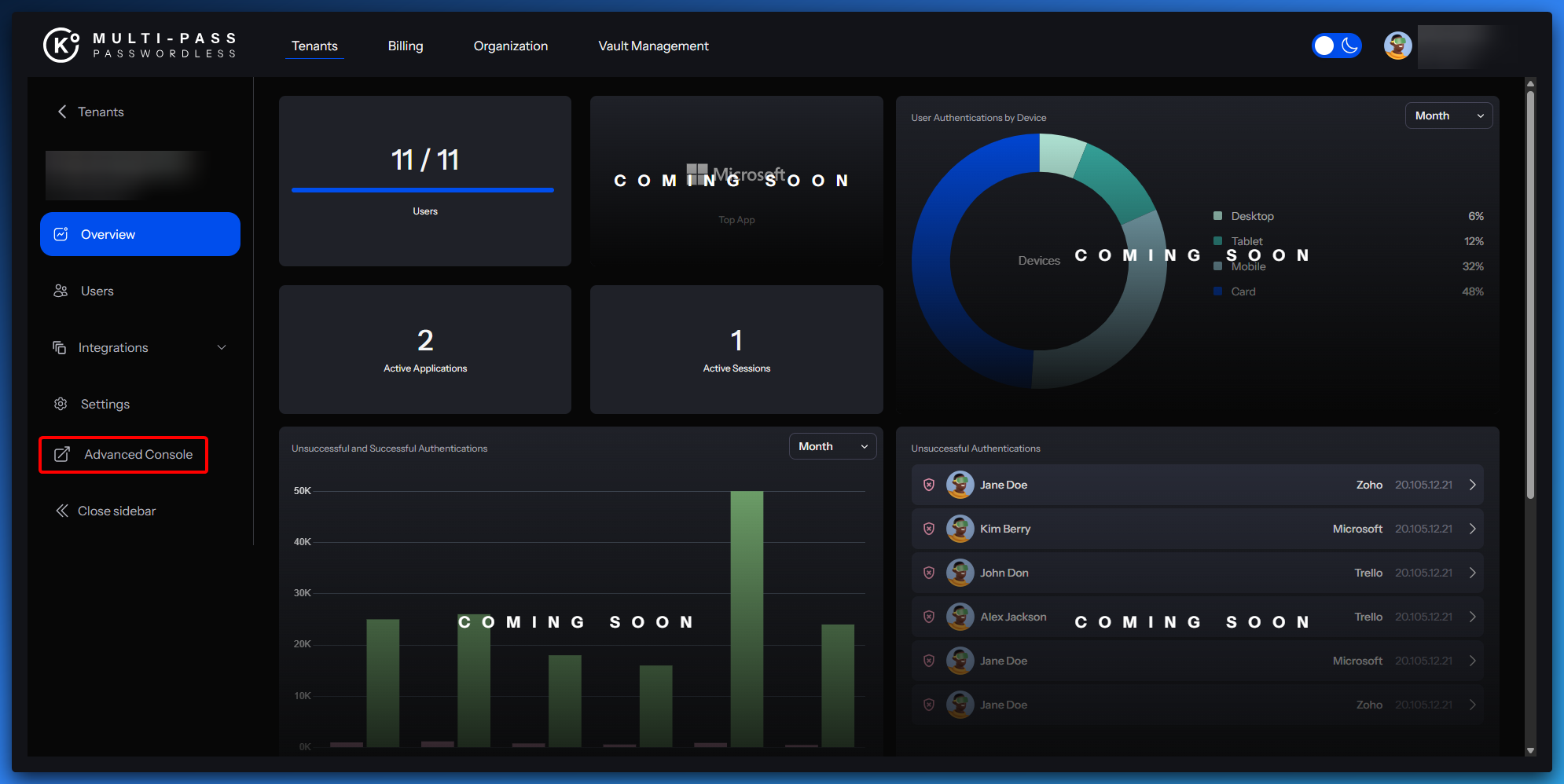

- Click Advanced Console.
- Select Clients and search for Coupa.
- Review the following configuration sections:
General settings
| Field | Value |
|---|---|
| Client ID | https://<COUPA_SUBDOMAIN>.coupahost.com |
| Name | Coupa |
| Description | Coupa SSO integration |
| Always display in UI | ON |
Access settings
| Field | Value |
|---|---|
| Home URL (IdP-initiated) | https://ca.auth.kzero.com/<TENANT_NAME>/protocol/saml/clients/<APP_NAME> |
| Valid Redirect URIs (ACS) | https://<COUPA_SUBDOMAIN>.coupahost.com/sp/acs.saml2 |
| IDP-Initiated SSO URL Name | <APP_NAME> |
SAML Capabilities
| Setting | Value |
|---|---|
| Name ID Format | |
| Force Name ID Format | ON |
| Force POST Binding | ON |
| Include AuthnStatement | ON |
Signature & Encryption
| Setting | Value |
|---|---|
| Sign Documents | ON |
| Sign Assertions | ON |
- Now that you have checked the different parameters, change to the tab called Keys.
- Make sure that both parameters are switched to OFF.
- Now go to the Advanced tab.
- The field Assertion Consumer Service POST Binding URL must equal the Valid Redirect URIs (ACS).
